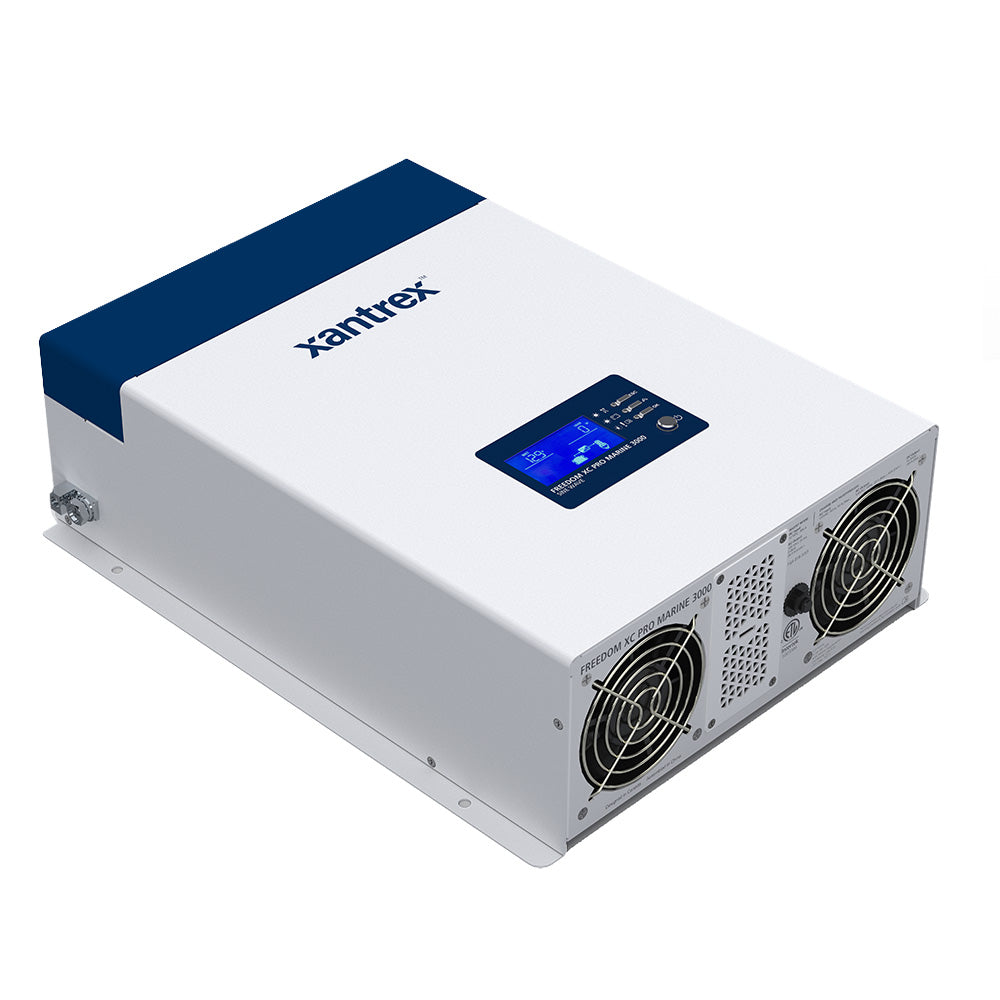

Xantrex Freedom XC PRO Marine 3000W Inverter/Charger - 12V

The Freedom XC PRO Marine 3000W Inverter/Charger - 12V is the ultimate power solution for your marine adventures. Designed specifically for the demanding environment of boats and yachts, it ensures reliable and efficient energy management, keeping your essential systems running smoothly even in the most challenging conditions.

Product Overview

The Freedom XC PRO Marine Inverter/Charger delivers true sine wave AC power, enabling the safe operation of sensitive electronics and powerful motor-driven devices on your vessel. With a built-in lithium-ion battery charger and a seamless transfer switch, this compact unit integrates effortlessly into your boat's electrical system. Monitor and configure system performance with ease using the Bluetooth app, or opt for the optional Bluetooth remote panel (#808-0817-02) for added convenience. Additionally, it features a Micro-C NMEA 2000 Connector for streamlined communication with your boat's monitoring systems.

Key Features

• Extended Surge Rating: Delivers up to 2X continuous power for 5 seconds, ensuring reliable startup for motor loads like air conditioners and refrigerators.
• True Sine Wave AC Power: Provides clean and stable power, crucial for the safe operation of sensitive electronics and motor-driven appliances.
• Ignition Control: Automatically turns the inverter on/off via a 12 VDC signal, minimizing battery drain by switching off when the ignition key is turned off.
• Wide 10-18 VDC Input Range: Guarantees reliable inverter operation on high-voltage alternators commonly found in modern marine vessels.
• Programmable AC Under-Voltage Shutdown (85-110VAC): Ideal for operating under weak shore power or generator input, protecting your system from voltage fluctuations.
• Built-in 50A AC Transfer Relay (3KW model): Detects the presence of external AC power and seamlessly transfers the load from the inverter to the incoming power source.

Built-In Charger Features

• Power Factor Corrected Multi-Stage Charging: Optimizes shore power usage when charging batteries, freeing up more AC power for running onboard appliances and preventing shore power breaker trips.
• Programmable 3-Stage Temperature Compensated Charging: Configures a tailored charging algorithm for optimal battery health, compatible with almost any battery type up to 18V.
• Battery Equalization: Enhances the lifespan of flooded batteries by ensuring balanced charging across all cells.
• Dead Battery Charging: Capable of charging from a completely discharged state down to 0 VDC, ensuring no power is wasted even with deeply discharged batteries.
• Power Share: Prioritizes AC loads by reducing charge current and maintaining total input current below the breaker setting, ensuring critical systems remain powered.
• Configurable Settings for Lithium-Ion Batteries: Easily adjust settings to accommodate various lithium-ion battery types, providing versatility for modern energy storage solutions.

Technical Specifications

Specification	Details
Inverter Power	3000W
Battery Charger	150A
Operating Temperature Range	-4°F (-20°C) to 104°F (40°C)
Input Voltage Range	10-18 VDC
AC Transfer Relay	50A (3KW model)
Communication Protocol	CANbus, NMEA 2000
Bluetooth Connectivity	Yes (optional remote panel #808-0817-02)

Support & Resources

Quick Guide: Download the Quick Guide (PDF)
