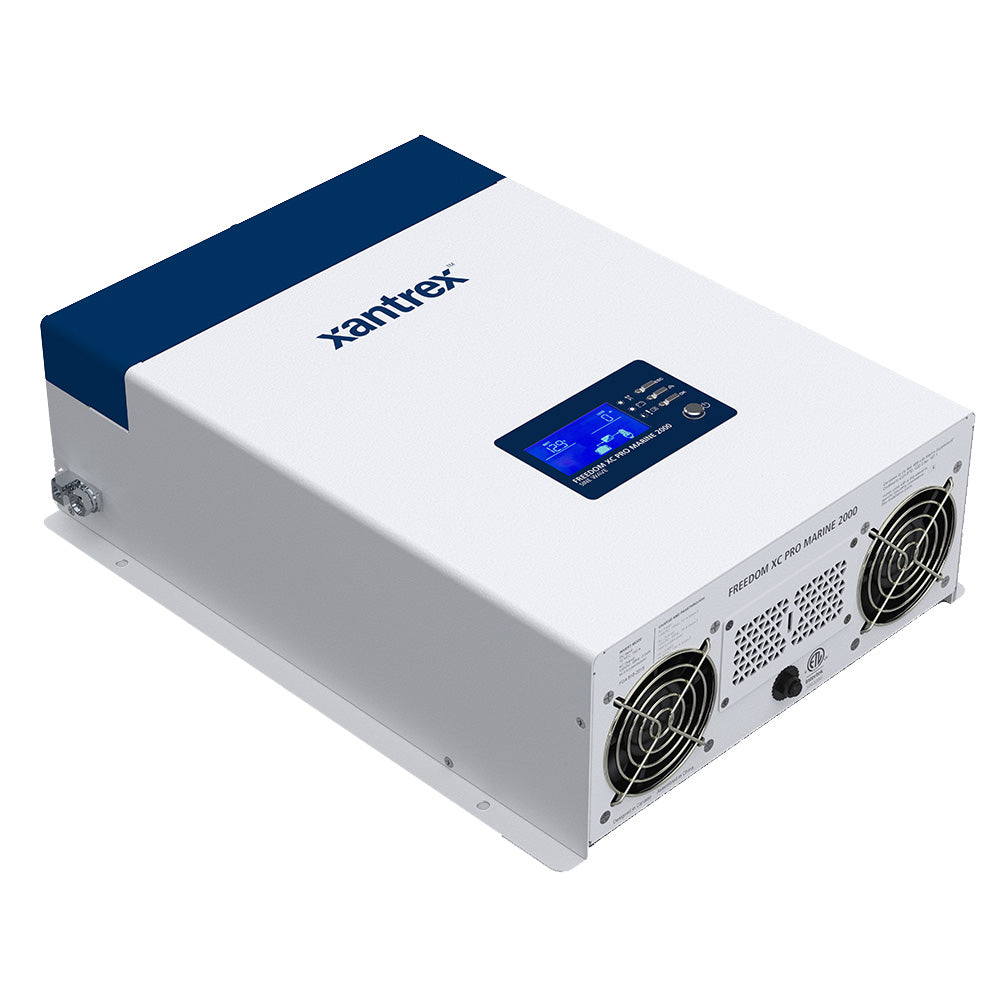

Xantrex Freedom XC PRO Marine 2000W Inverter/Charger - 12V

The Freedom XC PRO Marine 2000W Inverter/Charger is a powerful and reliable solution designed specifically for marine and boating applications. Combining a true sine wave inverter with an integrated lithium-ion battery charger and transfer switch, this compact and lightweight unit ensures seamless power management and system monitoring, making it an essential component for any marine electrical setup.

Product Overview

The Freedom XC PRO Marine inverter/charger stands out in the marine market with its support for CANbus NMEA 2000 protocol, offering unparalleled versatility and flexibility for AC power needs onboard. Whether you're cruising the seas or anchored at harbor, this inverter/charger ensures your electrical systems operate smoothly across a wide range of conditions and integrates effortlessly with third-party monitoring and control systems.

Key Features

Feature	Description
Extended Surge Rating	Handles motor loads by surging to twice the continuous power for 5 seconds, ensuring reliable startup of appliances like A/C units and refrigerators.
True Sine Wave AC Power	Delivers clean and stable power suitable for sensitive electronics and motor-driven devices, preventing damage and ensuring optimal performance.
Ignition Control	Enables automatic inverter operation based on the boat's ignition status, minimizing battery drain by turning off the inverter when the ignition is off.
Wide 10-18 VDC Input Range	Ensures compatibility with high-voltage alternators commonly found in modern marine vessels, maintaining inverter operation across varying engine loads.
Programmable AC Under-Voltage Shutdown	Automatically shuts down the inverter during weak shore power or generator input, protecting your system from unstable power sources.
Built-in 50A AC Transfer Relay (3KW Model)	Automatically switches the load from the inverter to an external AC power source when available, ensuring continuous power without manual intervention.

Advanced Charger Capabilities

• Power Factor Corrected Multi-Stage Charging: Optimizes shore power usage, allowing more AC power for onboard devices and reducing the risk of tripping shore power breakers.
• Programmable Charging: Features a configurable three-stage, temperature-compensated charging algorithm compatible with a wide range of battery types up to 18V.
• Battery Equalization: Enhances the longevity of flooded batteries by balancing charge levels across cells.
• Dead Battery Charging: Capable of charging completely discharged batteries down to 0 VDC, ensuring your system can recover from deep discharges.
• Power Share: Prioritizes critical AC loads by adjusting charge current and maintaining total input below breaker ratings.
• Configurable for Lithium-Ion Batteries: Easily adjustable settings to accommodate various lithium-ion battery configurations, providing flexibility for modern marine power systems.

Technical Specifications

Specification	2000W Model	3000W Model
Continuous Power	2000W	3000W
Surge Power	4000W for 5 seconds	6000W for 5 seconds
Battery Charger Output	100A	150A
Operating Temperature Range	-20°C to 40°C (-4°F to 104°F)	-20°C to 40°C (-4°F to 104°F)
Input Voltage Range	10-18 VDC	10-18 VDC
Transfer Relay	50A AC (Standard)	50A AC (3KW Model)

Integration and Compatibility

The Freedom XC PRO Marine inverter/charger seamlessly integrates with the Micro-C NMEA 2000 Connector, enabling robust communication within your vessel's existing marine networks. Additionally, the optional Bluetooth remote panel (# 808-0817-02) allows for real-time system monitoring and configuration through a dedicated Bluetooth app, providing convenient control and oversight directly from your mobile device.

Resources

Download the Quick Guide (PDF)
