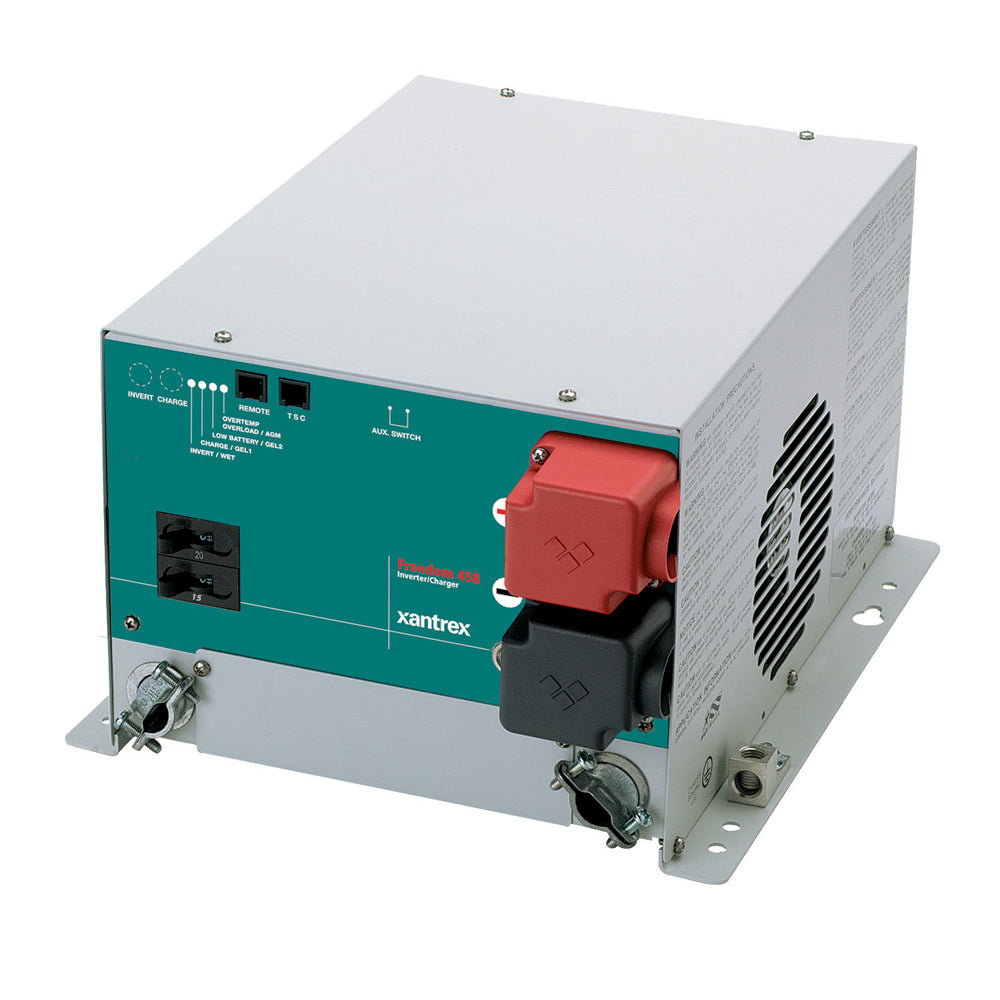

Xantrex Freedom 458 20-12 Inverter/Charger - Single Input/Dual Output

The Freedom 458 Inverter/Charger is a robust and reliable power solution designed specifically for marine and boating applications. It seamlessly integrates into your vessel's electrical system, providing clean and consistent power for all your marine equipment, appliances, and electronics. With its high surge capability and intelligent charging technology, the Freedom 458 ensures your boat's batteries are efficiently maintained and protected, keeping you powered up during your adventures on the water.

Freedom 458 Inverter/Charger Features

• Modified sine wave AC power inverter with high surge capability, perfect for running a wide range of marine equipment.
• Automatic 3-stage battery charger ensures your deep-cycle batteries are recharged quickly and efficiently.
• Temperature compensation with an equalization stage provides optimal charging for various battery types in different marine environments.
• Built-in transfer switch automatically switches between inverter power and incoming AC power from shore or generator.
• Power sharing feature prevents tripping of the source AC input circuit breaker, enhancing system reliability on board.
• Customizable settings available through the Freedom Basic Remote or Link 1000 panels for tailored performance.
• Includes a battery temperature sensor to monitor and adjust charging based on ambient conditions.
• Comes with a 30-month warranty for peace of mind during your marine journeys.

Protection Features

• Over voltage and under voltage protection to safeguard your electrical systems.
• Over-temperature protection prevents overheating in demanding marine environments.
• Overload protection ensures the inverter/charger operates within safe parameters.
• Short circuit protection to defend against electrical faults onboard.

Electrical Specifications

Inverter Specifications

Specification	Details
Continuous Output Power	2000W
Surge Power (AC Amps)	50A
Output Frequency Regulation	60Hz
Inverter Voltage Regulation	120V ±5% true RMS
Output Waveform	Modified sine wave
Efficiency (Full Load)	85%
Peak Efficiency	92%
No Load Current Draw (Idle Mode)	0.12A
AC Output Connections	Dual - 20/15 Circuit Breakers
AC Input Connections	Single
AC Transfer Switch	30A

Charger Specifications

Specification	Details
Charge Rate	100A DC
AC Input Voltage Range	90-130 VAC
Battery Voltage (Nominal)	12 VDC
Battery Voltage Range	10.0-15.5 VDC
Low Battery Cut-Out	10.0 VDC
AC Input (Max. Charge Mode)	21A AC
Bulk Charge Voltage	14.3 VDC
Float Charge Voltage	13.4 VDC
Equalize Charge Voltage	16.3 VDC
Charge Control	3-stage
Battery Type Settings	Wet / Gel 1 / Gel 2 / AGM
Equalization	Yes
Temperature Sensitive Charging	Yes

Note: Default values vary with battery type and temperature.

Specifications

• Outlet Quantity: None
• Charging Banks: 1
• Inverter Output Voltage: 120V
• Inverter Input Voltage: 12V
• Charger Input Voltage: 120V
• Inverter Continuous Output Wattage: 2000W
• Charger Output Voltage: 12V
• Charger Output Amps: 100A
• Box Dimensions: 13"H x 15"W x 19"L
• Weight: 55.7 lbs
• UPC: 647912106149

Owner's Manual (PDF)

Brochure (PDF)
