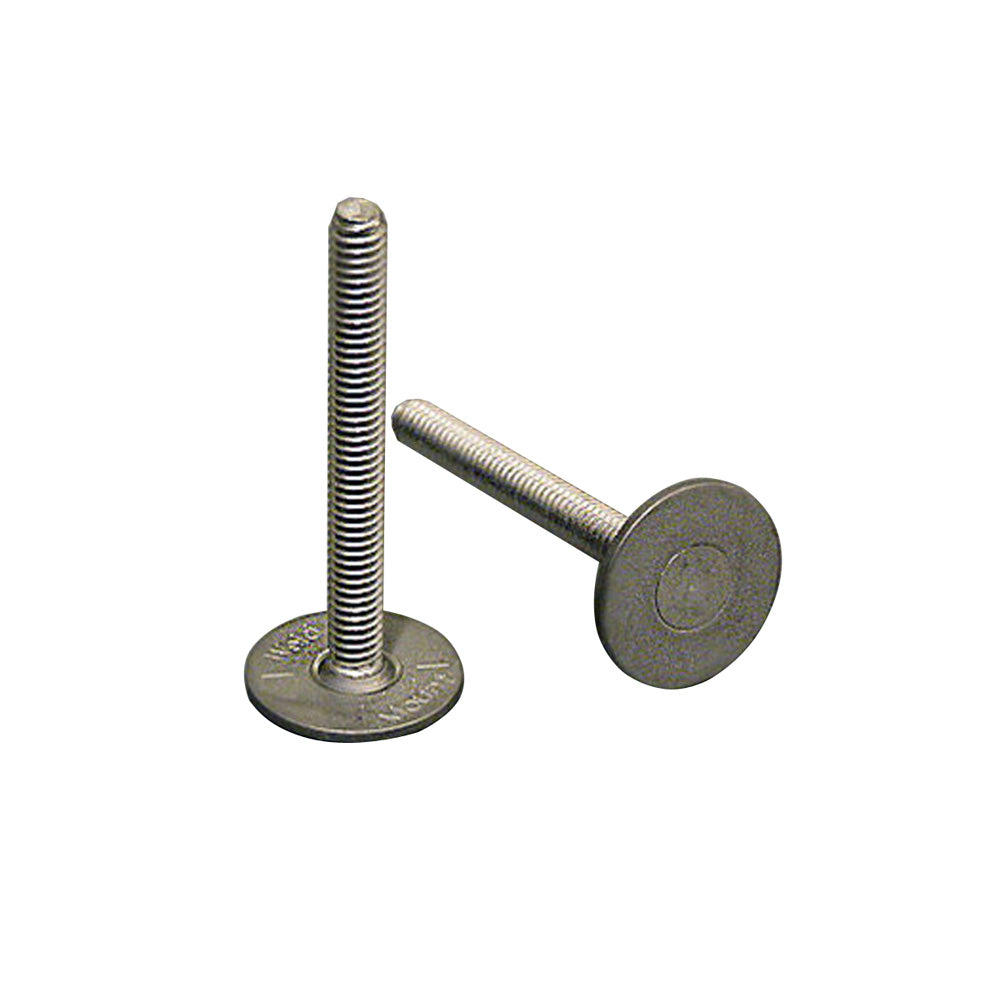

Weld Mount 1.5" Tall Stainless Panel Stud w/0.62" Base & #8 x 32 Threads - Qty. 15

Enhance the reliability and durability of your marine projects with our 1.5" Tall Stainless Steel Studs. Specifically engineered for the demanding environments of boating and marine applications, these studs provide secure and lasting connections for a variety of components on composite surfaces.

Key Features

• Material: High-quality stainless steel for superior corrosion resistance
• Thread Size: #8 x 32 for secure fastening
• Stud Height: 1.5 inches tall for ample insertion depth
• Base Plate Diameter: 0.62 inches to ensure stability
• Strength:
  • Tensile Strength: 300 lbs
  • Shear Strength: 375 lbs
  • Maximum Torque Load: 45 inch/lbs

Technical Specifications

Specification	Details
Material	Stainless Steel
Thread Size	#8 x 32
Stud Height	1.5 inches
Base Plate Diameter	0.62 inches
Tensile Strength	300 lbs
Shear Strength	375 lbs
Maximum Torque Load	45 inch/lbs

Applications

Originally designed for mounting dash panels to consoles, these stainless steel studs have expanded their use within the marine industry. Ideal for securing wire clamps, attaching instrumentation, and mounting various small components to composite surfaces on boats and yachts. Their robust construction ensures they can withstand the harsh marine environment, providing reliable performance where it’s needed most.

Installation Tips

For optimal performance, ensure the surface is clean and free from contaminants before installation. Use the appropriate tools to achieve the specified torque load, and regularly inspect the studs for any signs of wear or corrosion to maintain the integrity of your marine fittings.
