Victron Venus GX Control - No Display
Victron Venus GX Control - No Display is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

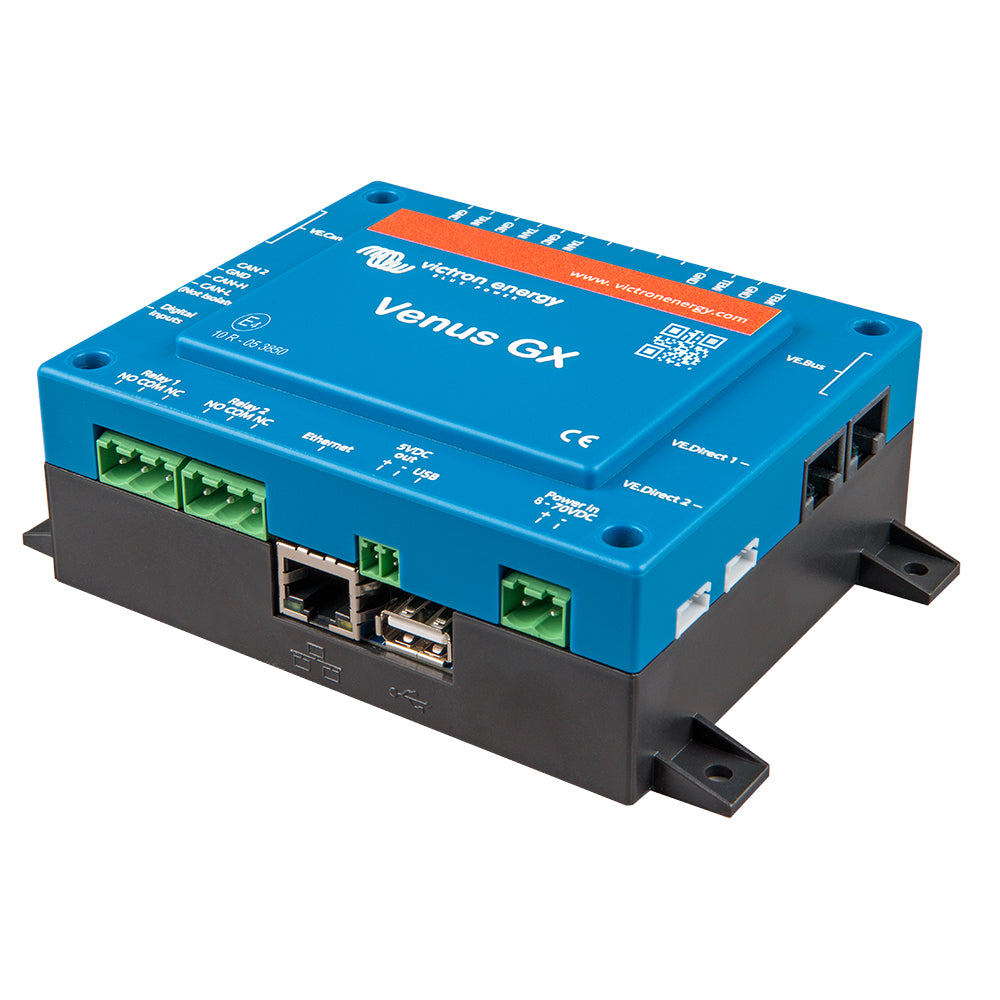

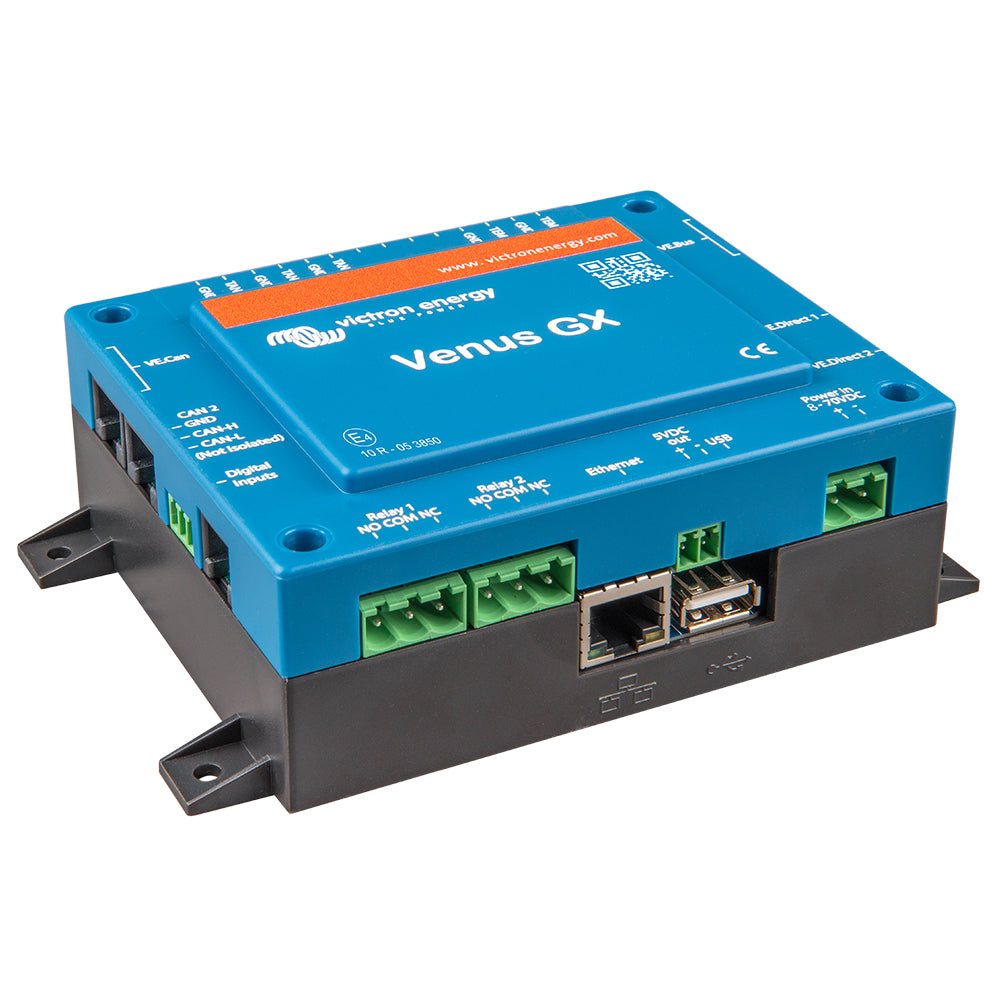

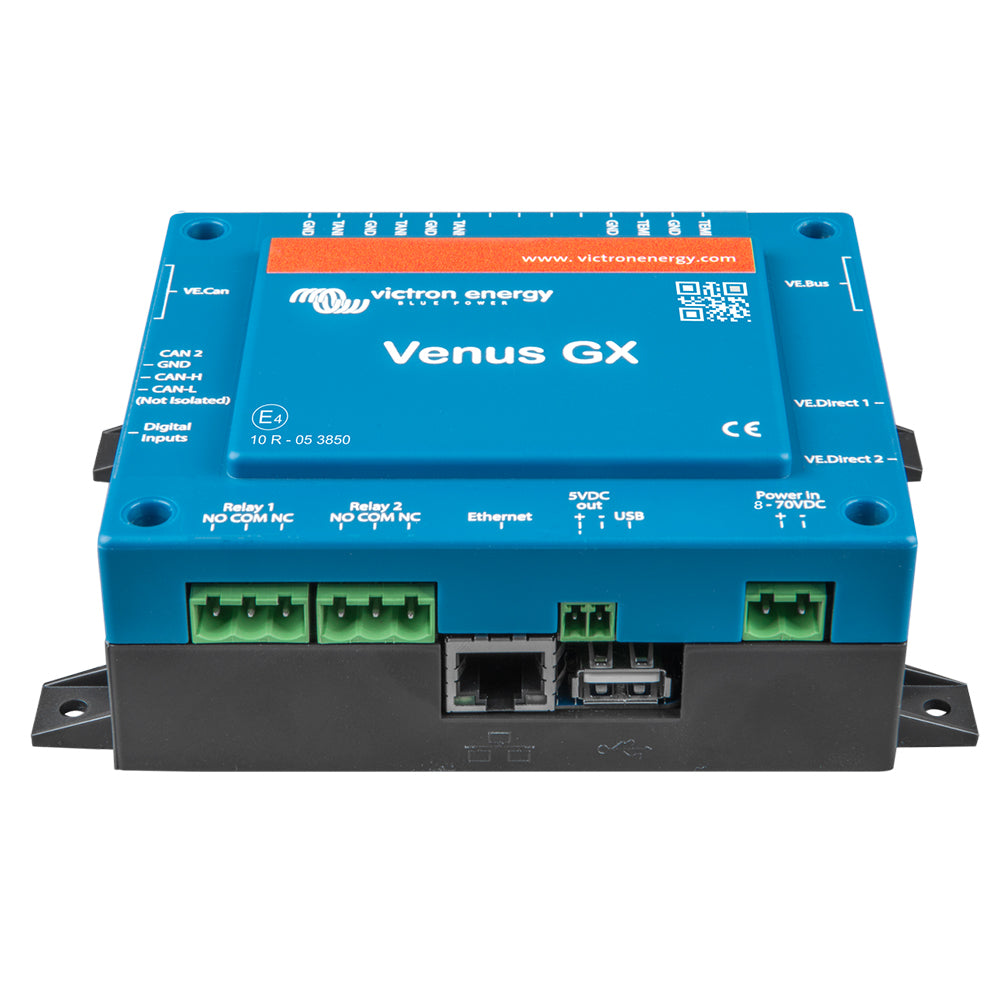

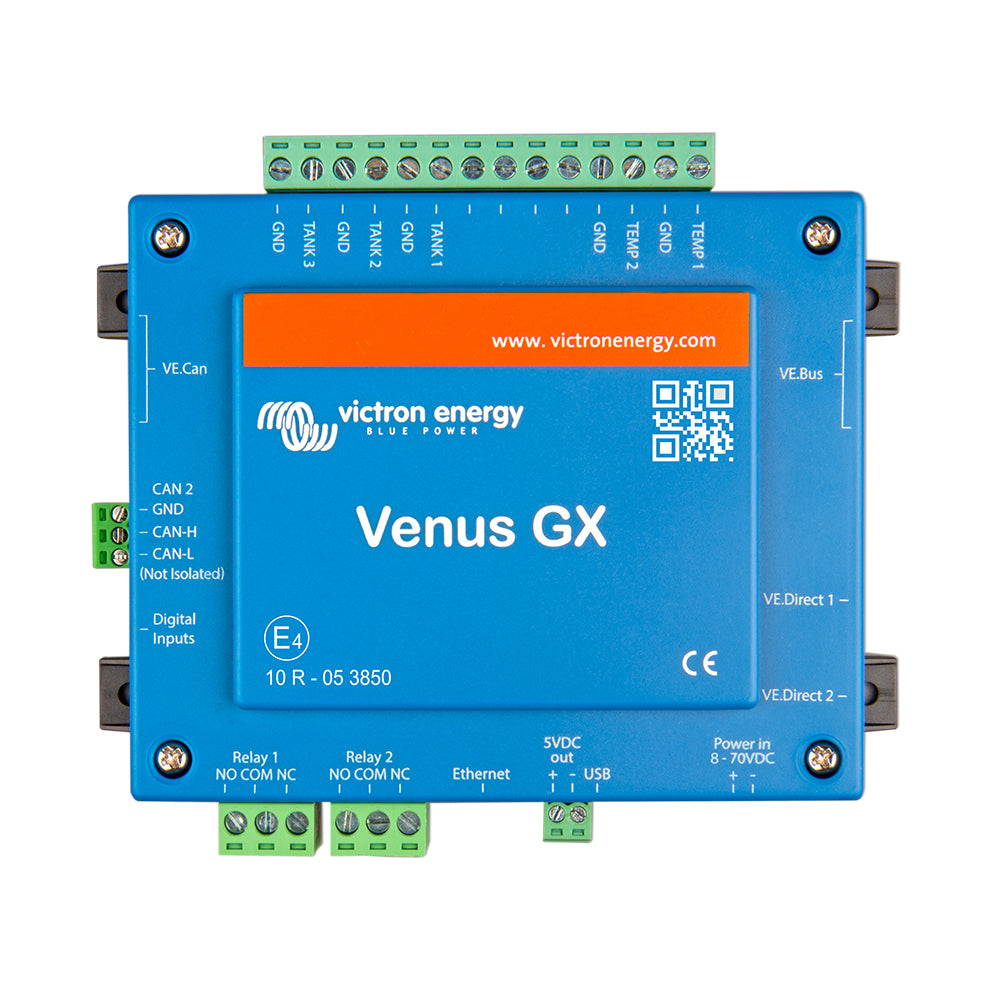

The Venus GX Control - No Display is a robust and versatile device tailored for marine and boating power systems. It offers comprehensive control and monitoring capabilities, ensuring your vessel's power setup operates efficiently and reliably.
Key Features
- Intuitive Control and Monitoring: The Venus GX seamlessly integrates with a wide range of Victron power systems, including Inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt, and more, providing unparalleled flexibility for your marine power setup.
- VRM Online Portal: All system readings are effortlessly sent to the free VRM Online Portal, Victron's remote monitoring website. Experience the portal's capabilities by trying the demo at vrm.victronenergy.com.
- Remote Console Access: Configure and monitor your Venus GX via the Remote Console, accessible through VRM, the built-in WiFi Access Point, or your local LAN/WiFi network, providing flexibility in managing your system.
- Automatic Genset Start/Stop: Customize the start and stop operations of your generator based on parameters like state of charge, voltage, and load. Define specific rules for quiet periods and schedule monthly test runs to ensure system reliability.
- Data Logging: Connected to the internet, the Venus GX transmits all data to the VRM Portal. Without an internet connection, it stores data internally for up to 48 hours, expandable via micro SD-card or USB stick for extended storage. Upload these files to VRM or convert them offline using the VictronConnect app for detailed analysis.
Supported Products
| Product | Description |
|---|---|
| Multis and Quattros | Supports split-phase and three-phase systems with monitoring and control features such as on/off and current limiting. Configuration changes are possible remotely via the internet. |
| EasySolar 1600VA | Integrates with EasySolar inverters for efficient power management. |
| BlueSolar and SmartSolar MPPT Solar Chargers | Compatible with BlueSolar MPPT 150/70, MPPT 150/85, SmartSolar MPPT 150/70, and MPPT 150/100 models via VE.Direct and VE.Can ports. When multiple units are used in parallel, all data is consolidated into a single view. For synchronizing multiple MPPT 150/70 solar chargers, refer to our blog post. |
| BMV Battery Monitors | Direct connection for BMV-700 family via VE.Direct ports and BMV-600 family with an accessory cable, enabling precise battery monitoring. |
| Lynx Ion + Shunt | Works with Lynx Ion BMS, Lynx Shunt VE.Can, and Lynx Ion + Shunt systems for advanced battery management. |
| Skylla-i Battery Chargers | Integrates Skylla-i chargers for reliable battery maintenance. |
| NMEA2000 Tank Sensors | Connect NMEA2000-compatible tank sensors to monitor fuel levels and other parameters. |
| USB GPS | Attach a USB GPS to the Venus GX, sending location data to the VRM Portal and displaying the latest position on the VRM map. |
| Fronius PV Inverters | Supports integration with Fronius photovoltaic inverters for efficient solar power management. When connecting more than two VE.Direct products, USB can be utilized to expand connectivity. |
Warranty and Support
Please contact your dealer for any returns, repairs, or support issues related to this product.
Compliance Notice
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Documentation
Video Tutorials
