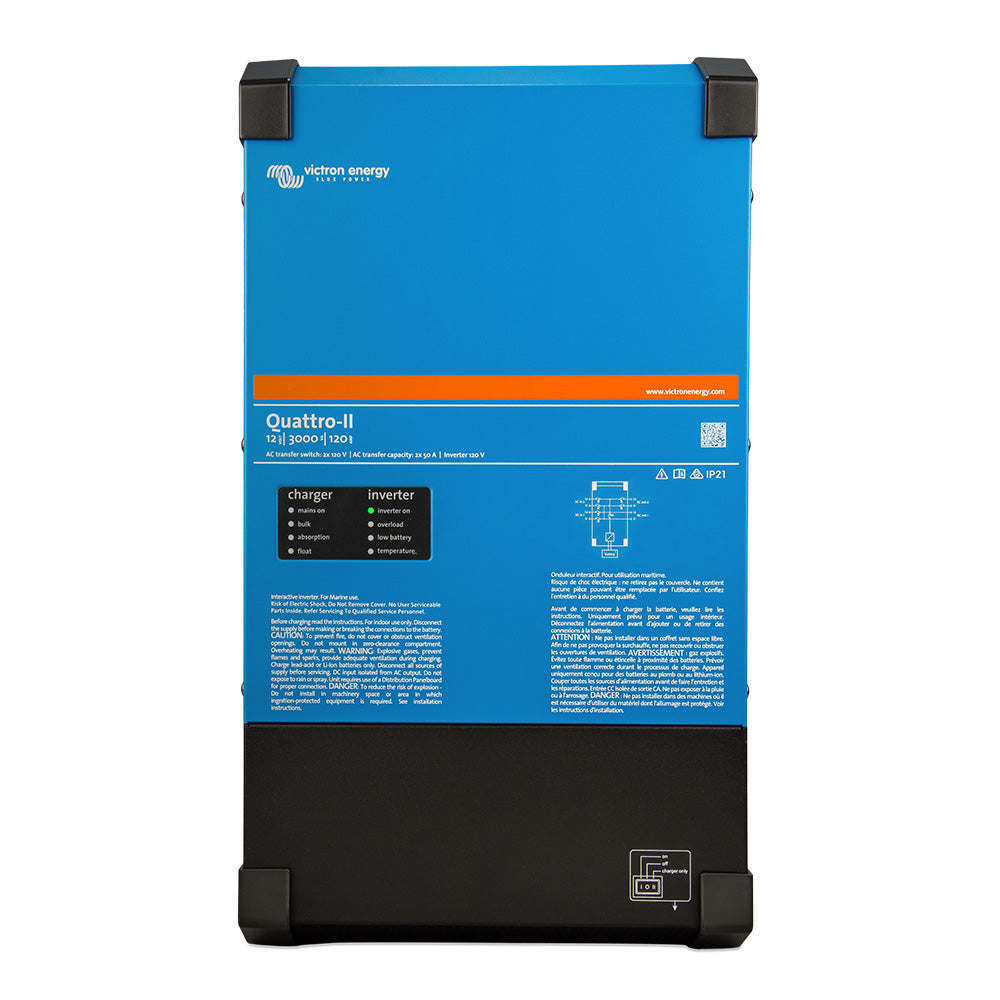

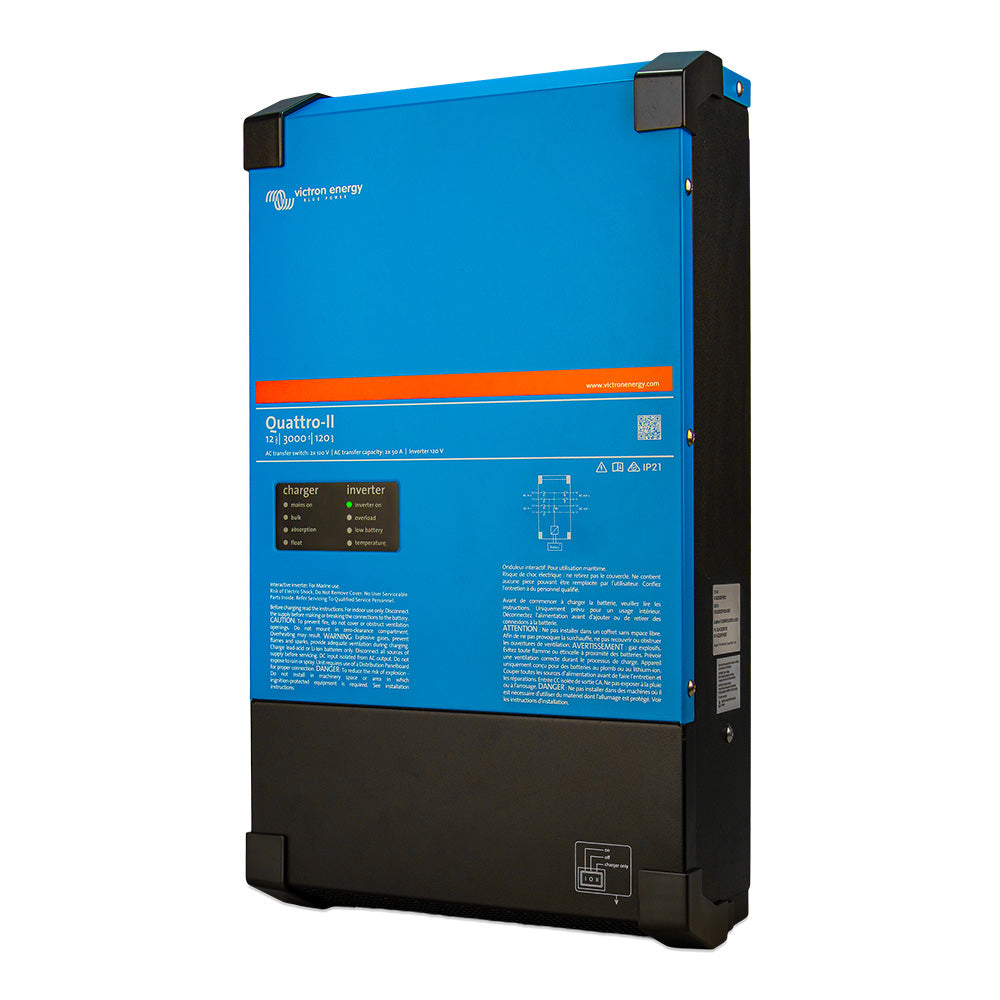

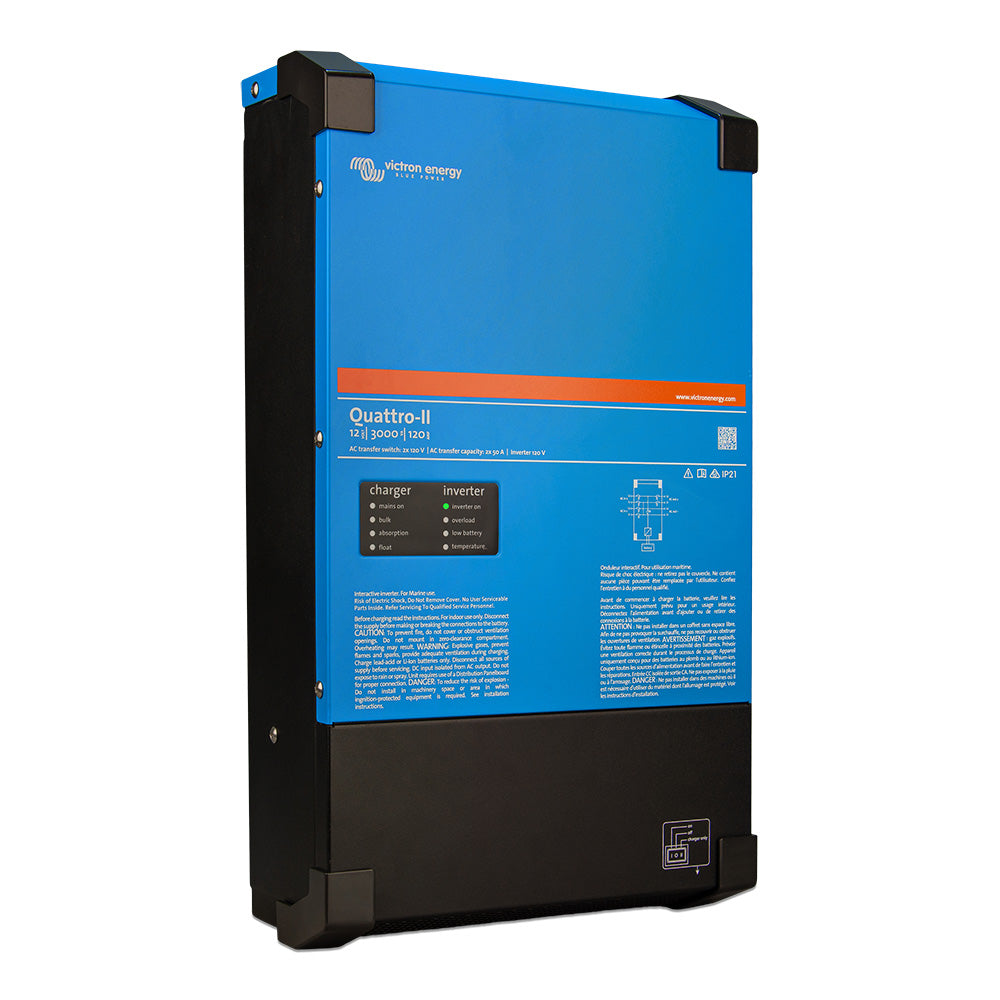

Victron Quattro-II - 12/3000 - 120-50/50 - 2X 120V

The Quattro-II - 12/3000 - 120-50/50 - 2X 120V is a versatile and robust inverter/charger tailored for marine and boating applications. Designed to handle standard North American 50A 120/240VAC split-phase systems, it ensures reliable power management on board, seamlessly integrating with multiple power sources to keep your vessel's systems running smoothly.

Advanced Power Management for Your Vessel

The Quattro-II combines an efficient inverter and a powerful charger, enabling it to manage your boat’s electrical needs with precision. Whether you’re docked or cruising, it ensures a stable power supply, protecting your sensitive electronics and heavy-duty appliances alike.

Flexible AC Input and Output Options

The Quattro-II supports dual AC inputs, allowing connections from both a split-phase 120/240V source and a single-phase 120V source. This flexibility ensures continuous power supply by automatically switching to the active source, mirroring the input to the output to maintain consistent voltage for your onboard systems.

Reliable Inverter Mode

When external AC sources are unavailable, the Quattro-II switches to inverter mode, providing a steadfast 120V single-phase output. This ensures that essential 120V loads remain powered, while 240V loads are only active when a split-phase source is present, safeguarding your battery from high-demand appliances like water heaters and air conditioners.

Enhanced Features for Optimal Performance

PowerControl and PowerAssist

Optimize the performance of your grid or generator with PowerControl and PowerAssist. Set a maximum current limit to prevent overloading your power sources. PowerControl intelligently manages battery charging using available excess power, while PowerAssist supplements peak power demands with battery energy, ensuring smooth operation without stressing your primary power sources.

Dual AC Inputs and Outputs

The ability to connect two independent AC sources, such as shore power and a generator, provides unparalleled flexibility. The Quattro-II automatically switches to the active source, maintaining uninterrupted power to your 120V loads with a transfer time of less than 18 milliseconds for L1, ensuring sensitive electronics remain operational without disruption.

Scalable Power with Parallel and Three-Phase Operation

Expand your power system by connecting up to six Quattro-II units in parallel for increased output. Additionally, configure three units for three-phase power, ideal for larger vessels requiring balanced power distribution. In multi-phase setups, L2 is disabled across all units to maintain system integrity.

Comprehensive System Monitoring and Control

On-Site Configuration

Configure and monitor your Quattro-II effortlessly using the VictronConnect app or VEConfigure software. Easily adjust settings and access system information through various interfaces including Cerbo GX, Color Control GX, laptops, Bluetooth, Battery Monitors, and Digital Multi Control Panels.

Remote Management

Stay connected to your power system no matter where you are. With a Cerbo GX or compatible GX product, you can access the Victron Remote Management (VRM) platform to monitor and adjust settings online, ensuring your vessel’s power system is always optimized.

Technical Specifications

PowerControl & PowerAssist

• Available on L1 input
• Prevents generator/grid overload

Transfer Switch

• 50 A capacity

AC Input Current

• Maximum 50A per leg

Inverter Specifications

Specification	Details
DC Input Voltage Range	9.5-17V
Output Voltage (Inverter Mode)	120 Vac ± 2%
Frequency	60 Hz ± 0.1%
Continuous Output Power (25°C)	3000 VA / 2400 W
Continuous Output Power (40°C)	2200 W
Continuous Output Power (65°C)	1700 W
Maximum Apparent Feed-in Power	2500 VA
Peak Power	5500 W
Maximum Efficiency	93%
Zero Load Power	15W
Zero Load Power (AES Mode)	10W
Zero Load Power (Search Mode)	4W

Charger Specifications

Specification	Details
AC Input	Split-phase: 180-280 Vac 45–65 Hz / Single-phase: 90-140 Vac 45–65 Hz
Charge Voltage 'Absorption'	14.4V
Charge Voltage 'Float'	13.8V
Storage Mode	13.2V
Maximum Battery Charge Current	120A
Battery Temperature Sensor	Yes

General Specifications

• Auxiliary Output: 50 A (each leg)
• External AC Current Sensor (optional): 100A
• Programmable Relay: Yes
• Protection Features: Short circuit, overload, battery voltage extremes, temperature, inverter output issues, input voltage ripple
• VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration
• General Purpose Communication Ports: 2x
• Remote On-Off Capability: Yes
• Operating Temperature Range: -40 to +65°C (-40 to 150°F), with fan-assisted cooling
• Humidity (non-condensing): Up to 95%

Enclosure Specifications

• Material & Color: Steel, blue RAL 5012
• Protection Category: IP22
• Battery Connection: 2x2 M8 bolts

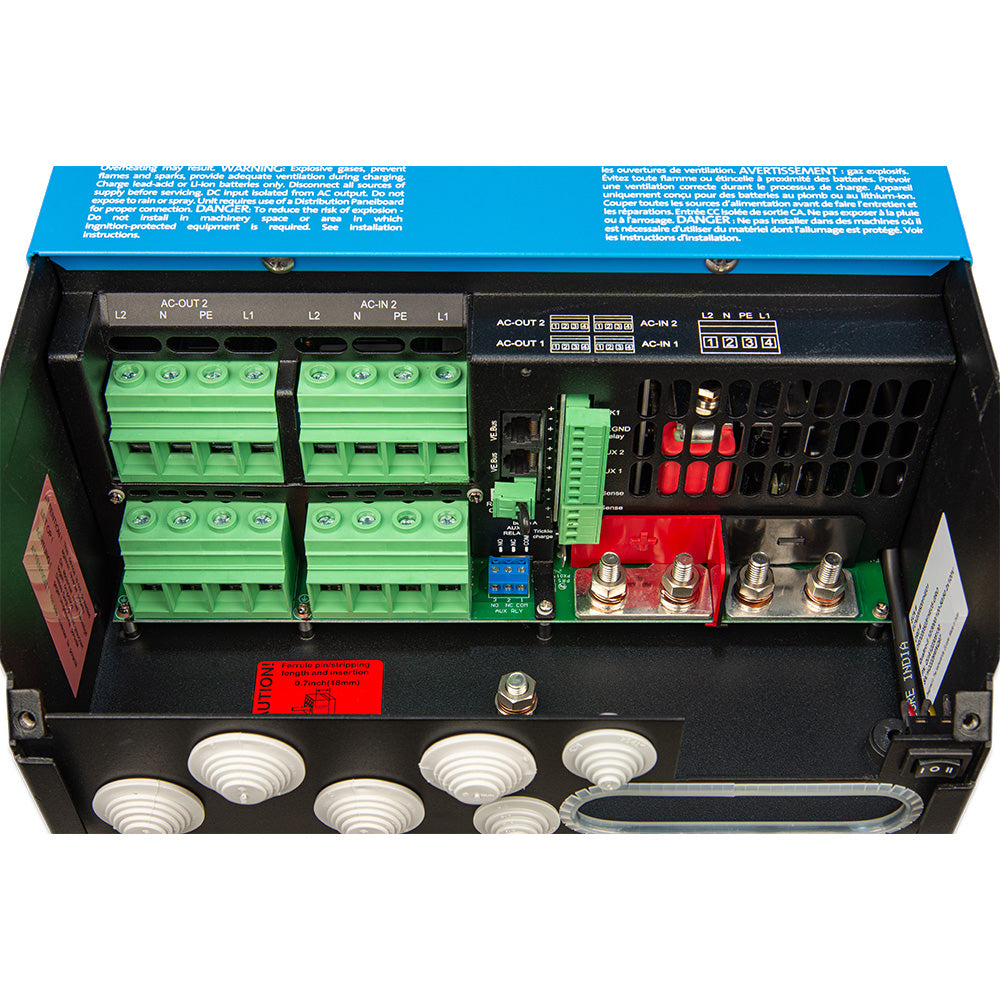

• 120/240 V AC Connection: Screw terminals 21 mm² (4 AWG)
• Weight: 32.8 kg (72.3 lbs)
• Dimensions (H×W×D): 579 x 319 x 168 mm (23 x 13 x 7 inches)

Compliance and Standards

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
• Emission & Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Adjustable to 50 Hz
• Protection Features: Output short circuit, overload, battery voltage too high/low, temperature too high, 120Vac on inverter output, input voltage ripple too high
• Non-linear Load Support: Crest factor 3:1
• Operating Conditions: Up to 75°F (25°C) ambient temperature
• Automatic Shutdown: When no external AC source is available
• Programmable Relay: AC rating: 120 Vac / 4 A; DC rating: 4 A up to 35 Vdc, 1 A up to 60 Vdc
• Compatible with Lithium Battery BMS for communication

Additional Specifications

Specification	Details
Inverter Input Voltage	9.5-17V
Inverter Output Voltage	120V
Box Dimensions	11"H x 17"W x 27"L
Weight	60 lbs
UPC	8719076057369

Please contact your dealer for any returns, repairs, or support issues related to this product.

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
