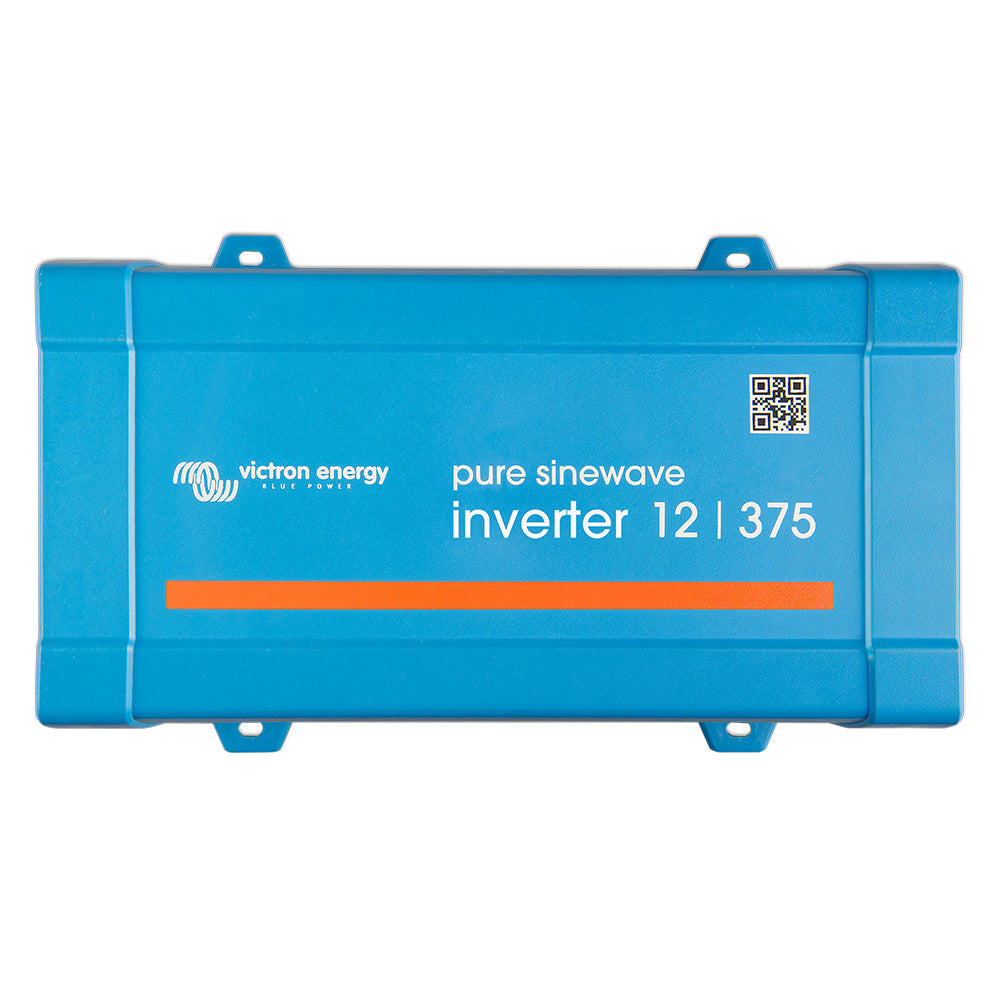

Victron Phoenix Inverter 12/375 - 120V - VE.Direct GFCI Duplex Outlet - 300W

The Phoenix Inverter 12/375 is a reliable and efficient power solution designed specifically for marine and boating applications. With its robust VE.Direct communication capabilities, GFCI duplex outlet, and high start-up power, this inverter ensures that your onboard electrical equipment runs smoothly and safely.

Key Features

VE.Direct Communication Port

The Phoenix Inverter is equipped with a VE.Direct port, allowing seamless connection to various devices for monitoring and configuration:

• Connect to a computer using a VE.Direct to USB interface cable
• Pair with Apple and Android smartphones, tablets, MacBooks, and other compatible devices via a VE.Direct Bluetooth Smart dongle

Fully Configurable Settings

Customize your inverter settings to match your specific power requirements:

• Adjust low battery voltage alarm trip and reset levels
• Set low battery voltage cut-off and restart levels
• Enable dynamic cut-off for load-dependent shutdown
• Adjust output voltage between 210V - 245V
• Select frequency: 50 Hz or 60 Hz
• Toggle ECO mode on/off and set ECO mode sense level

Comprehensive Monitoring

Stay informed about your power system's status with real-time monitoring:

• Track in- and output voltage
• Monitor percentage of load usage
• Receive alarm notifications for any irregularities

Proven Reliability

Built with a full bridge plus toroidal transformer topology, the Phoenix Inverter offers dependable performance in demanding marine environments. It is short-circuit proof and protected against overheating from overloads or high ambient temperatures.

High Start-Up Power

Capable of handling high inrush currents, the inverter can easily start devices such as power converters for LED lamps, halogen lamps, and electric tools.

ECO Mode

Optimize power usage with ECO mode, which switches the inverter to standby when the load falls below a preset value (minimum load: 15W). In standby, the inverter periodically checks the load and activates when needed, ensuring energy efficiency without compromising power availability.

Remote On/Off Control

Easily manage your inverter with a remote on/off switch, which can be connected to a two-pole connector or between the battery positive and the left-hand contact of the two-pole connector.

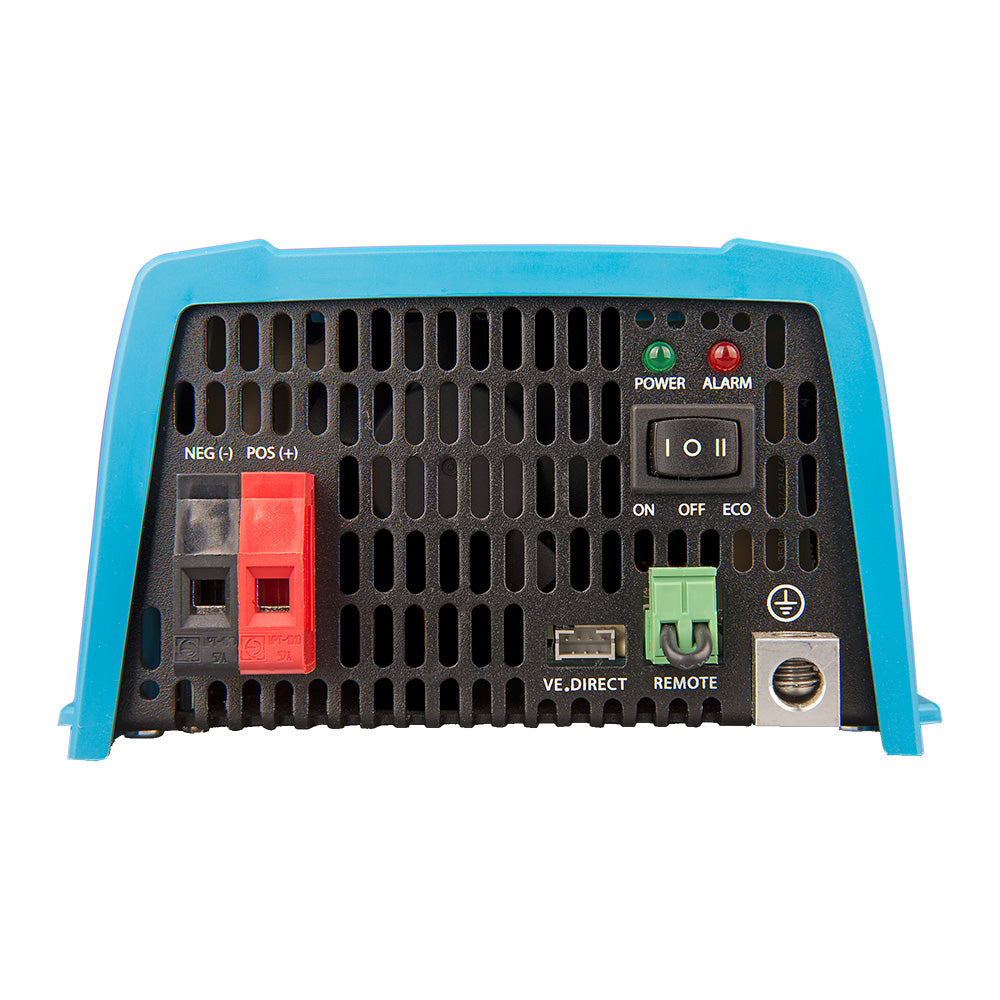

LED Diagnosis

Utilize the LED indicators for quick and easy troubleshooting. Please refer to the manual for detailed descriptions of the LED diagnostic codes.

Automatic Transfer Switch

Ensure uninterrupted power supply by integrating the Filax Automatic Transfer Switch, recommended for Victron’s low-power inverters. With a switchover time of less than 20 milliseconds, your sensitive electronic equipment remains operational without disruption.

Specifications

Inverter Specifications

Feature	Details
Continuous Power at 25°C	375VA
Continuous Power at 25°C / 40°C	300W / 260W
Peak Power	700W
Output AC Voltage / Frequency	230VAC or 120VAC ±3%, 50Hz or 60Hz ±0.1%
Input Voltage Range	9.2 - 17V / 18.4 - 34.0V / 36.8 - 62.0V
DC Low Shut Down (adjustable)	9.3V / 18.6V / 37.2V
Dynamic DC Low Shut Down	Fully configurable dynamic cut-off
DC Low Restart & Alarm (adjustable)	10.9V / 21.8V / 43.6V
Battery Charged Detect (adjustable)	14.0V / 28.0V / 56.0V
Max. Efficiency	89% / 89% / 90%
Zero-Load Power	5.6W / 6.1W / 8.5W
Default Zero-Load Power in ECO Mode	0.9W / 1.4W / 2.6W
ECO Mode Stop & Start Power Setting	Adjustable
Protection	Short circuit, overload, battery voltage too high/low, temperature too high, DC ripple too high
Operating Temperature Range	-40°C to +65°C (fan-assisted cooling)

Enclosure Specifications

Feature	Details
Material & Color	Steel chassis and blue plastic cover (RAL 5012)
Battery Connection	Screw terminals
Maximum Cable Cross-Section	10mm² / AWG8
Standard AC Outlets	230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112) 120V: Nema 5-15R, GFCI
Protection Category	IP 21
Weight	3.0kg / 6.6lbs
Dimensions (H x W x D)	86 x 165 x 260 mm / 3.4 x 6.5 x 10.2 inches

Additional Specifications

• GFCI: Yes
• Box Dimensions: 7"H x 10"W x 13"L
• Weight: 9.1 lbs
• UPC: 8719076050209

Accessories

• Remote On/Off Switch
• Filax Automatic Transfer Switch

Compliance & Standards

• Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
• EMC: EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Automotive Directive ECE R10-4:
  1. Nonlinear load, crest factor 3:1
  2. Protection key:
     • Output short circuit
     • Overload
     • Battery voltage too high
     • Battery voltage too low
     • Temperature too high
     • DC ripple too high

Support

Please contact your dealer for any returns, repairs, or support issues related to this product.

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
