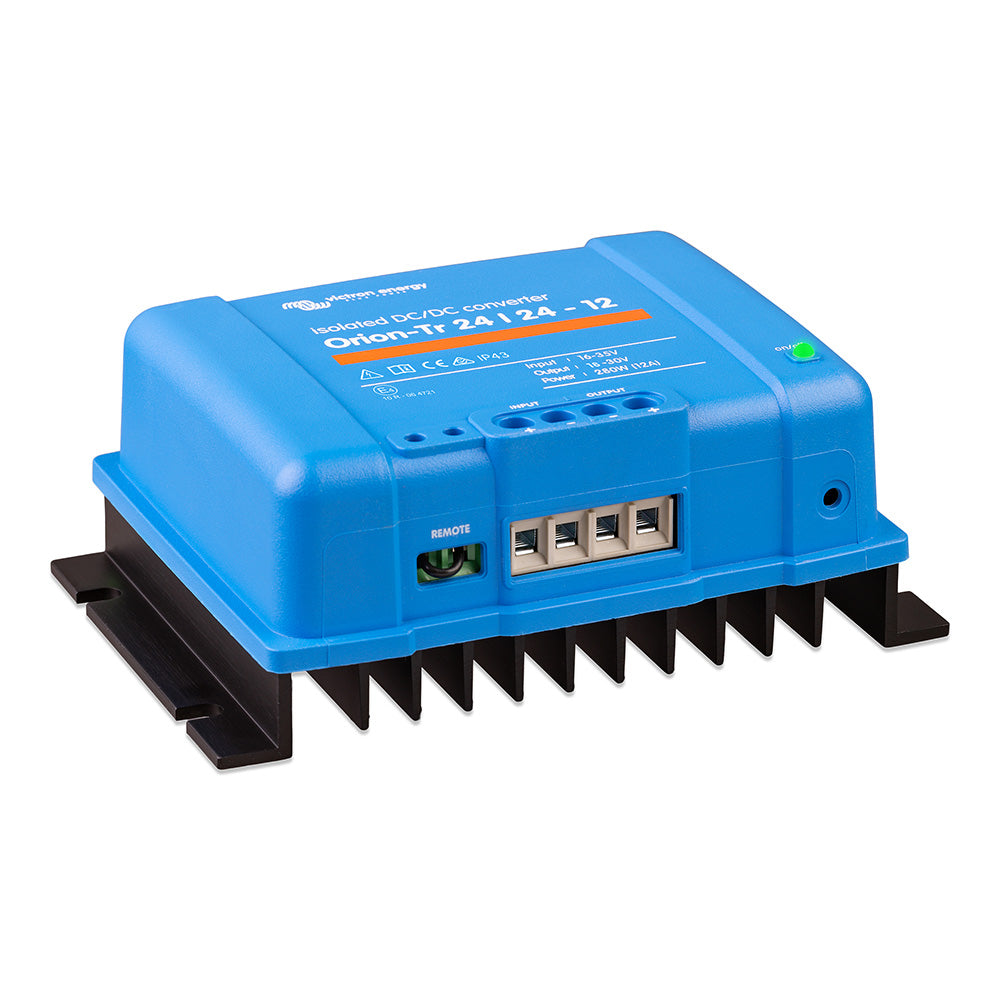

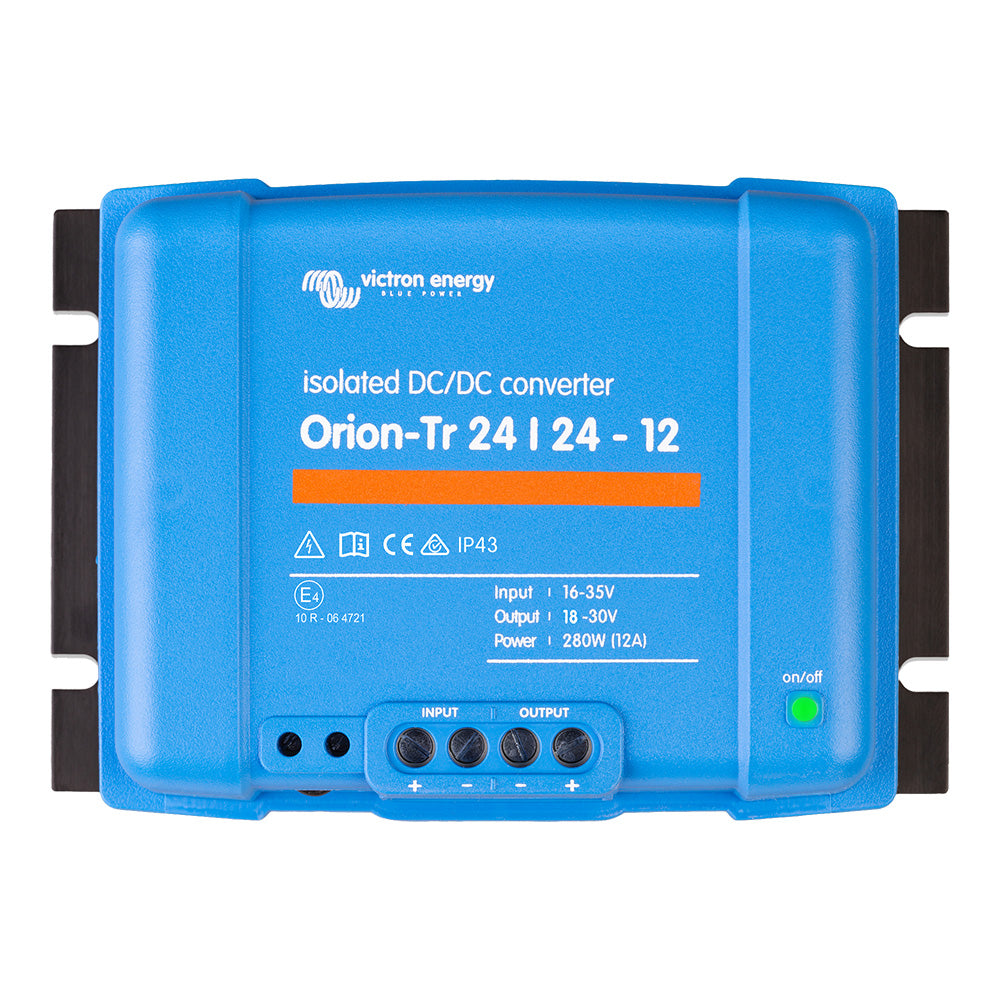

Victron Orion-TR DC-DC Converter - 24 VDC to 24 VDC - 280W - 12AMP Isolated
Victron Orion-TR DC-DC Converter - 24 VDC to 24 VDC - 280W - 12AMP Isolated is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Orion-TR 24/24-12A (280W) Isolated DC-DC Converter is a reliable power solution tailored for marine and boating applications. Designed to efficiently manage your vessel's electrical systems, this converter ensures stable voltage regulation and enhanced safety features essential for the demanding marine environment.
Key Features
Isolated Model
Designed with separate input and output (-) leads, the isolated model ensures maximum safety and prevents electrical interference, making it ideal for marine settings where reliability is paramount.
Remote On/Off Terminal
The remote on/off terminal eliminates the need for a high current switch in the input wiring. Easily control the converter using a low power switch or integrate it with your boat's engine run/stop switch for seamless operation.
Short Circuit Proof and Paralleling Capability
All models are short circuit proof and can be connected in parallel to increase output current. This flexibility allows you to scale your power setup without compromising on safety or performance.
High Temperature Protection
Built to withstand high ambient temperatures, the converter automatically reduces output current to prevent overheating, ensuring consistent performance even in challenging marine environments.
IP43 Protection
With an IP43 rating, the converter is protected against solid objects larger than 1mm and water sprays from any direction when installed with the screw terminals facing downward.
Screw Terminals
Installation is straightforward with screw terminals, eliminating the need for special tools and ensuring secure electrical connections essential for marine applications.
Input Fuse Protection
Equipped with an input fuse on 12V and 24V models, the converter provides an additional layer of safety. Please note that the fuse is not replaceable.
Adjustable Output Voltage
Customize the output voltage within a range of 20-30V to suit your specific needs. While it's not intended for battery charging, consider the Orion-Tr Smart model for such applications.
Specifications
| Parameter | Details |
|---|---|
| Input Voltage Range | 16-35 V |
| Under Voltage Shut Down | 14 V |
| Under Voltage Restart | 15 V |
| Nominal Output Voltage | 24.2 V |
| Output Voltage Adjust Range | 20-30 V |
| Output Voltage Tolerance | ±0.2 V |
| Output Noise | 2 mV rms |
| Continuous Output Current at Nominal Output Voltage and 40°C | 12 A |
| Maximum Output Current (10 S) at Nominal Output Voltage | 15 A |
| Short Circuit Output Current | 30 A |
| Continuous Output Power at 25°C | 320 W |
| Continuous Output Power at 40°C | 280 W |
| Efficiency | 89% |
| No Load Input Current (2) | < 80 mA |
| Galvanic Isolation | 200 VDC between input, output, and case |
| Operating Temperature Range | -20 to +55°C (derate 3% per °C above 40°C) |
| Humidity | Max. 95% non-condensing |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 16 mm² AWG6 |
| Weight | 1.3 kg (3 lb) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 in) |
| Safety Standards | EN 60950 |
| Immunity Standards | EN 61000-6-3, EN 61000-6-1, EN 55014-2 |
| Automotive Directive Standards | ECE R10-5 |
