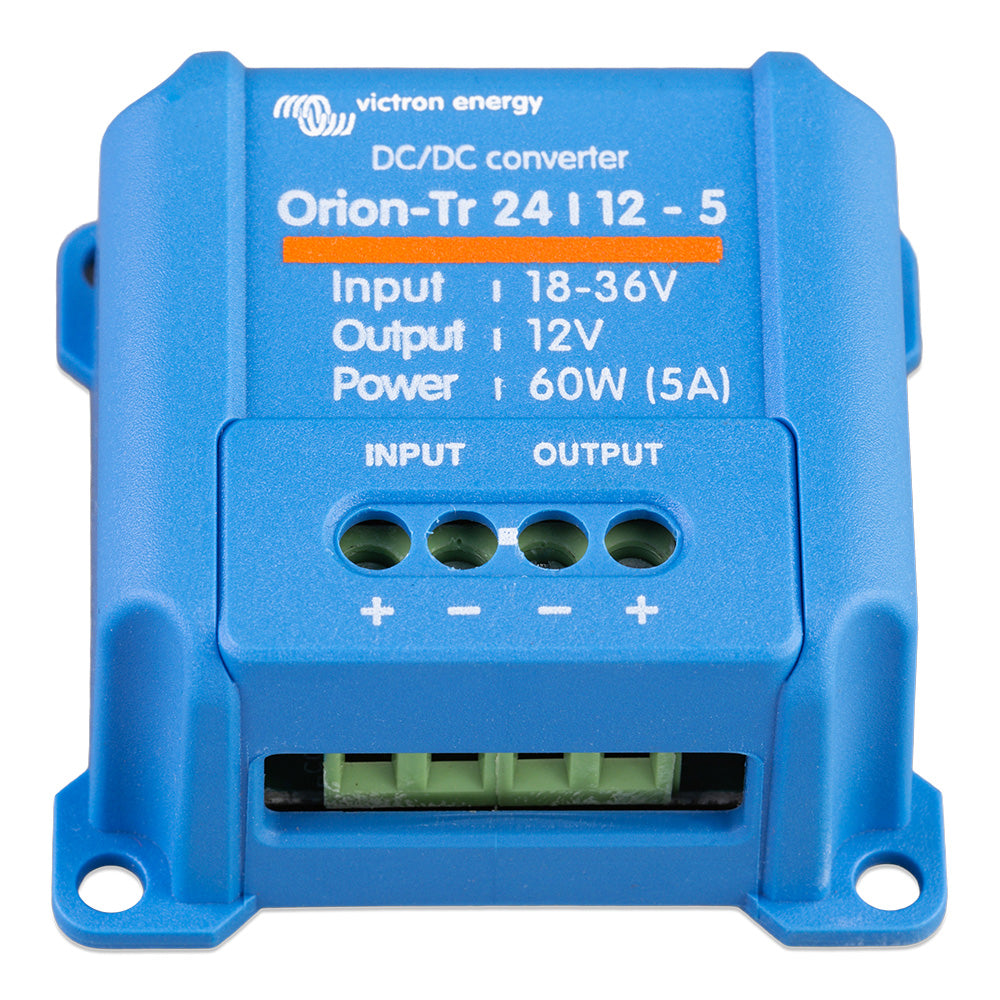

Victron Orion-Tr 24/12-5 (60W) DC-DC

The Orion-Tr 24/12-5 (60W) DC-DC converter is engineered specifically for marine and boating applications, providing reliable and efficient power conversion to keep your vessel's electrical systems running smoothly. Whether you're upgrading your current setup or installing a new system, this converter ensures optimal performance and durability in demanding marine environments.

Key Features

• High Efficiency: Utilizes synchronous rectification to achieve full load efficiencies exceeding 95%, ensuring minimal power loss and maximum performance for your onboard systems.
• IP43 Protection: Designed with an IP43 rating when installed with screw terminals oriented downwards, offering protection against dust ingress and water spray, ideal for the harsh conditions at sea.
• Easy Installation: Equipped with screw terminals that require no special tools, simplifying the installation process and allowing for quick and secure connections.

Technical Specifications

Specification	Details
Model	Orion-Tr 24/12-5 (60W) DC-DC
Power Output	60 Watts
Input Voltage	24V DC
Output Voltage	12V DC
Efficiency	>95% at full load
Protection Rating	IP43
Installation	Screw terminals oriented downwards

Installation Instructions

The Orion-Tr 24/12-5 (60W) DC-DC converter is designed for straightforward installation. Follow these steps to ensure a secure and efficient setup:

1. Mounting: Secure the converter in a dry and ventilated area on your vessel, ensuring that the screw terminals are oriented downwards to maintain the IP43 protection rating.
2. Wiring: Connect the input and output wires to the screw terminals without the need for special tools. Ensure all connections are tight and free from corrosion.
3. Testing: After installation, verify the output voltage to ensure the converter is functioning correctly and providing the necessary power to your systems.

Support and Documentation

For any returns, repairs, or support issues related to the Orion-Tr 24/12-5 (60W) DC-DC converter, please contact your authorized dealer.

For detailed installation instructions and maintenance guidelines, refer to the Owner's Manual (PDF).
