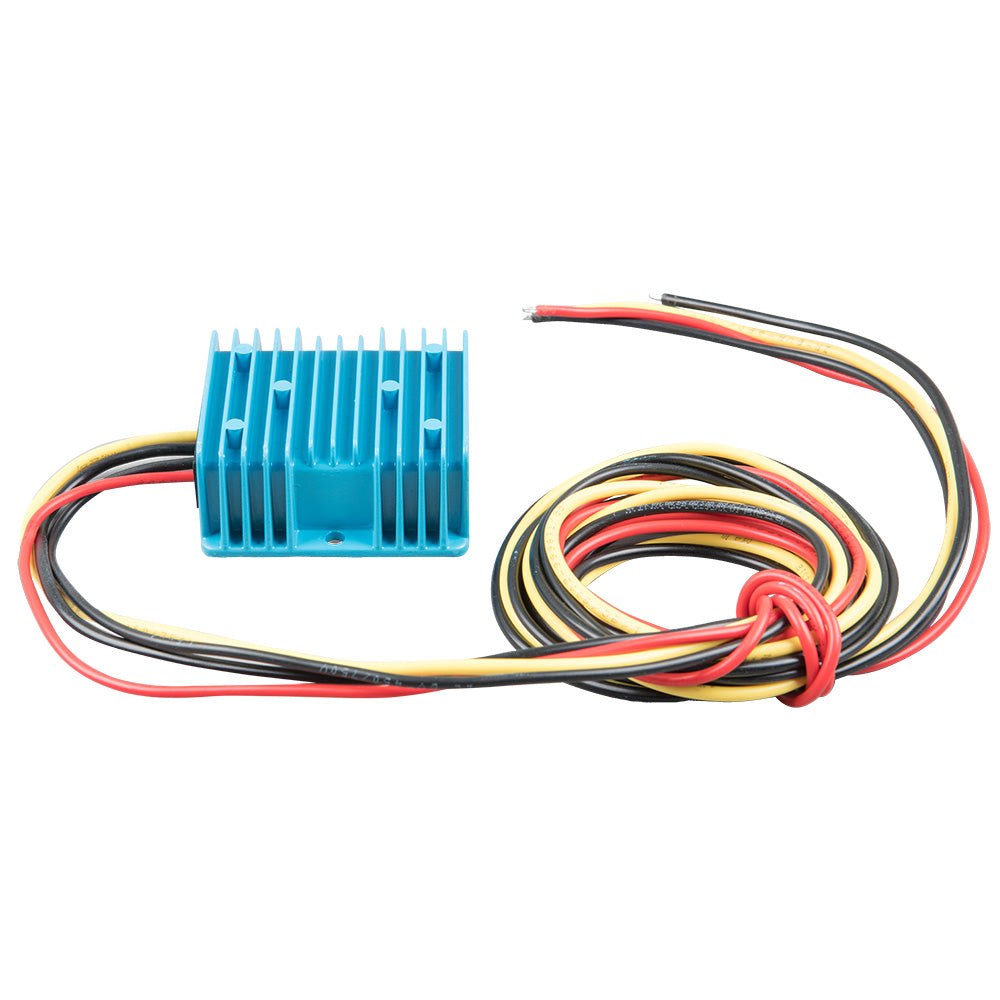

Victron Orion IP67 24/12-10A (120W)

The Orion IP67 24/12-10A (120W) DC-DC Converter is specifically engineered for marine and boating applications, providing robust and reliable power conversion even in the most demanding conditions. Its rugged design ensures optimal performance, safeguarding your vessel's electrical systems from the harsh marine environment.

Key Features

• IP67 Rated: Completely waterproof, allowing for submerged installation without compromising functionality.
• Shockproof Construction: Designed to withstand vibrations and impacts common in marine settings.
• Ignition Protected: Safe to use in environments where explosive gases may be present.
• Durable Materials: Cast aluminum casing and resin-molded electronics for maximum protection against water, oil, and dirt.
• High Efficiency: Ensures minimal energy loss, providing reliable power conversion at 120W.

Technical Specifications

Parameter	Specification
Input Voltage	24V DC
Output Voltage	12V DC
Maximum Output Current	10A
Power Rating	120W
Protection Features	Overvoltage, Overcurrent, Short Circuit Protection
Operating Temperature	-20°C to +60°C

Installation Instructions

Installing the Orion IP67 DC-DC Converter on your vessel is straightforward. Follow these steps:

1. Ensure the power source is disconnected before installation.
2. Mount the converter in a dry, secure location, preferably away from direct water spray.
3. Connect the input wires to the 24V DC power source.
4. Connect the output wires to your 12V DC system.
5. Secure all connections and verify polarity to prevent damage.
6. Reconnect the power source and test the converter’s functionality.

Why Choose Orion IP67 DC-DC Converter?

Marine environments demand equipment that can endure moisture, vibrations, and temperature fluctuations. The Orion IP67 converter combines durability with high performance, ensuring that your boat’s electrical systems are powered reliably. Its compact design and robust protection features make it an ideal choice for both recreational and commercial marine applications.

Owner's Manual

Download the Owner's Manual (PDF)
