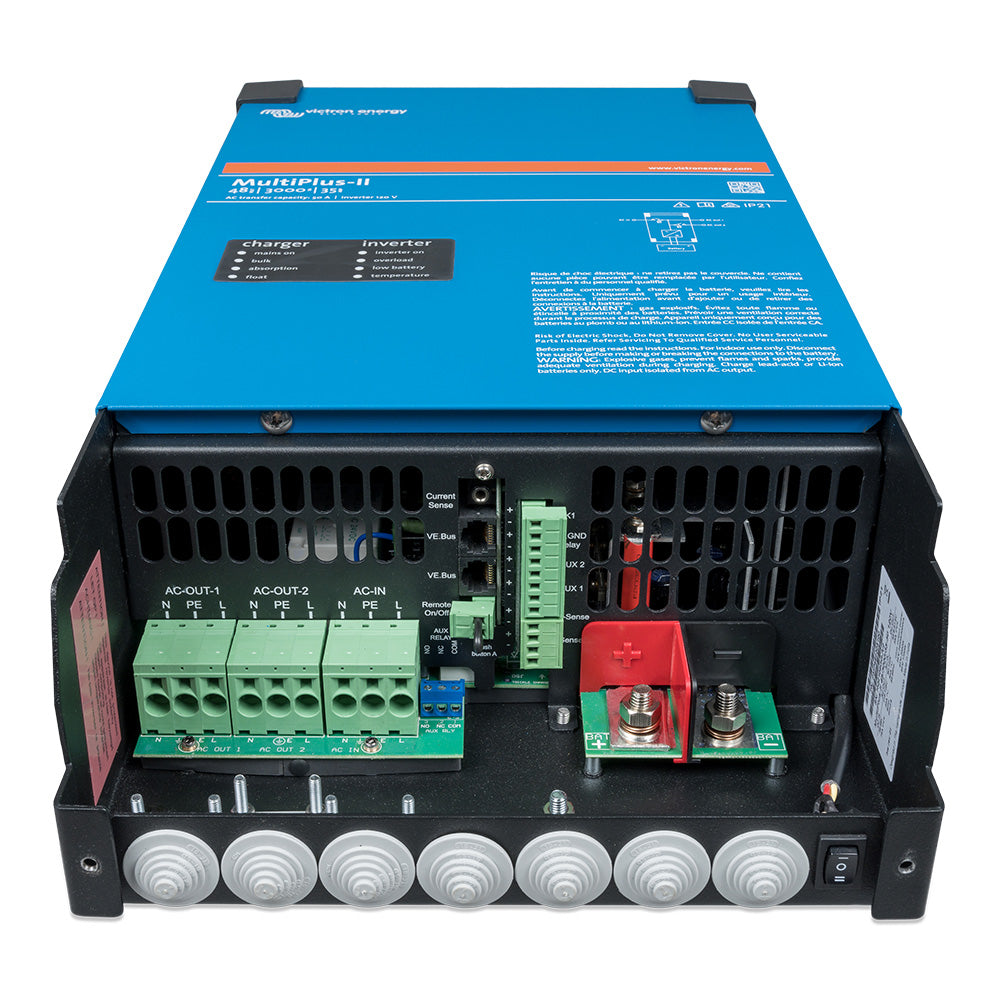

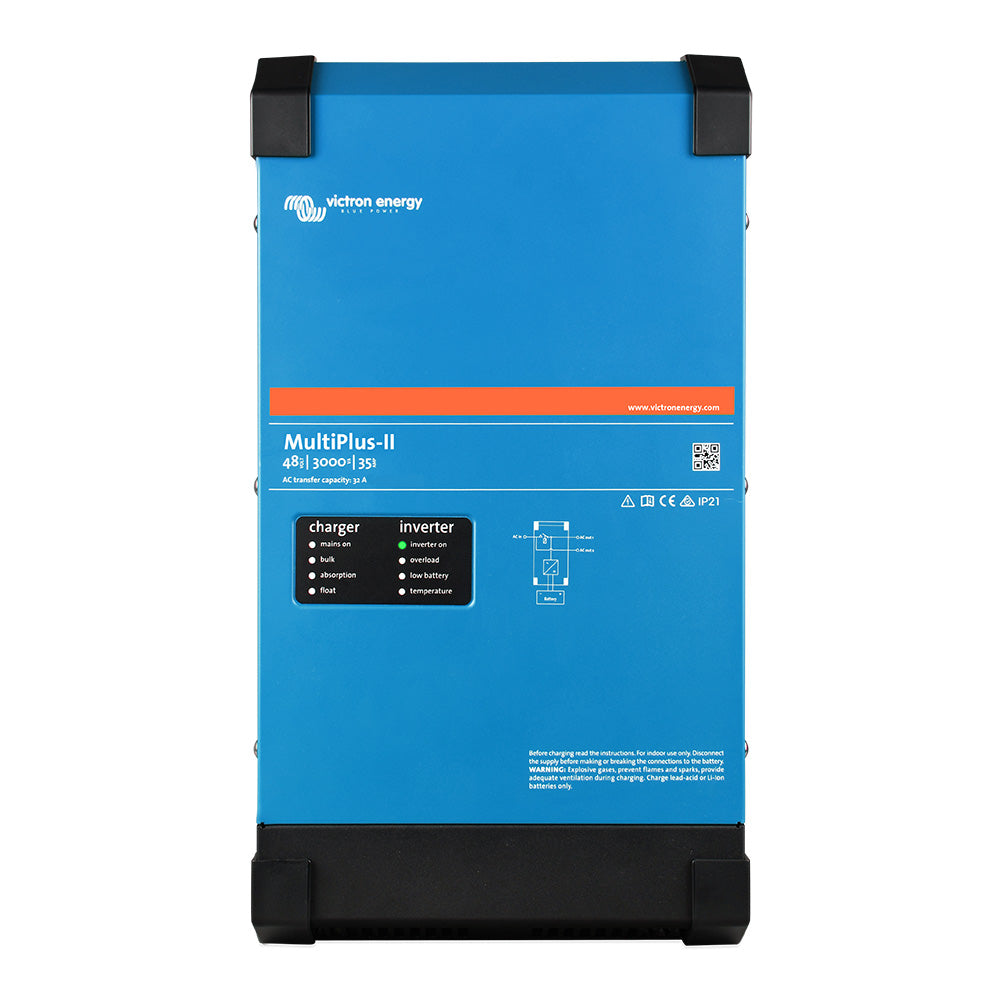

Victron MultiPlus-II 48/3000 - 35-50 - 120V - UL Approved
Victron MultiPlus-II 48/3000 - 35-50 - 120V - UL Approved is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The MultiPlus-II 48/3000 - 35-50 - 120V is a state-of-the-art inverter/charger designed specifically for marine and boating applications. Combining the robust features of the MultiPlus and MultiGrid, this UL-approved device ensures reliable power management and seamless energy integration on board your vessel.
Advanced Power Management
PowerAssist
The MultiPlus-II safeguards your boat’s electrical system by preventing overloads from limited AC sources such as generators or shore power connections. Should an overload situation arise, the MultiPlus-II intelligently reduces battery charging to maintain system stability. Additionally, it can boost the output from generators or shore supplies by drawing power from the battery, ensuring continuous and reliable power for all onboard systems.
Energy Storage Systems (ESS)
The MultiPlus-II serves as the cornerstone of a Victron Energy Storage System (ESS) on your boat. It offers unparalleled flexibility by seamlessly integrating with MPPT solar chargers or grid-tie PV inverters. This integration optimizes energy usage, enhances self-consumption, and ensures you have a dependable power supply even in the most demanding marine environments.
Uninterrupted AC Power (UPS Function)
Experience uninterrupted power during grid failures or when disconnecting from shore or generator power. The inverter within the MultiPlus-II activates automatically within 20 milliseconds, ensuring that sensitive electronics such as navigation systems and communication devices continue to operate without disruption. This ultra-fast transition is crucial for maintaining safety and functionality on board.
Remote Monitoring and Control
With the integration of a GX device, like the Cerbo GX, you can effortlessly monitor and control your MultiPlus-II and entire power system both locally and remotely. Access your system from anywhere in the world using the free VRM app or the VRM portal website. Whether you are on shore or navigating the open seas, you can adjust settings, monitor performance, and even auto-start a backup generator to ensure your vessel’s power needs are always met.
Key Specifications
Main Specifications
| Feature | Specification |
|---|---|
| PowerControl & PowerAssist | Yes |
| Transfer Switch | 50A |
| Maximum AC Input Current | 50A |
Inverter Specifications
| Parameter | Specification |
|---|---|
| DC Input Voltage Range | 38 – 66 V |
| Output Voltage | 120 VAC ± 2% |
| Frequency | 60 Hz ± 0.1% |
| Continuous Output Power at 25°C | 3000 VA / 2400 W |
| Continuous Output Power at 40°C | 2200 W |
| Continuous Output Power at 65°C | 1700 W |
| Maximum Apparent Feed-In Power | 2500 VA |
| Peak Power | 5500 W |
| Maximum Efficiency | 95% |
| Zero Load Power | 11 W |
| Zero Load Power in AES Mode | 7 W |
| Zero Load Power in Search Mode | 2 W |
Charger Specifications
| Parameter | Specification |
|---|---|
| AC Input Voltage Range | 90-140 VAC |
| Input Frequency | 45 – 65 Hz |
| Charge Voltage 'Absorption' | 57.6 V |
| Charge Voltage 'Float' | 55.2 V |
| Storage Mode | 52.8 V |
| Maximum Battery Charge Current | 35 A |
| Battery Temperature Sensor | Yes |
General Specifications
| Feature | Specification |
|---|---|
| Auxiliary Output | Yes (32 A) |
| External AC Current Sensor (optional) | 100 A |
| Programmable Relay | Yes |
| Protection | a – g |
| VE.Bus Communication Port | For parallel, split phase and three phase operation, remote monitoring and system integration |
| General Purpose Com. Port | Yes, 2x |
| Remote On-Off | Yes |
| Operating Temperature Range | -40 to +65°C (-40 – 150 °F) with fan-assisted cooling |
| Humidity (Non-Condensing) | Max 95% |
Enclosure Specifications
| Feature | Specification |
|---|---|
| Material & Color | Steel, blue RAL 5012 |
| Protection Category | IP22 |
| Battery-Connection | M8 bolts |
| 120 V AC-Connection | Screw terminals 13 mm² (6 AWG) |
| Weight | 9 kg |
| Dimensions (HxWxD) | 536 x 275 x 147 mm |
Standards Compliance
| Category | Standards |
|---|---|
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, UL458 |
| Emission & Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
Note: This product was previously known as MultiGrid-II for a short period.
