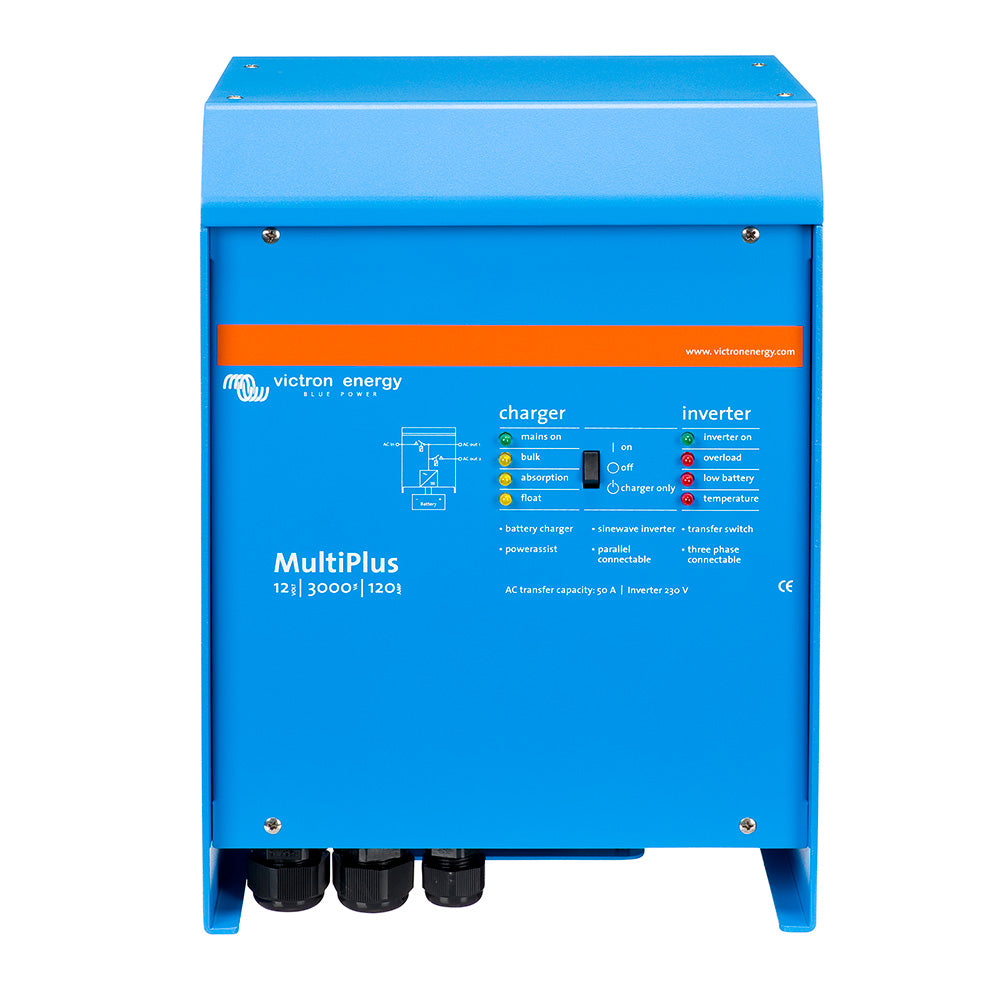

Victron MultiPlus 12/3000 - 120-50 - 230V - VE.Bus

The MultiPlus 12/3000 - 120-50 - 230V - VE.Bus is the ultimate power solution tailored for marine and boating applications. Combining a high-performance inverter and charger in a compact, durable unit, it ensures your vessel remains powered efficiently and reliably, no matter the conditions.

Key Features

• True sine wave inverter for clean and stable power
• Adaptive charging technology for optimal battery maintenance
• Hybrid PowerAssist technology to enhance shore or generator power
• Multiple system integration capabilities with VE.Bus
• Two AC outputs with seamless no-break functionality
• Scalable power with parallel and three-phase operation

Power Management

PowerControl

The MultiPlus acts as a powerful battery charger, intelligently managing power from your generator or shore supply. It draws current efficiently (approximately 10 A per 5 kVA Multi at 230 VAC) and allows you to set a maximum generator or shore current using the Multi Control Panel. This ensures that other AC loads are accounted for, preventing overloads and maintaining a stable power supply.

PowerAssist

Enhance your shore or generator power capacity with PowerAssist. This feature supplements your alternative power source by automatically drawing from the battery during peak demand periods. When the load decreases, excess power is used to recharge the battery, ensuring smooth and uninterrupted power delivery to critical onboard systems.

Seamless Integration and Configuration

System Configuring

• Stand-Alone Applications: Quick and easy DIP switch settings for immediate configuration changes.
• Parallel and Three-Phase: Utilize VE.Bus Quick Configure and VE.Bus System Configurator software for seamless setup.
• Off-Grid and Grid-Interactive: Configure with dedicated Assistants for integrating grid-tie inverters or MPPT Solar Chargers.

Connectivity and Control

On-site Monitoring and Control

Monitor and control your MultiPlus through various interfaces including the Battery Monitor, Multi Control Panel, Color Control GX or other GX devices, smartphones, tablets (via Bluetooth Smart), laptops, or computers (USB or RS232).

Remote Monitoring and Control

Employ Color Control GX or similar GX devices to access real-time data stored and displayed on the free Victron Remote Management (VRM) website for convenient remote oversight.

Remote Configuring

With an Ethernet connection, manage your MultiPlus settings remotely using a Color Control GX or compatible GX device, ensuring optimal performance without the need for physical access.

Unlimited Power with Scalable Operation

Expand your power capabilities by operating up to six MultiPlus units in parallel. For instance, six 24/5000/120 units can deliver up to 25 kW / 30 kVA of output power with a robust 720 AMP charging capacity.

Additionally, configure three identical units for a three-phase output, and scale up to six sets of three units for an impressive 75 kW / 90 kVA inverter and over 2000 AMP charging capacity, perfect for large marine applications.

Reliable Power During Grid Failures

The MultiPlus supports both off-grid and grid-connected PV systems, ensuring uninterrupted AC power even during a grid failure. Equipped with loss of mains detection software, it seamlessly switches to alternative power sources to keep your onboard systems running smoothly.

Comprehensive Specifications

Inverter Specifications

Parameter	Specification
Input Voltage Range (V DC)	9.5 – 17 V, 19 – 33 V, 38 – 66 V
Output Voltage	230 VAC, ± 2%
Frequency	50 Hz ± 0.1%
Continuous Output Power at 25°C (VA)	3000
Continuous Output Power at 25°C (W)	2400
Peak Power (W)	6000
Maximum Efficiency (%)	93 / 94 / 95
Zero Load Power (W)	20 / 20 / 25

Charger Specifications

Parameter	Specification
AC Input Voltage Range	187-265 VAC
Input Frequency	45 – 65 Hz
Power Factor	1
Charge Voltage Absorption (V DC)	14.4 / 28.8 / 57.6
Charge Voltage Float (V DC)	13.8 / 27.6 / 55.2
Storage Mode (V DC)	13.2 / 26.4 / 52.8
Charge Current House Battery (A)	120 / 70 / 35
Battery Temperature Sensor	Yes

General Specifications

• Auxiliary Output: 16A
• Programmable Relay: Yes
• Protection Features: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on the inverter output, input voltage ripple too high
• Communication Ports: VE.Bus for parallel and three-phase operation, remote monitoring, and system integration; General purpose com. Port
• Remote On-Off: Yes
• Operating Conditions: -40 to +65°C (fan-assisted cooling), max 95% non-condensing humidity

Enclosure Specifications

• Material & Color: Aluminum (blue RAL 5012)
• Protection Category: IP 21
• Battery Connection: Four M8 bolts (2 positive, 2 negative)
• 230 V AC Connection: Screw terminals 13mm² (6 AWG) M6 bolts
• Weight: 18 kg
• Dimensions (HxWxD in mm): 362 x 258 x 218

Standards Compliance

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
• Emission & Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Road Vehicles: 12V and 24V models: ECE R10-4
• Anti-Islanding: Refer to Victron's website
• Frequency Adjustment: Can be set to 60 Hz; 120 V models available upon request

Additional Features

• Zero Load Power Modes: Standard, AES, and Search modes with varying power consumption
• Programmable Relay: Configurable for general alarms, DC undervoltage, genset start/stop functions, and communication with lithium-ion battery BMS
• Crest Factor: 3:1 for non-linear loads
• Ambient Conditions: Operates up to 25°C ambient temperature
• Automatic Shutdown: Switches off when no external AC source is available
