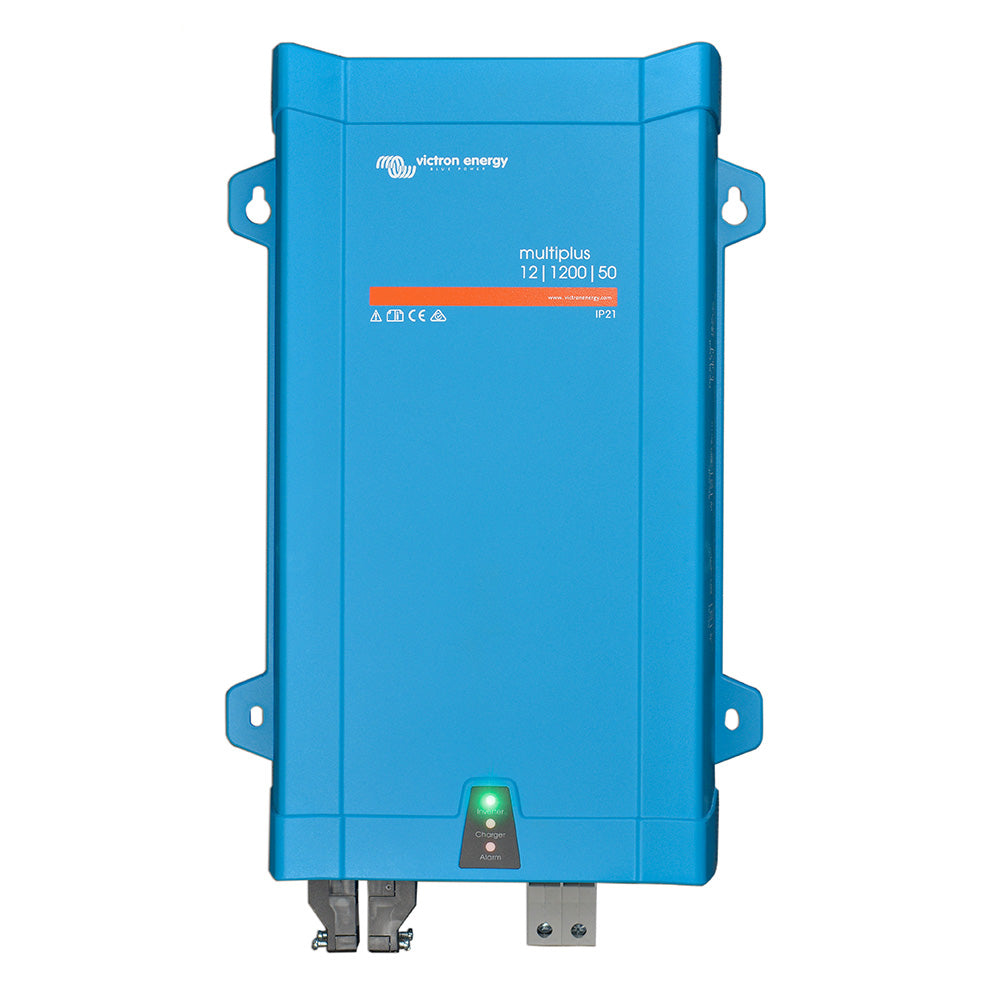

Victron MultiPlus 12/1200 - 50-16 - 120V - VE. Bus

The MultiPlus 12/1200 - 50-16 - 120V - VE.Bus is an advanced power solution tailored for marine and boating applications. Combining a true sine wave inverter, a state-of-the-art battery charger with adaptive technology, and a high-speed AC transfer switch, it ensures reliable and efficient power management on the water. This compact yet powerful device is equipped with multiple features designed to enhance your maritime experience.

Key Features

Parallel Operation and Three-Phase Capability

Expand your power system effortlessly by connecting up to six MultiPlus units in parallel for increased power output. Additionally, configure three units to achieve a three-phase power setup, providing flexibility and scalability to meet your vessel's energy demands.

PowerControl: Optimize Limited Power Sources

Set a maximum generator or shore power current using the Multi Control Panel. The MultiPlus intelligently manages additional AC loads, utilizing excess power for battery charging while preventing overloads from generators or shore supplies.

PowerAssist: Enhance Shore or Generator Capacity

PowerAssist takes PowerControl a step further by supplementing limited shore or generator power with battery energy. It seamlessly compensates for power deficits during peak demands and recharges the battery when the load decreases, ensuring consistent power availability.

Advanced Four-Stage Adaptive Charger

The MultiPlus features a four-stage adaptive charger that dynamically adjusts the charging process based on battery condition. This ensures optimal battery health and longevity, with an additional trickle charge output for a secondary battery, perfect for starter or generator batteries.

High Start-Up Power

Designed to handle high-inrush loads, the MultiPlus reliably starts power converters for LED lamps, halogen lighting, and electric tools, ensuring your essential equipment operates smoothly.

Energy-Efficient Search Mode

When activated, Search Mode reduces the inverter's no-load power consumption by approximately 70%. The system periodically checks for load presence, activating the inverter only when necessary to conserve energy.

Programmable Relay

The built-in programmable relay acts as an alarm system, de-energizing during alerts such as overheating, high input ripple, or low battery voltage. Customize relay functions for additional control and integration with your vessel's systems.

Remote Control and Monitoring

With options for remote on/off control and charger activation, manage your power system conveniently. Utilize VE-Config or the VE.Bus Smart dongle for advanced settings adjustments and system integration.

Specifications

Inverter Specifications

Feature	Specification
Input Voltage Range (V DC)	9.5 – 17 V
Output Voltage	120 VAC, ± 2%
Continuous Output Power at 25°C (VA)	1200
Continuous Output Power at 25°C (W)	1000
Continuous Output Power at 40°C (W)	900
Continuous Output Power at 65°C (W)	600
Peak Power (W)	2400
Maximum Efficiency (%)	93
Zero Load Power (W)	13
Zero Load Power in Search Mode (W)	4

Charger Specifications

Feature	Specification
AC Input Voltage Range	95 - 140 V
AC Input Frequency Range	55-66Hz
Charge Voltage Absorption (V DC)	14.4
Charge Voltage Float (V DC)	13.8
Storage Mode (V DC)	13.2
Charge Current House Battery (A)	50
Charge Current Starter Battery (A)	1
Battery Temperature Sensor	Yes

General Specifications

Feature	Specification
Programmable Relay	Yes (1x)
Protection	a - g
VE.Bus Communication Port	For parallel and three-phase operation, remote monitoring, and system integration (RJ45-splitter ASS030065510 needed for 500 / 800 / 1200 VA models)
Remote On-Off	On/off/charger only
DIP Switches	Yes
Internal DC Fuse	200A
Operating Temperature Range	-40 - +65°C / -40 to 150°F (fan-assisted cooling), Humidity (non-condensing) max 95%

Enclosure Specifications

Feature	Specification
Material & Color	Aluminum (blue RAL 5012)
Protection Category	IP 21
Battery Connection	35 mm²
AC Connection	G-ST18i connector
Weight	8.2 kg (18.1 lbs)
Dimensions (H x W x D)	406 x 250 x 100 mm / 15.98 x 9.84 x 3.94 in.

Compliance and Protection Standards

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
• Emission & Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Automotive Directive: ECE R10-5
• Protection Features: Output short circuit, Overload, Battery voltage too high, Battery voltage too low, Temperature too high, 230VAC on inverter output, Input voltage ripple too high
• Non-linear load, crest factor 3:1
• Ambient Operation: Up to 25°C
• Programmable Relay Settings: General alarm, DC under voltage, Generator start/stop signal functions
• AC Rating: 4 A at 120 V
• DC Rating: 4 A up to 35 V, 1 A up to 60 V
• Additional Requirement: RJ45-splitter ASS030065510 for parallel and three-phase operation

Installation and Configuration

Installation of the MultiPlus is straightforward. After mounting, basic settings can be adjusted using DIP switches available on the unit:

• 500/800/1200VA Models: Remote switch, battery charge voltage, inverter frequency, search mode
• 1600/2000VA Models: Battery charge voltage, search mode

For advanced configurations, utilize VE-Config software or the VE.Bus Smart dongle, allowing for comprehensive system integration and monitoring.

Remote Monitoring and Control

Enhance your system's capabilities by connecting a Cerbo GX or other GX products to the internet. With Victron's VRM (Victron Remote Management) platform, you can store and display operational data, access your system remotely, and adjust settings from anywhere with an internet connection.

Support and Resources

Please contact your dealer for any returns, repairs, or support issues related to this product.

• Quick Guide (pdf)
• Owner's Manual (pdf)
• Brochure (pdf)
