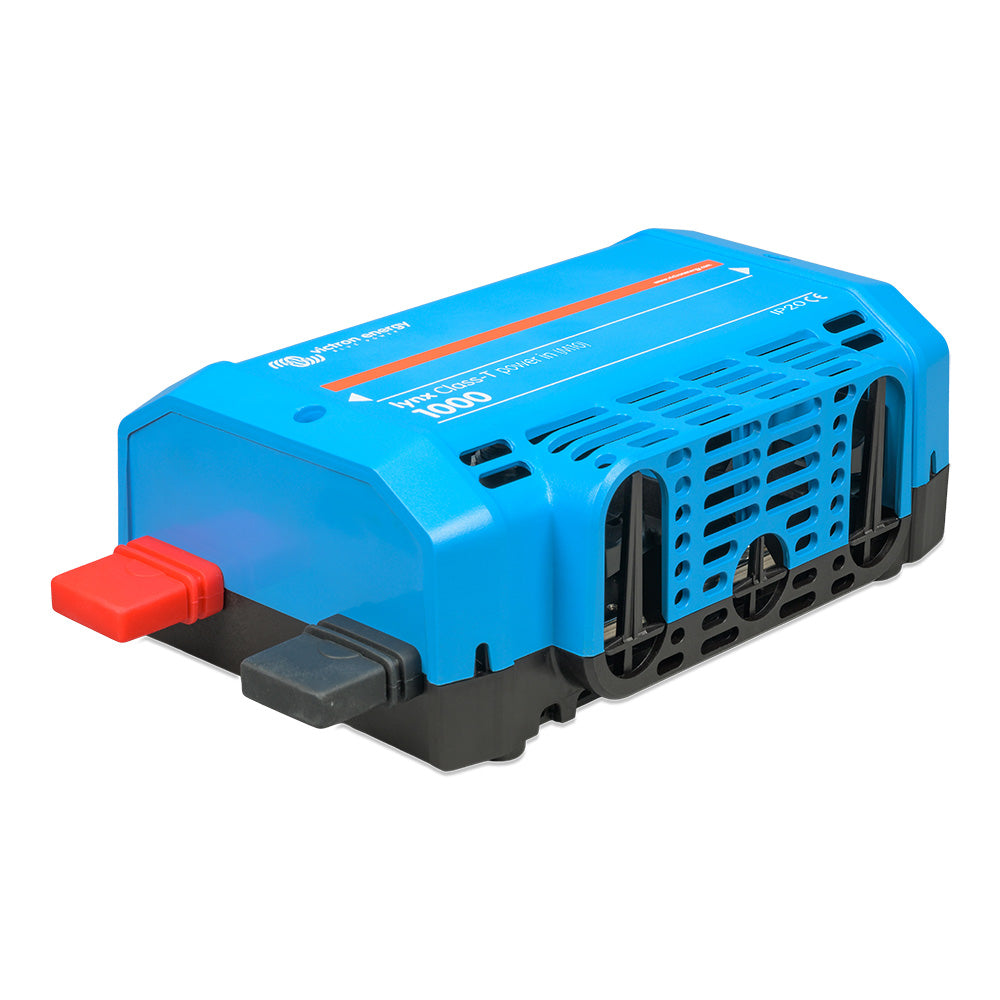

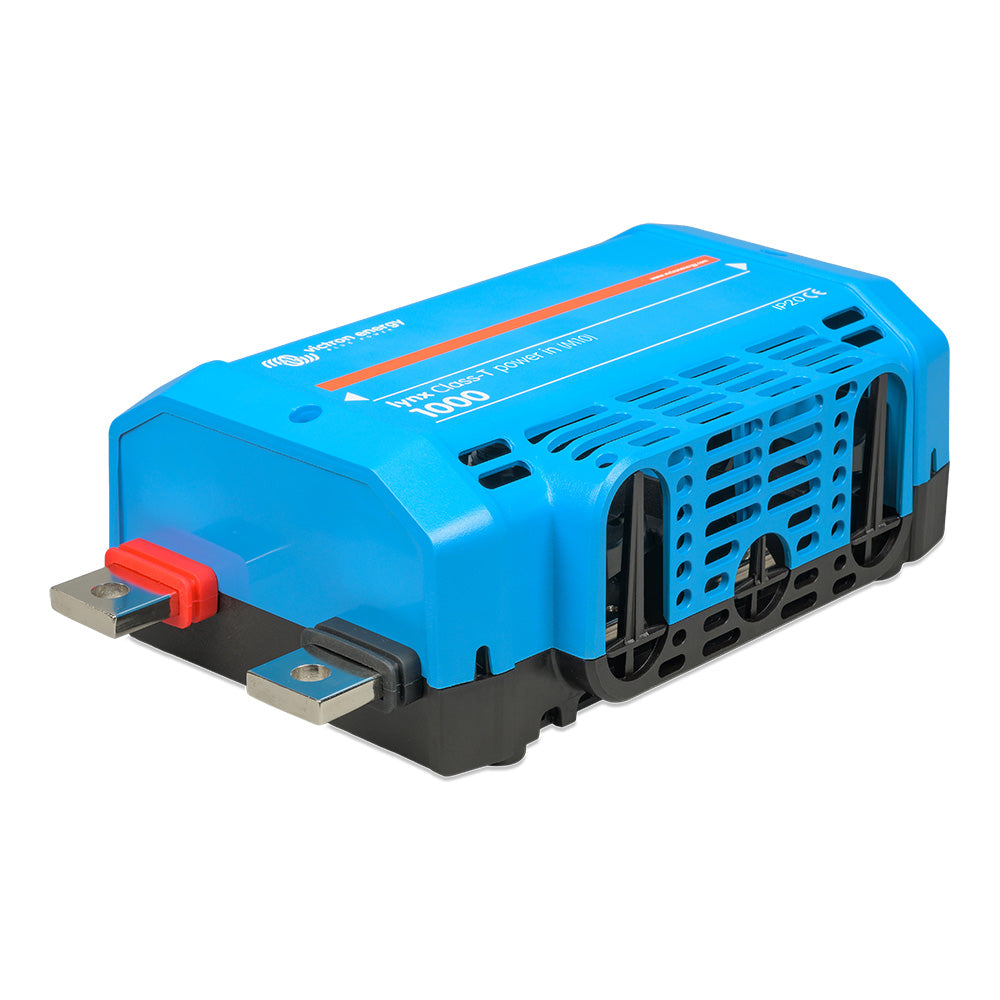

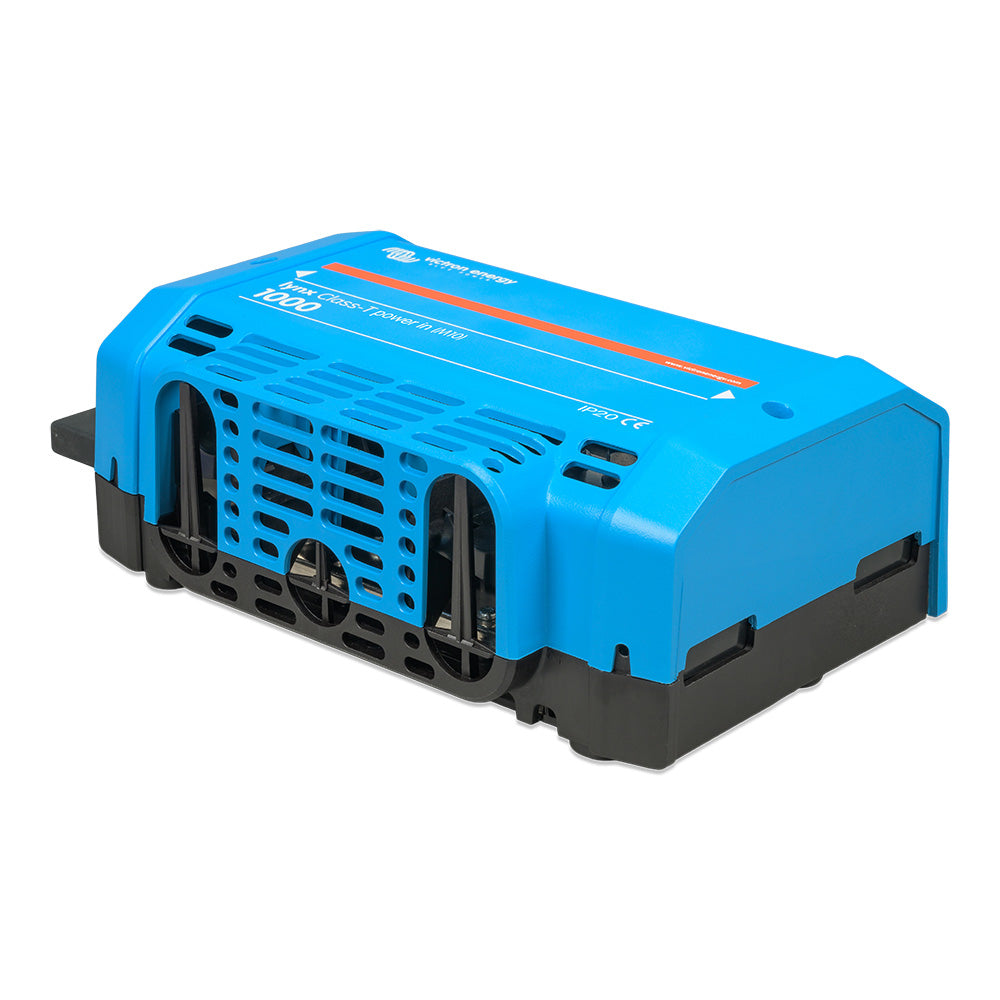

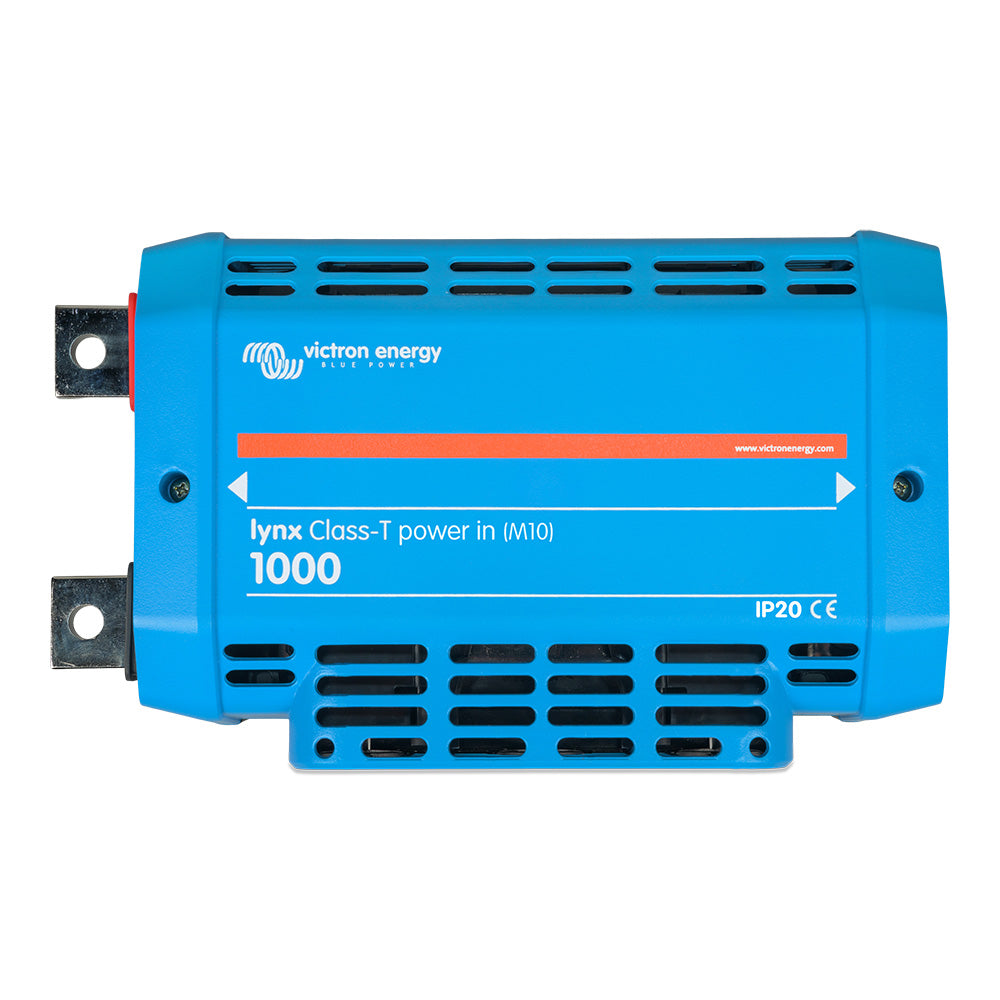

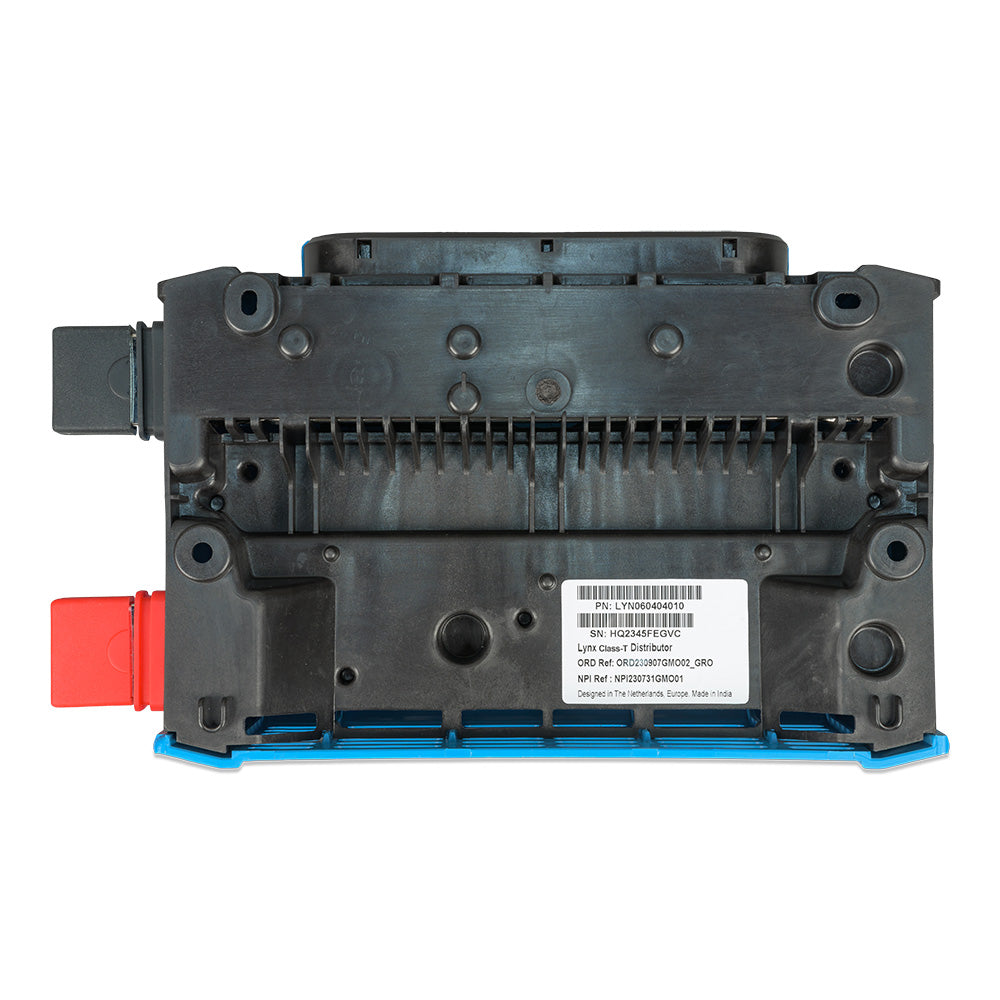

Victron Lynx Power-In Class-T M10 Terminals
Victron Lynx Power-In Class-T M10 Terminals is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Lynx Power-In Class-T M10 Terminals are engineered for marine and boating applications, offering robust connections and fusing solutions for up to two strings of lithium batteries. Designed to integrate seamlessly with the Lynx Distribution System, these terminals ensure efficient and safe power management on your vessel.
Key Features
- Connects and fuses up to two strings of lithium batteries
- Includes positive and negative busbars
- Supports two Class-T fuses (available in 225A, 250A, 350A, and 400A)
- Ground connection for DC system safety
- Compatible with multiple Lynx Class-T modules for larger installations
- Seamless integration with all M10 Lynx Distribution System products
The Lynx Distribution System
The Lynx Distribution System is a versatile modular busbar system tailored for marine and boating power setups. It incorporates DC connections, distribution, fusing, and advanced battery monitoring or lithium battery management to ensure optimal performance and safety.
System Components
- Lynx Power In: Features positive and negative busbars with four connections for batteries or DC equipment.
- Lynx Distributor: Offers positive and negative busbars with four fused connections for batteries or DC equipment. Fuse monitoring is available in two versions.
- Lynx Shunt VE.Can: Includes a positive busbar with space for a main system fuse and a negative busbar with a shunt for battery monitoring. Equipped with VE.Can communication for monitoring and setup with a GX device.
- Lynx Smart BMS: Designed for use with Victron Energy Smart Lithium batteries. Features a positive busbar with a contactor driven by a BMS and a negative busbar with a shunt for battery monitoring. Offers Bluetooth and VE.Can communication for monitoring via the VictronConnect App and GX device. Available in a 1000A model with M10 busbars.
Technical Specifications
| Electrical Specifications | |
|---|---|
| Voltage Range | 9 - 60 Vdc |
| Current Rating | 1000 Adc continuous |
| Connections | M10 |
| Busbar Size | 3/8” |
| Physical Specifications | |
|---|---|
| Enclosure Material | ABS |
| Enclosure Dimensions (H x W x D) | 279 x 169 x 97 mm |
| Unit Weight | 2.1 kg |
| Busbar Material | Tinned copper |
| Busbar Dimensions (H x W) | 8 x 30 mm |
| Environmental Specifications | |
|---|---|
| Operating Temperature Range | -40°C to +60°C |
| Storage Temperature Range | -40°C to +60°C |
| Humidity | Max. 95% (non-condensing) |
| Protection Class | IP20 |
Additional Specifications
- Fuse Type: Class T
- Box Dimensions: 5" H x 7" W x 16" L
- Weight: 6.6 lbs
- UPC: 8719076062967
Support and Warranty
Please contact your dealer for any returns, repairs, or support issues related to this product.
Resources
Product Video
