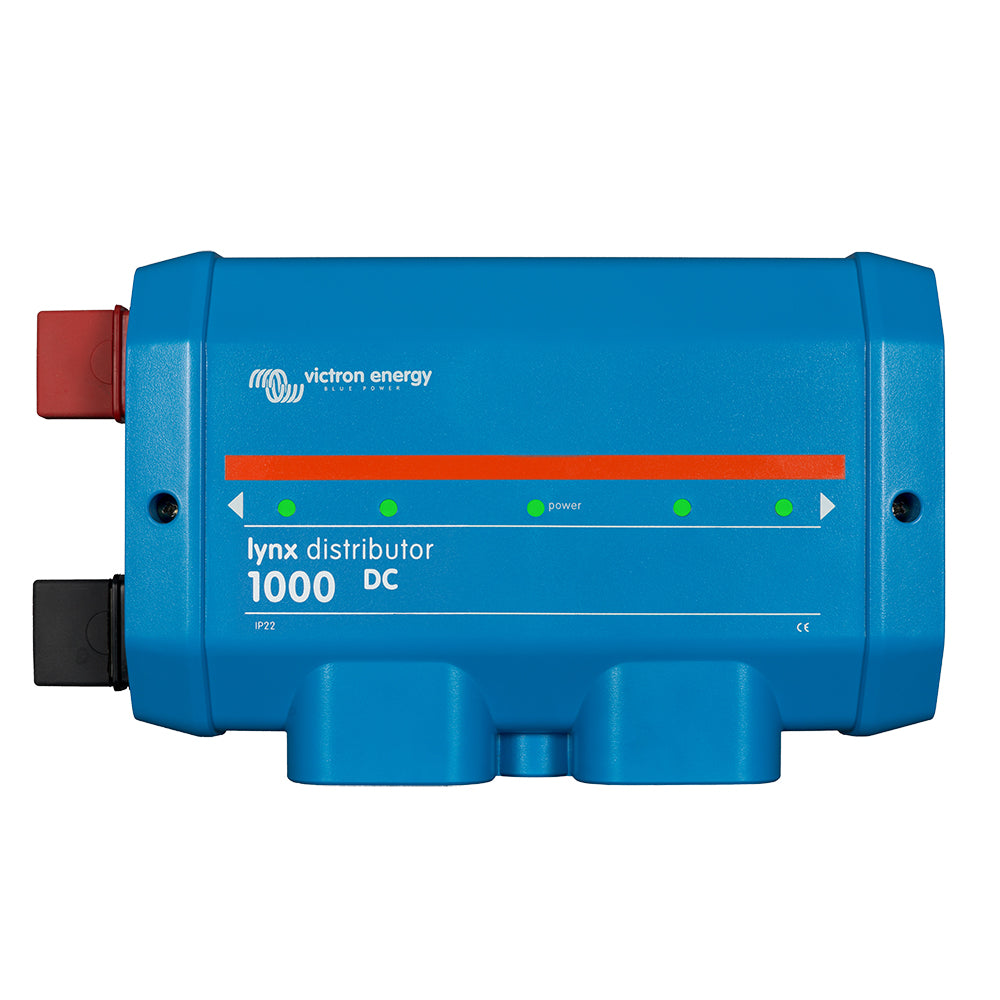

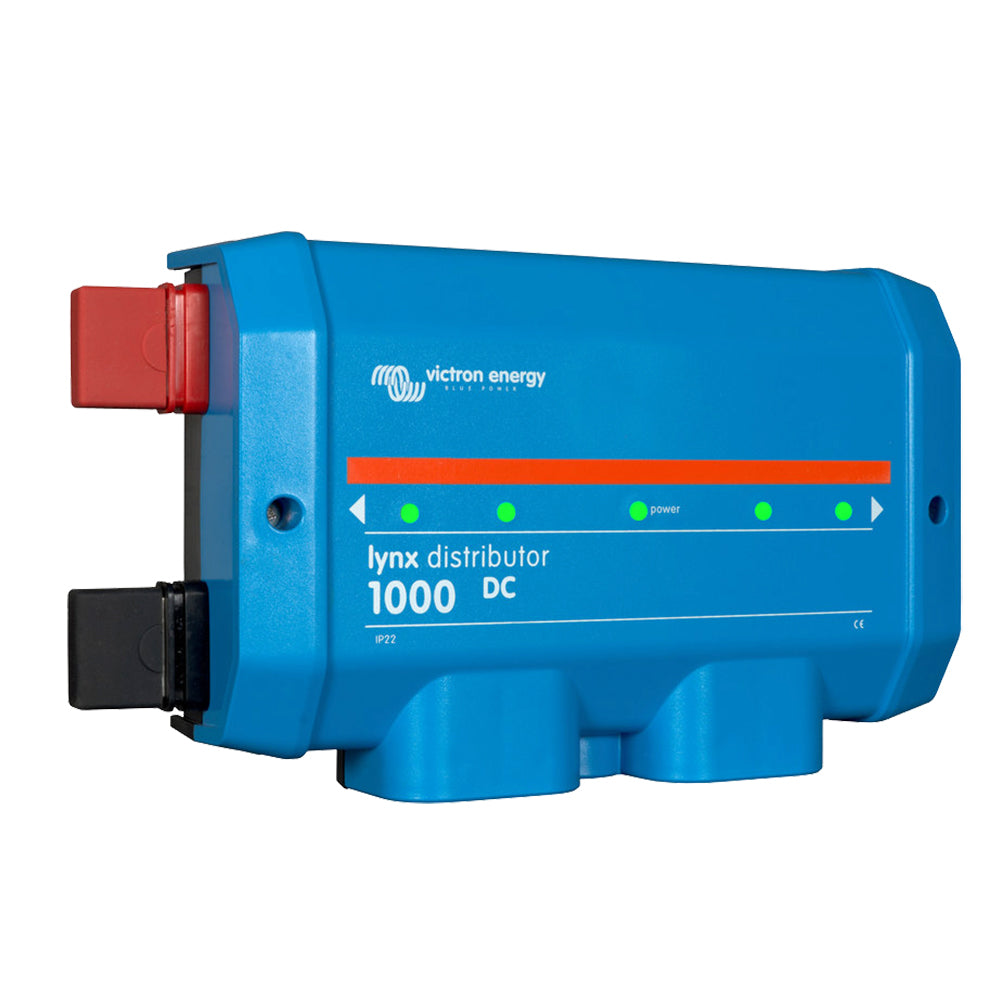

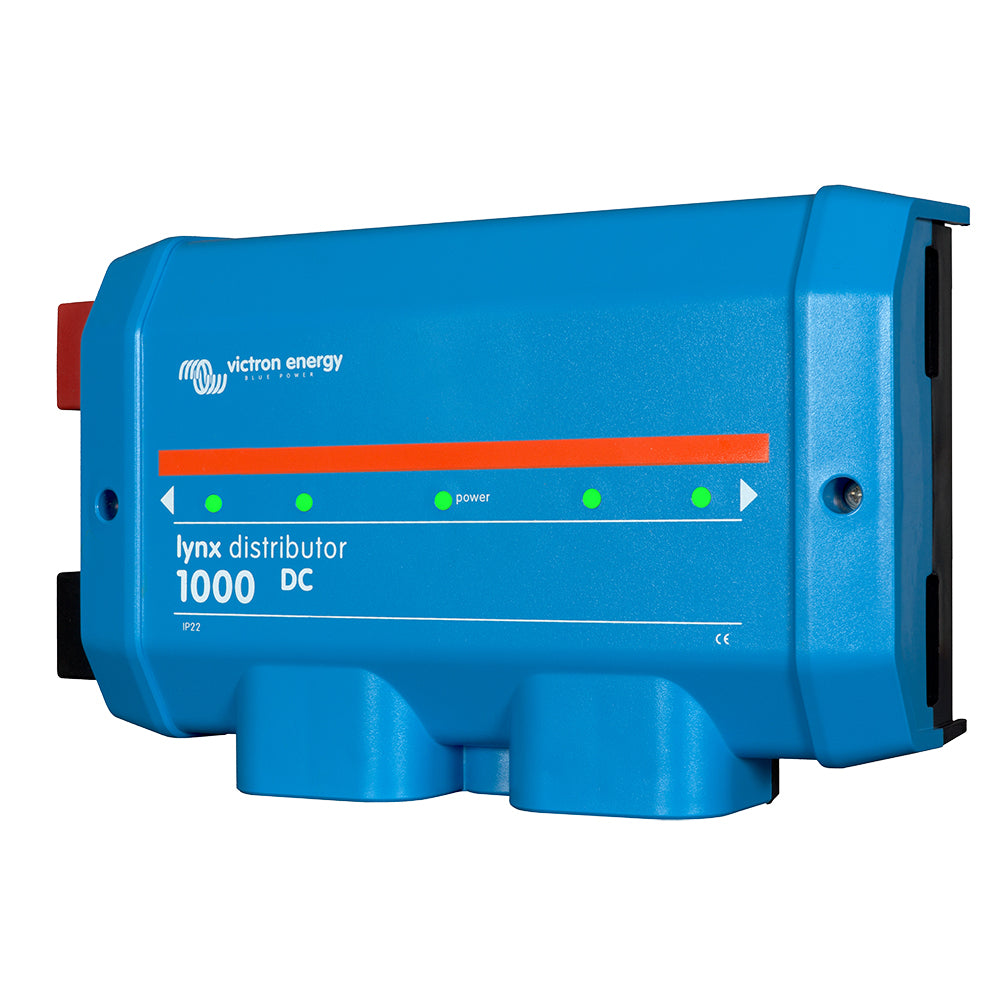

Victron Lynx Distributor

The Lynx Distributor is an essential component for marine electrical systems, offering a reliable and modular solution for managing your DC power distribution on board.

Key Features

• Modular DC bus bar with slots for four individual DC fuses
• Monitors and displays the status of each fuse with LED indicators
• Part of the versatile Lynx distribution system tailored for marine applications

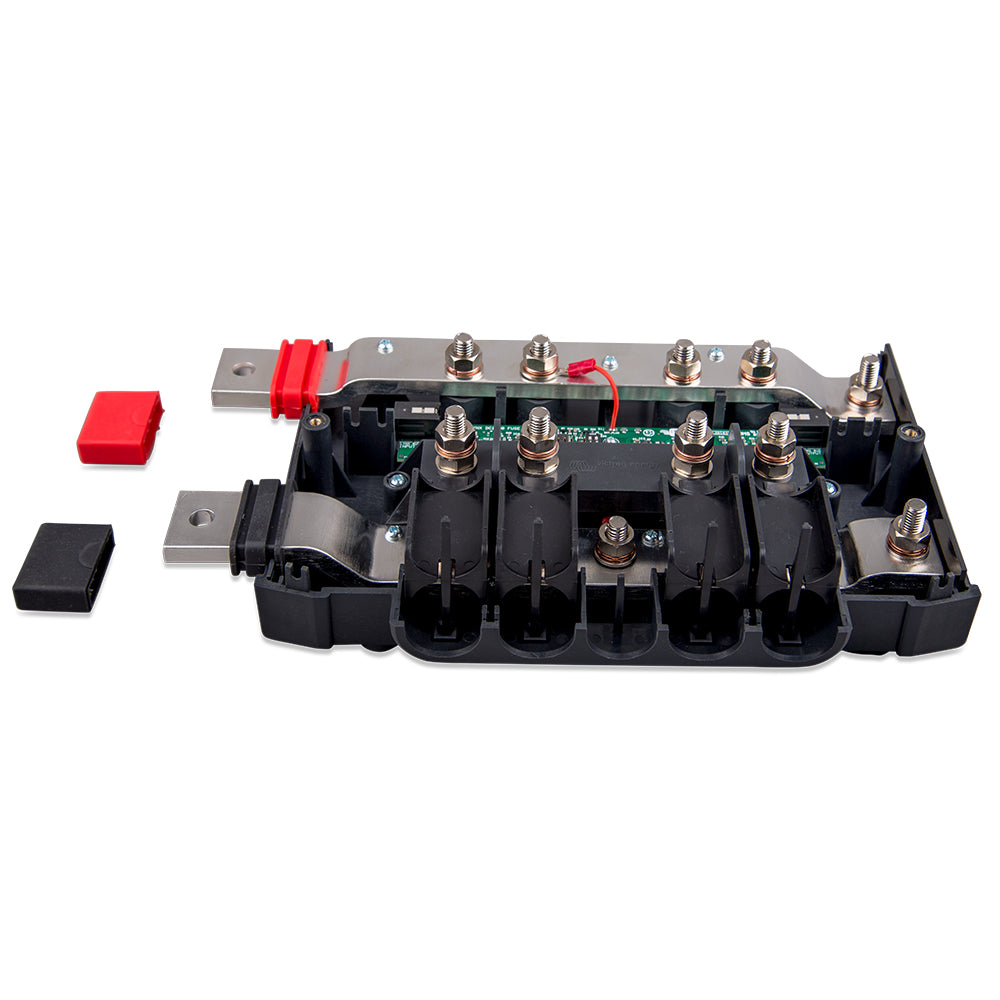

• Includes both positive and negative bus-bars for efficient power management
• Supports connections for up to four DC equipment circuits, loads, or DC groups
• Optional LED indicators provide real-time fuse status updates

Advanced Monitoring and Safety

The Lynx Distributor not only facilitates robust power distribution but also enhances safety by continuously monitoring each fuse's condition. Each fuse slot can be equipped with an optional LED that indicates whether the fuse is intact or has blown.

When all fuses are operating correctly, the central LED remains green. If a fuse blows or is missing, both the central LED and the corresponding fuse LED turn red, alerting you to take immediate action. For installations where not all DC distribution points are utilized, dummy fuses can be installed to prevent false red LED indications.

Compatibility and Installation

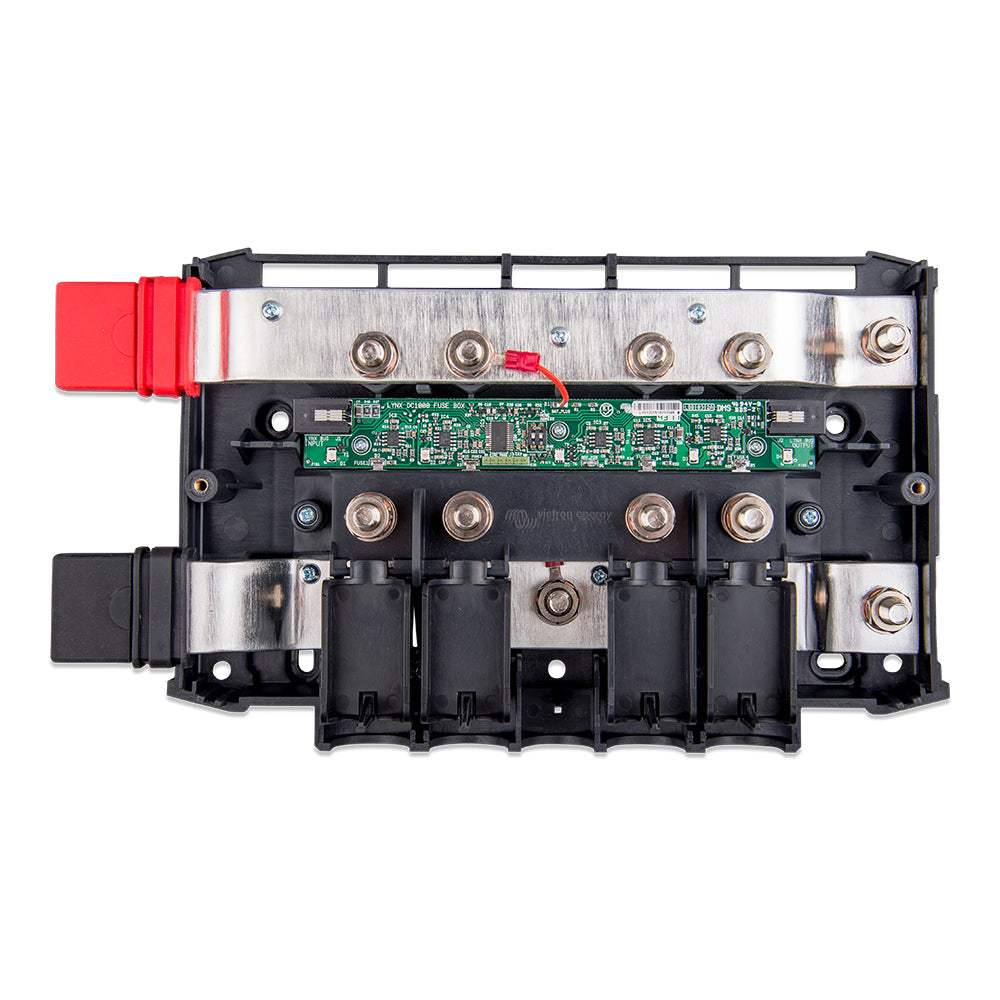

To utilize the fuse indication LEDs on the Lynx Distributor, a connection to a Lynx Shunt is required. The Lynx Shunt provides the necessary wide input (8 to 70 VDC) and converts it to a stable 5V (4.5V - 5.5V) power supply needed by the Distributor's circuit board.

Connections between the Lynx Shunt and Distributor are made using RJ11 fly leads, which are included in the Distributor package. The Lynx Shunt features two ports, offering flexibility for your marine electrical setup.

Technical Specifications

Additional Resources

Quick Guide (PDF)

Warranty Information

Safety Warning
