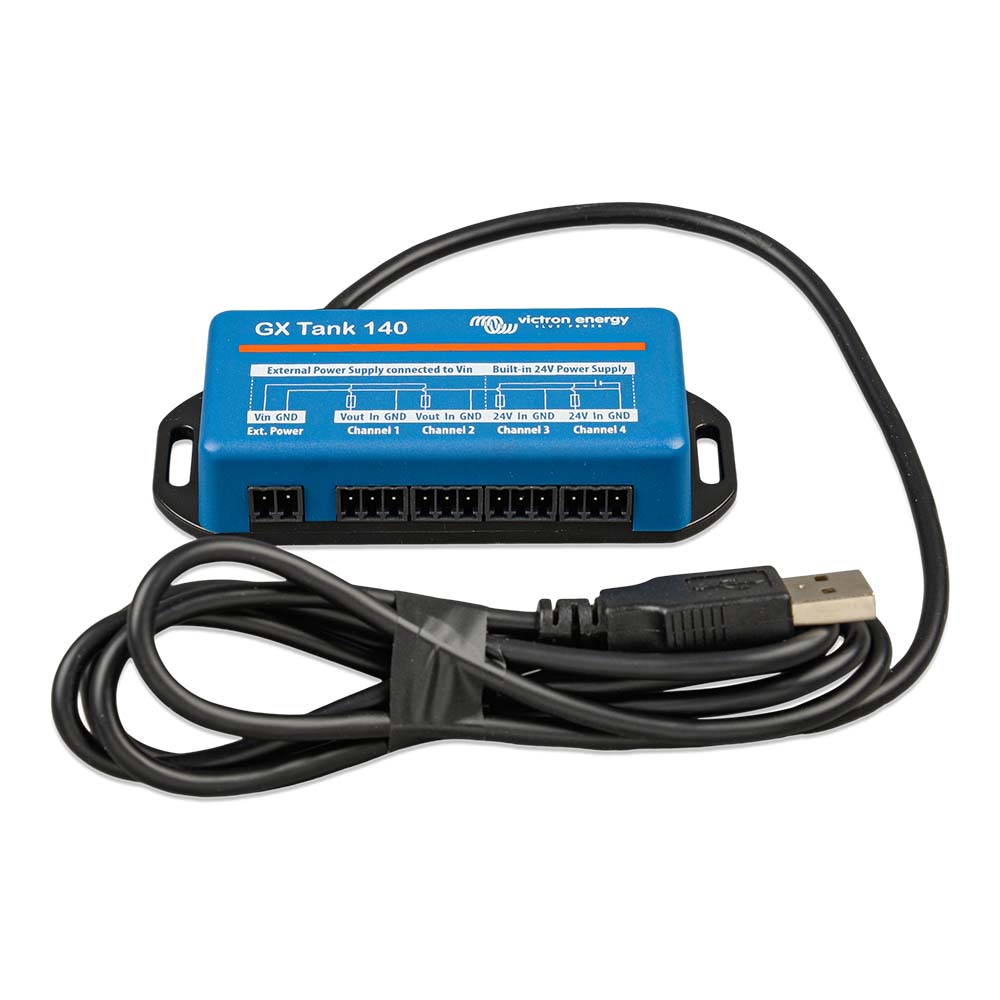

Victron GX Tank 140 Tank Monitoring f/4-20 MA, 1-10VDC Sensors - Monitors Up to 4 Sensors *Sensor Not Included

The GX Tank 140 Tank Monitoring system is an essential tool for marine and boating enthusiasts, providing accurate and reliable tank level measurements. Designed to integrate seamlessly with your GX system, it ensures you stay informed about your vessel's fuel, water, or other tank levels both locally and remotely.

Key Features

• Monitors up to four tank level sensors
• Compatible with 4-20 mA and 0-10 VDC sensors
• USB connection for data and power – no additional power wires required
• Local display and remote monitoring via VRM Portal
• Configurable upper and lower limits
• Adjustable damping between 1 and 60 seconds for stable readings
• Fault detection with alarm notifications for sensor and wiring issues
• Integration with NMEA 2000 network for marine applications

Compatibility

The GX Tank 140 is designed to work seamlessly with current and versatile tank senders:

Sender Type	Range
Current Senders	4 to 20 mA
Voltage Senders	0 to 10 VDC

Easy Installation

Installing the GX Tank 140 is straightforward, thanks to its USB connection that handles both data transmission and power supply. This eliminates the need for additional power wiring, simplifying the setup process on your vessel.

Wiring Simplified

The GX Tank 140 maintains a simple wiring layout:

• Two of the four inputs provide a 24 V power supply to power the senders.
• The remaining two channels require an external power supply, with power available in the terminal alongside fused outputs for easy connection.

Configurable Settings

• Upper and Lower Limits: Adjust these settings to accommodate senders that operate within specific ranges, such as 0 to 5 V.
• Reading Damping: Configure the damping period between 1 and 60 seconds to ensure stable and accurate readings.

Fault Detection and Alerts

The GX Tank 140 actively monitors sensor performance and wiring integrity. If any values fall outside the configured range, an alarm is triggered to notify you of potential issues, ensuring timely maintenance and preventing inaccuracies.

Marine Integration

For those using the GX Device in marine environments, the GX Tank 140 can transmit tank level data via the NMEA 2000 network. This allows integration with other marine displays, such as Multi-Function Displays (MFDs), providing centralized monitoring of your vessel's systems.

Support and Services

Please contact your dealer for any returns, repairs, or support issues related to the GX Tank 140.

Resources

• Quick Guide (PDF)
• Brochure (PDF)
