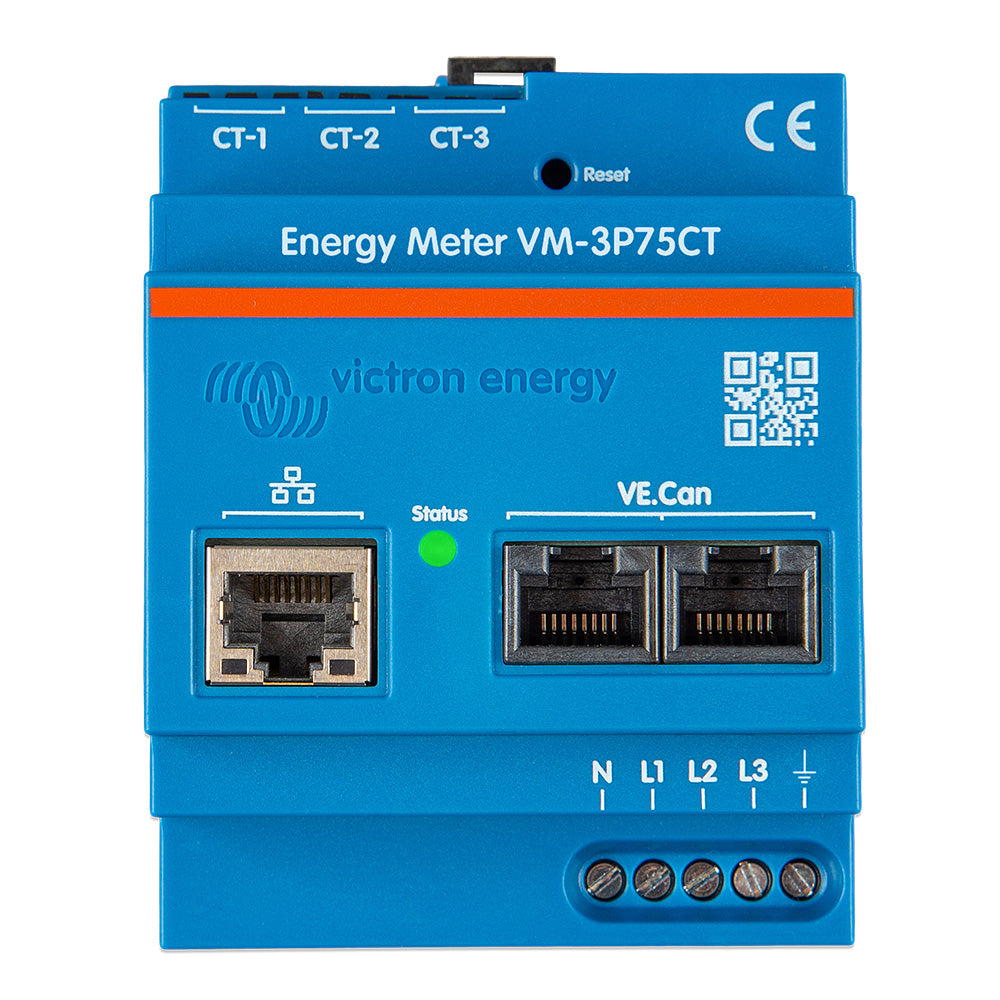

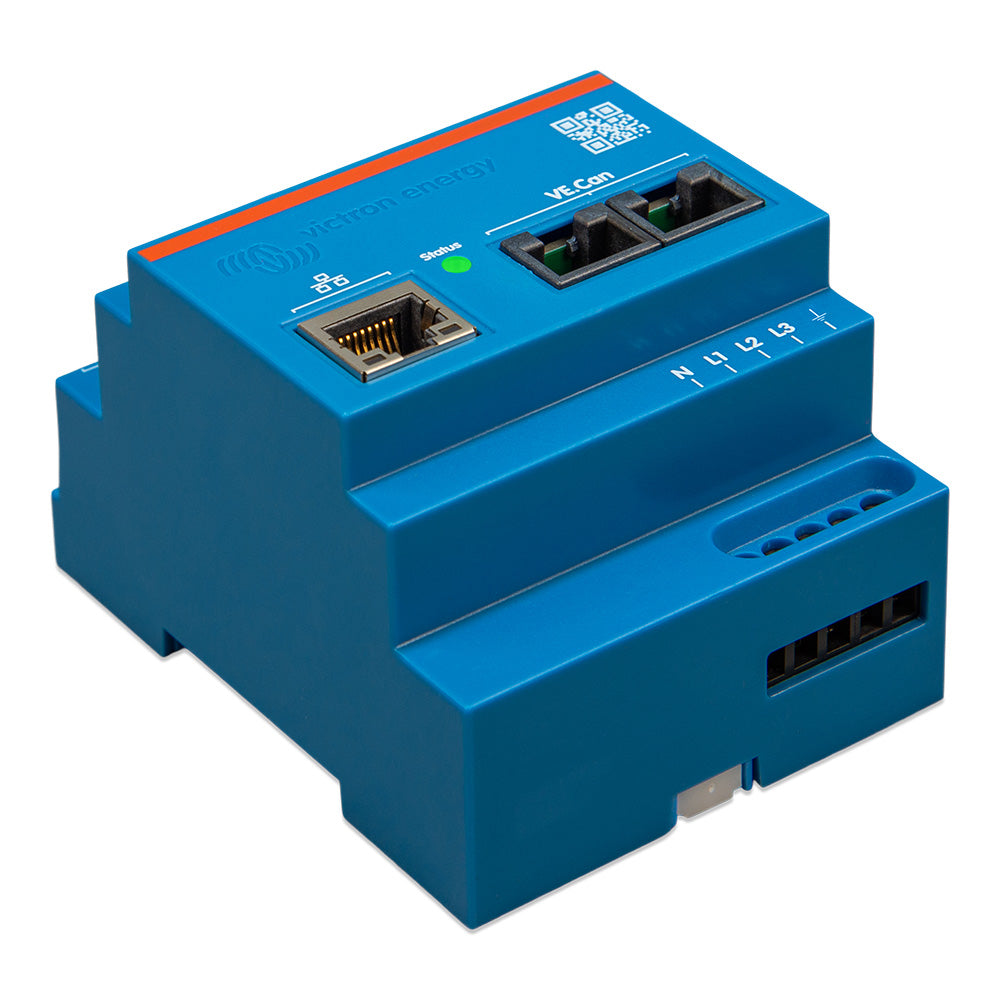

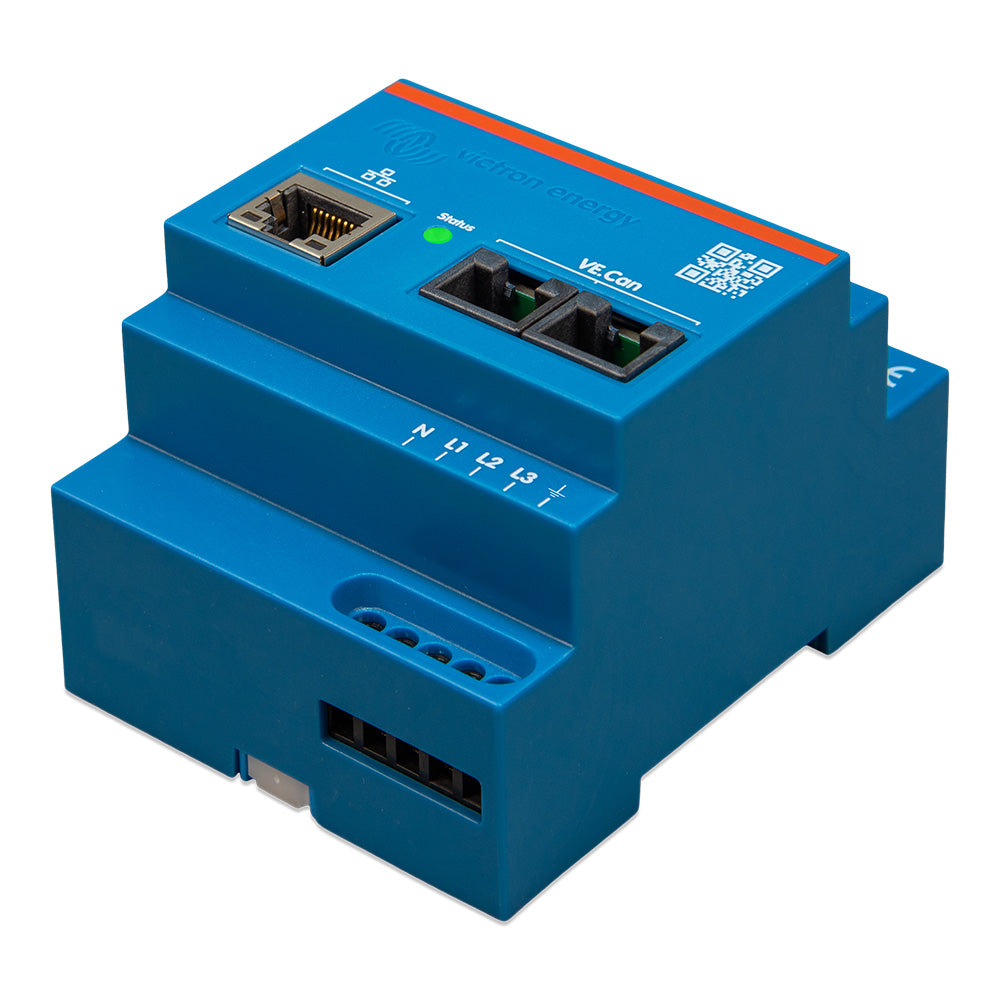

Victron Energy Meter VM-3P75CT Single + 3-Phase

The Victron VM-3P75CT Energy Meter is an essential tool for marine and boating enthusiasts looking to accurately monitor their power consumption. Designed for both single and three-phase applications, this energy meter ensures seamless integration with your boat’s electrical system, providing real-time data and reliable performance in demanding marine environments.

Key Features

• Measures power and energy for single and three-phase systems
• High-speed data broadcasting via VE.Can or Ethernet
• Built-in Ethernet and VE.Can ports for easy GX device connectivity
• Quick installation with split-core current transformers, no wiring modifications needed
• Compatible with Victron’s MultiPlus and Quattro for effortless grid metering
• Displays data on GX devices like Cerbo GX or Ekrano GX, VictronConnect, and VRM Portal
• Durable polycarbonate housing, suitable for indoor marine environments

Specifications

Feature	Details
Voltage Connection	Direct via screw terminals (0.25 - 1.5mm², 24 - 16AWG)
Input Voltage Range (L-N)	85 to 265 VAC
Input Voltage Range (L-L)	150 to 460 VAC
Frequency	50/60 Hz
Current Connection	Via included split-core current transformers (wire length 640mm / 25.2in)
Rated Current	75 A
VE.Can Communication Ports	Two RJ45 connectors (VE.Can terminators included)
Ethernet Communication Port	One RJ45 connector, Modbus UDP
Refresh Rate	100 ms
Power Supply	Self-powered via L1-N
Protection Category	IP20
Material & Color	Polycarbonate, blue (RAL5012)
Dimensions	90 x 71 x 59 mm (3.5 x 2.8 x 2.3 in)
Weight	370 g (including packaging)
Operating Temperature	-10 to +55 °C
Storage Temperature	-20 to +70 °C
Relative Humidity	< 90% non-condensing
Altitude	Up to 2000 m (6562 ft)
Mains Supply Voltage Fluctuations	±0.1 Vin
Overvoltage Category	Cat. III
Pollution Degree	2
Consumption	1.45 W / 3.1 VA

What's Included

• Victron VM-3P75CT Energy Meter with 3 input terminal blocks
• 3x Split-core current transformers, wired and ready for connection
• Current transformer wires (length: 640mm / 25.3")
• 2x VE.Can terminators

Installation & Setup

The VM-3P75CT is designed for straightforward installation, especially in marine settings where space and reliability are crucial. The split-core current transformers allow for easy clamping around existing cables without the need for disconnecting power. Once installed, the energy meter operates out of the box as a grid meter for systems equipped with Victron’s MultiPlus or Quattro devices.

For firmware updates and advanced configuration, refer to the Quick Guide (PDF). Use the VictronConnect app to adjust settings such as device role and IP configuration, ensuring seamless integration with your boat’s network.

Monitor Your Energy Usage

Track your vessel’s power consumption in real-time with data displayed on compatible GX devices like the Cerbo GX or Ekrano GX. Additionally, access your energy metrics through the VictronConnect app and the VRM Portal, allowing for comprehensive energy management both onboard and remotely.

Support & Warranty

Please contact your dealer for any returns, repairs, or support issues related to this product.
