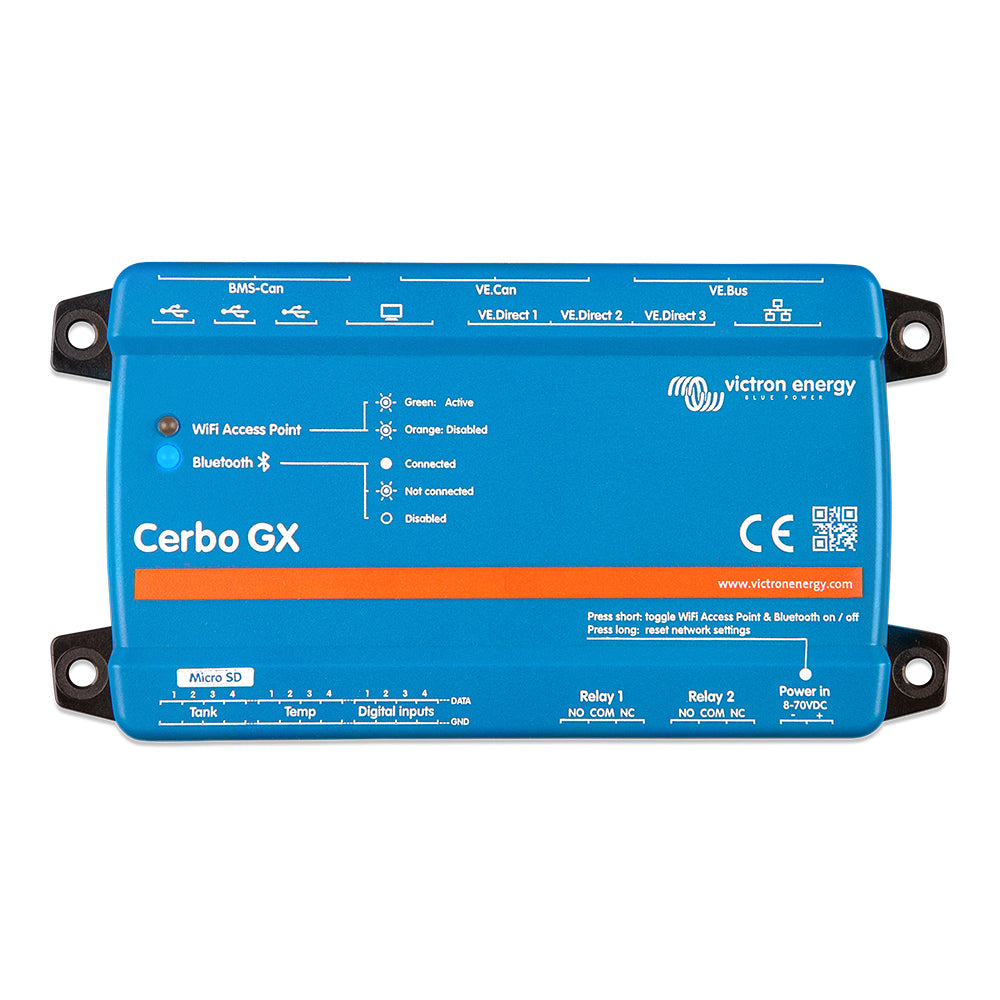

Victron Cerbo GX MK2

The Victron Cerbo GX MK2 is your ultimate solution for advanced energy management on board. Designed specifically for marine and boating applications, this robust communication center enhances connectivity, reliability, and control, ensuring your vessel's energy systems operate seamlessly and efficiently.

Key Features for Marine Applications

• Dual VE.Can Ports: Features two fully functional VE.Can ports (VE.Can 1 and VE.Can 2), replacing the single VE.Can and BMS-Can ports found in previous models, providing enhanced connectivity for marine energy setups.
• Isolated VE.Can 1 Port: The first VE.Can port is now isolated, improving system stability and compatibility with advanced marine BMS systems like Lynx Smart BMS.
• Optimized RJ-45 Sockets: Rotated by 180 degrees for easier cable management in tight marine environments.
• Triple USB Host Ports: All three USB ports are fully operational, allowing greater flexibility for connecting marine peripherals without sacrificing functionality.
• Advanced Digital Inputs: Capable of pulse counting, enabling more precise monitoring and control of your marine energy system.

Comprehensive Monitoring & Control

Stay informed and in control with real-time monitoring of critical system parameters on your vessel. Track battery state of charge, power consumption, and energy generation from solar panels, generators, and mains. Easily monitor tank levels and temperature measurements, control shore power input limits, automate generator start/stop functions, and adjust system settings remotely. Receive alerts, perform diagnostics, and resolve issues from anywhere, ensuring hassle-free energy management while at sea.

Optimize System Performance

The Cerbo GX MK2 ensures your marine energy system operates at peak efficiency by continuously optimizing the performance of all connected components. With two fully functional VE.Can ports—VE.Can 1 (isolated) and VE.Can 2 (non-isolated)—you can seamlessly integrate advanced systems like Lynx Smart BMS and RV-C devices, ensuring reliable and efficient energy management on your vessel.

Expand Your Control Interface

Enhance your vessel’s usability with the optional GX MK2 Touch 50 display. This sleek, 5-inch waterproof touchscreen provides an immediate overview of your energy setup and allows for quick adjustments to settings. Its top-mountable design and easy installation offer flexibility in creating a streamlined and professional dashboard suited for marine environments.

Effortless Installation & Configuration

Designed with marine installers in mind, the Cerbo GX MK2 features a DIN-Rail mount option (DIN35 adapter not included) for secure and organized installation on your vessel. The separate touchscreen can be easily bolted to a dashboard without the need for custom cut-outs, unlike previous models like the Color Control GX MK2. Simplify your setup with a single-cable connection and take advantage of the new Bluetooth feature for quick and straightforward configuration via the VictronConnect app.

Master Any Marine Energy Challenge

The Cerbo GX MK2 is versatile enough to handle a wide range of marine applications, from sailboats and powerboats to yachts and emergency vessels. Automatically manage generator operations, maintain battery health for energy storage systems, and efficiently utilize excess solar power for self-consumption to save on energy costs. Ensure vital systems on your boat remain operational, making the Cerbo GX MK2 an indispensable tool for reliable marine energy management.

Technical Specifications

Feature	Specification
Remote Console	Yes
Buzzer	Yes
VE.Direct Ports	3 (always isolated)
VE.Bus Ports	2 paralleled RJ45 sockets (always isolated)
VE.Can Ports	VE.Can 1 (isolated) & VE.Can 2 (non-isolated)
USB Ports	3 USB Host ports
Ethernet	10/100 RJ45 socket (isolated except for shield)
WiFi	Built-in
Bluetooth Smart	Yes
Micro SD Card Slot	Supports SDHC cards up to 32GB
Second CAN-bus Port (BMS-Can)	Yes
Built-in RS485	No
Programmable Relay	2 x NO/NC (8), DC up to 30VDC: 6A, DC up to 70VDC: 1A, AC: 6A, 125VAC
Resistive Tank Level Inputs	4
Temperature Sense Inputs	4
Country of Origin	Same as part# BPP900450110
Digital Inputs	4

Performance Specifications

Specification	Detail
CPU	Dual-core
RAM	1GB
Max. VE.Direct Devices	15

Additional Specifications

Specification	Detail
Supply Voltage	8 - 70 VDC
Power Consumption	2.5 to 5 W
Mounting Options	Wall or DIN rail (35mm)
Dimensions (H x W x D)	478 x 154 x 48 mm
Operating Temperature	-20°C to +50°C
Battery Backup Clock	Yes
5V Output	No

Compliance & Standards

• Safety: IEC 62368-1
• EMC: EN 301489-1, EN301489-17
• Automotive: ECE R10-6

Customer Support

For any returns, repairs, or support related to the Victron Cerbo GX MK2, please reach out to your local marine dealer. Our dedicated support team is here to assist you with all your maritime energy management needs.

Product Details

• Type: Chargers
• Box Dimensions: 3"H x 6"W x 8"L
• Weight: 0.9 lbs
• UPC: 8719076057833

Download the Quick Guide (PDF)
