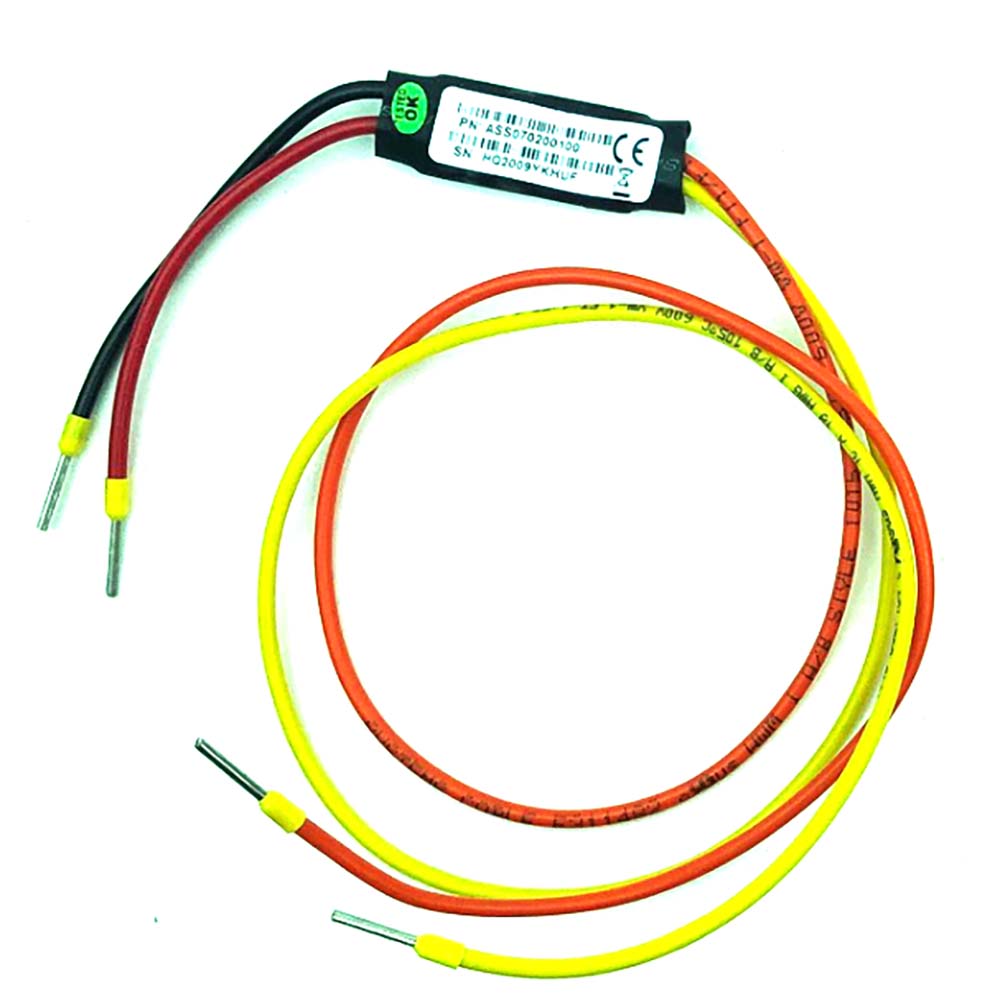

Victron Cable f/Smart BMS CL 12-100 to MultiPlus

Ensure seamless integration between your Smart BMS CL 12-100 and MultiPlus power systems on your vessel with our high-quality connectivity cable. Designed specifically for marine and boating applications, this cable enables efficient control and monitoring of your power setup, enhancing reliability and performance on the water.

Compatibility

This cable is compatible with the following MultiPlus models:

• MultiPlus 500VA – 1600VA
• MultiPlus Compact 800VA – 2kVA
• MultiPlus-II

It is specifically designed to work with BMS products that do not feature a VE.Bus interface, such as the Smart BMS CL 12-100 and the small BMS models. This ensures that you can control your MultiPlus systems effectively using the available Load/Charge Disconnect and Load/Charger outputs.

Wiring Instructions

Proper wiring is crucial for the optimal performance of your power management system. Follow the instructions below based on your MultiPlus model:

MultiPlus Model	Black Wire Connection	Red Wire Connection
MultiPlus 500VA-1200VA	ON terminal	(+) terminal
MultiPlus Compact 800VA-2kVA	Middle terminal	Right (IN) terminal
MultiPlus-II	Lower (-) terminal	Upper (+) remote on-off terminal

Operating Instructions

To ensure your MultiPlus operates correctly, both the Load/Charge Disconnect outputs of the Smart BMS CL 12-100 and the Load/Charger outputs of the small BMS must be in the ‘High’ state. In the event of a shutdown due to low battery voltage, you can reset the system by:

1. Running the alternator, or
2. Using a battery charger on the primary side of the BMS.

Once reset, the MultiPlus will automatically switch on and begin charging, provided it is connected to an AC power source.

Support and Resources

Please contact your dealer for any returns, repairs, or support issues related to this product.

Download the Quick Guide (PDF)
