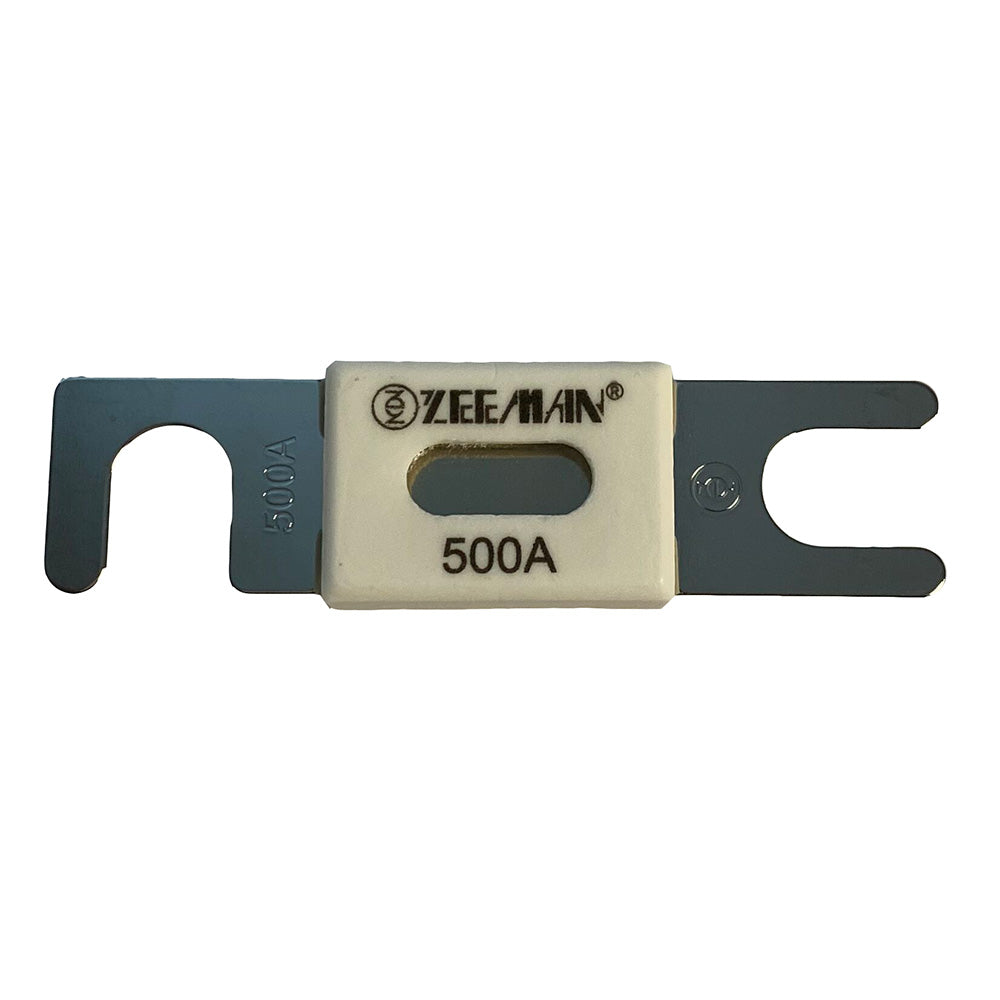

Victron ANL-Fuse 500A/80V f/48V Products (Package of 1)

Ensure the safety and reliability of your marine electrical system with the ANL-Fuse 500A/80V. Specifically designed for 48V applications, this high-performance fuse offers superior protection against short-circuits and overcurrent situations, making it an essential component for any boating setup.

Key Features

• High Current Rating: Capable of handling up to 500 amps, suitable for demanding marine electrical systems.
• Fast-Acting Protection: Quickly responds to overcurrent conditions to prevent damage to your vessel's electrical components.
• Robust Construction: Bolt-down design ensures secure installation even in harsh marine environments.
• Enhanced Breaking Capability: Superior short-circuit breaking ability compared to standard MEGA fuses.

Specifications

Parameter	Details
Max Current Rating	500 amps
Max Voltage Rating	80 volts
Approximate Voltage Drop	100 mV
Cold Resistance	0.25 mΩ
Amperage	500A
Fuse Type	ANL
Type	Fuses
Box Dimensions	1" H x 6" W x 7" L
Weight	0.05 lbs

Installation Guide

The ANL-Fuse 500A/80V is designed for easy installation in marine environments. Follow these steps to ensure proper setup:

1. Turn Off Power: Ensure that the main power supply is turned off before installation.
2. Locate Fuse Panel: Identify the appropriate fuse panel in your vessel's electrical system.
3. Secure the Fuse: Use the bolt-down method to firmly attach the fuse, ensuring a stable connection.
4. Connect Wiring: Attach the incoming and outgoing wires to the fuse terminals, ensuring proper polarity.
5. Test the System: Restore power and verify the functionality of the fuse using a multimeter.

For detailed instructions, refer to the Quick Guide (PDF).

Why Choose Victron Energy ANL Fuses?

Victron Energy is renowned for its commitment to quality and reliability in marine electrical components. The ANL-Fuse series is engineered to provide:

• Durability: Built to withstand the demanding conditions of marine environments.
• Precision: Accurate current ratings to match your vessel's specific power requirements.
• Safety: Enhanced protection mechanisms to safeguard your electrical systems and appliances.

Support and Warranty

Please contact your dealer for any returns, repairs, or support issues related to this product. Victron Energy stands behind the quality of their fuses, ensuring you receive reliable support for your marine electrical needs.

Additional Resources

Enhance your understanding of the ANL-Fuse 500A/80V by accessing the following resources:

• Quick Guide (PDF)
• Brochure (PDF)
