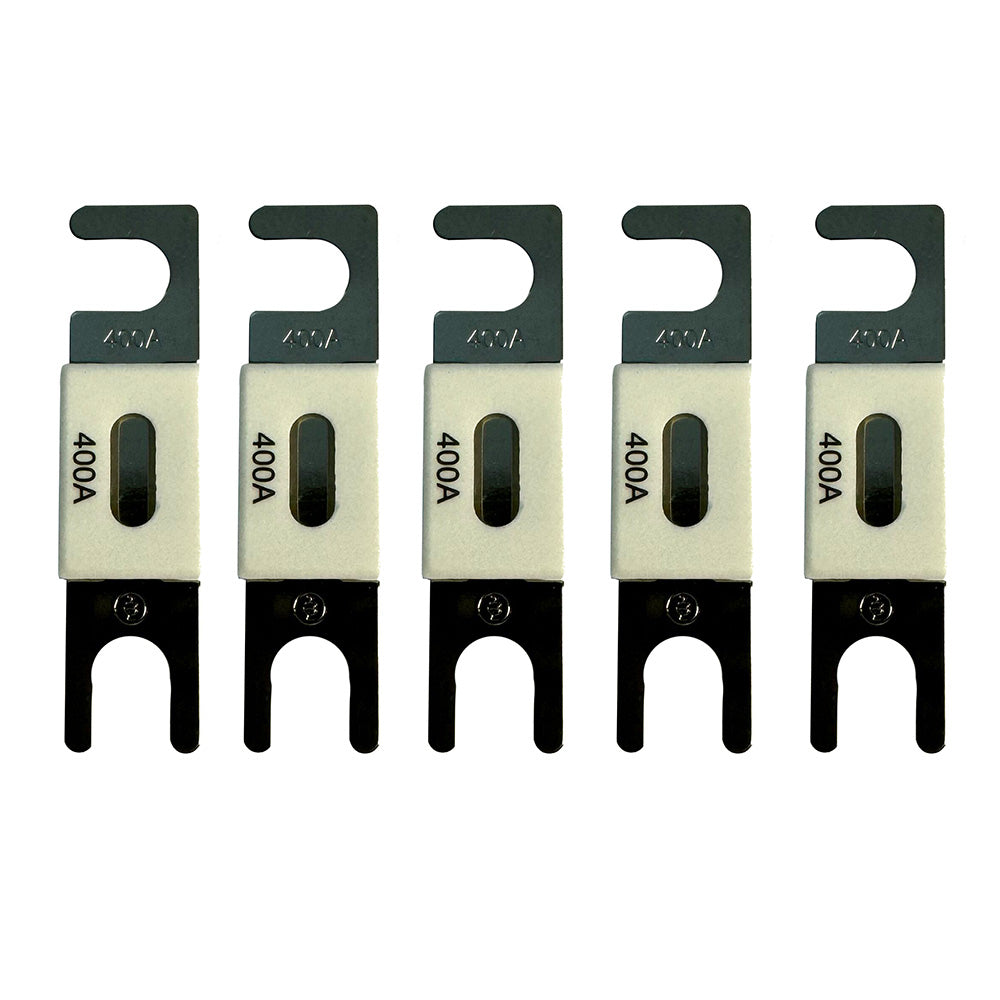

Victron ANL-Fuse 400A/80V f/48V Products (Package of 5)

Ensure the safety and reliability of your marine electrical systems with Victron Energy's ANL-Fuse 400A/80V package. Designed specifically for 48V marine applications, these bolt-down fast-acting fuses provide superior protection against short circuits, ensuring your boats and marine equipment operate smoothly even in demanding environments.

Key Features

• Optimized for 48V marine and boating electrical systems
• Bolt-down fast-acting design for secure installation
• Superior short-circuit breaking capability compared to MEGA fuses
• Pack includes FIVE 400-amp ANL fuses for comprehensive protection

Technical Specifications

Parameter	Specification
Amperage	400A
Fuse Type	ANL
Max Current Rating	400 Amps
Max Voltage Rating	80 Volts
Approximate Voltage Drop	125 mV
Cold Resistance	0.3 mΩ
Box Dimensions	1" H x 5" W x 6" L
Weight	0.3 lbs
UPC	8719076061786

Installation

These ANL fuses are designed for easy, bolt-down installation, ensuring a secure fit within your marine electrical systems. Their fast-acting nature allows for immediate response to short circuits, safeguarding your equipment from potential damage.

Support & Returns

Please contact your dealer for any returns, repairs, or support issues related to this product.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
