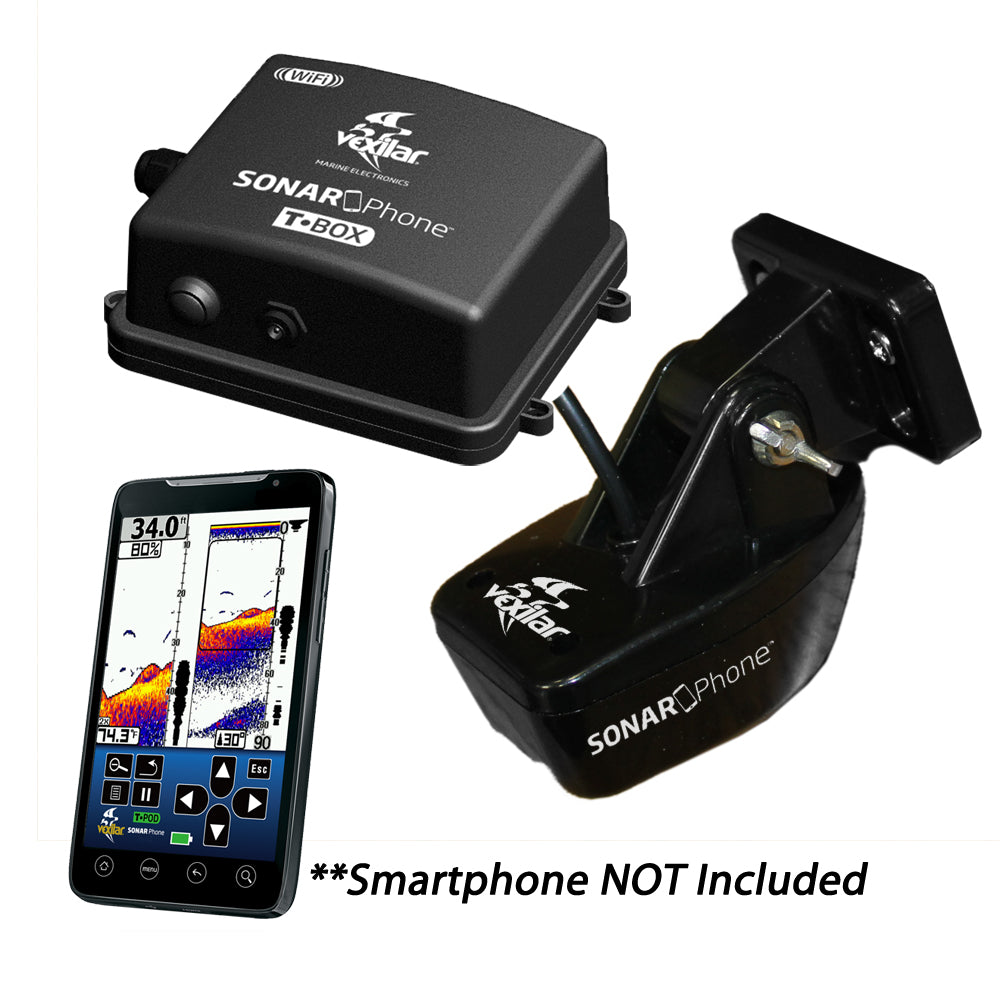

Vexilar SP200 SonarPhone T-Box Permanent Installation Pack

Enhance your boating experience with the SP200 SonarPhone T-Box Permanent Installation Pack, featuring advanced dual beam Wi-Fi fishfinder technology. Seamlessly integrate this powerful sonar system into your vessel and enjoy real-time underwater insights directly on your smartphone or tablet.

Advanced Sonar Technology

The SP200 Permanent Mount system is engineered for easy installation in boats with access to a 12-volt power supply (power supply not included). SonarPhone revolutionizes your smart device by transforming it into a high-performance sonar system, comparable to top-tier marine sonar equipment.

Utilizing patented Wi-Fi signal technology, SonarPhone transmits sonar data to your smartphone or tablet without the need for cellular coverage, ensuring reliable performance anywhere in the world. The T-BOX creates its own Wi-Fi hotspot, allowing you to share sonar data with multiple users simultaneously. The free SonarPhone App is available for download on both the App Store and Google Play, supporting Android and iOS devices.

Powerful Performance

Experience depths of up to 240 feet with the robust SP200 T-Box system, equipped with a 200kHz dual-beam (20°/40°) skimmer-style transducer and temperature sensor. The versatile skimmer-style transducer can be mounted externally on your boat's transom for high-speed operation or internally within fiberglass hulls, though internal mounting sacrifices the temperature sensor functionality.

The SP200 package also includes a 12V car plug/USB adapter, enabling you to power your tablets or recharge your phones on the go.

Key Features

• Compatibility: iOS 4.3 (iPhone, iPad) and Android 2.0
• Free App Download: Available on App Store and Google Play
• Automatic Ranging: Easy depth measurement
• Water Temperature & Depth Indicator: Real-time environmental data
• Audible Alarms: Alerts for fish presence, shallow waters, and low battery
• Fish Icon: Visual representation of fish activity
• Zoom Bottom Track: Enhanced tracking capabilities
• Noise Rejection: Clear sonar signals
• Surface Clarity: Improved visibility of underwater structures
• Battery Indicator: Monitor device power levels
• Warranty: 1-year limited warranty

Technical Specifications

Specification	Details
Depth Range Max	240' (73M)
Depth Range Min	2' (0.6M)
Sonar Frequency	200/83 KHz Dual Beam
Cone Angles	20° or 40° Dual Beam
Sonar Power	12V DC
Audible Alarms	Fish, Shallow, Low Battery
Operational Temperature	-20°C to 80°C
Wireless Range	100 Yards (90M)

Additional Specifications

• Transducer Type: Transom Mount
• Transducer Included: Yes
• Box Dimensions: 5"H x 9"W x 11"L | Weight: 1.95 lbs
• UPC: 052762130112

Product Documentation

Download Brochure (PDF)
