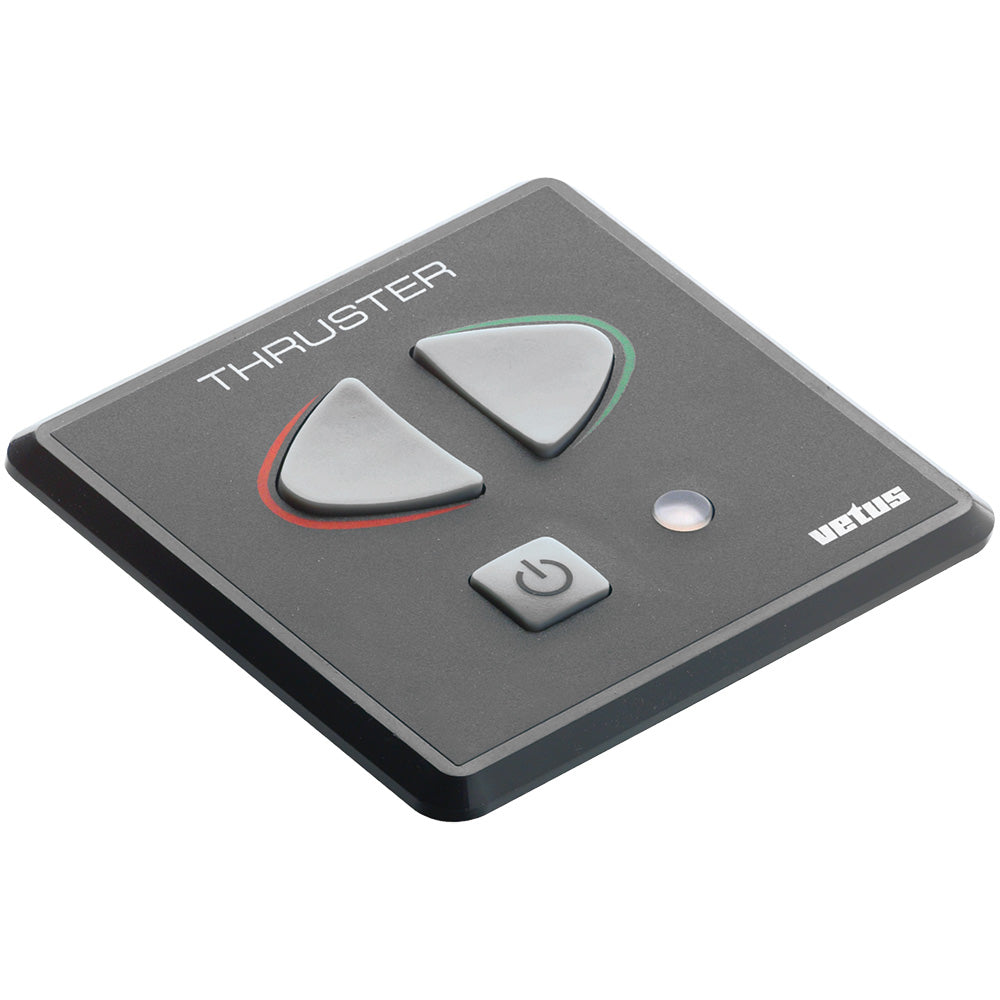

VETUS Bow Thruster Panel w/Buttons & Time Lapse

Enhance the maneuverability of your vessel with our advanced Bow Thruster Panel featuring intuitive buttons and a built-in time lapse function. Designed specifically for marine applications, this single-touch panel seamlessly operates Vetus bow or stern thrusters, ensuring precise control and reliability in various boating conditions.

Key Features

• Prevents accidental or unauthorized operation for enhanced safety
• Power indicator light to monitor panel status
• Overload protection for the control circuit, safeguarding your equipment
• Integrated time lapse device that automatically reverses rotation direction
• User-selectable automatic shut-off after 30 minutes of inactivity, configurable during installation
• Continuous operation protection: triggers a warning LED and buzzer after 2 minutes of nonstop use, then automatically shuts off the thruster. The panel resets itself after 5 seconds
• IP66 rated watertight construction, ensuring durability in harsh marine environments
• Compact dimensions: 85mm x 85mm, suitable for various installations

Technical Specifications

Dimension	85mm x 85mm
Waterproof Rating	IP66
Compatibility	Vetus Bow and Stern Thrusters
Wiring Harness	BP29 Series Quick Connectors
Additional Controls	Supports daisy chaining for multiple control stations

Installation & Support

Our Bow Thruster Panel is designed for easy installation with supplied quick connectors compatible with BP29 series wiring harnesses. Whether you're upgrading your existing system or setting up a new installation, the panel's daisy chaining capability allows for multiple control stations, providing flexibility and convenience onboard.

For detailed installation instructions and troubleshooting, please refer to our Quick Guide (PDF).

Please note: This product cannot be returned to the original point of purchase. For any issues or concerns, contact the manufacturer directly.
