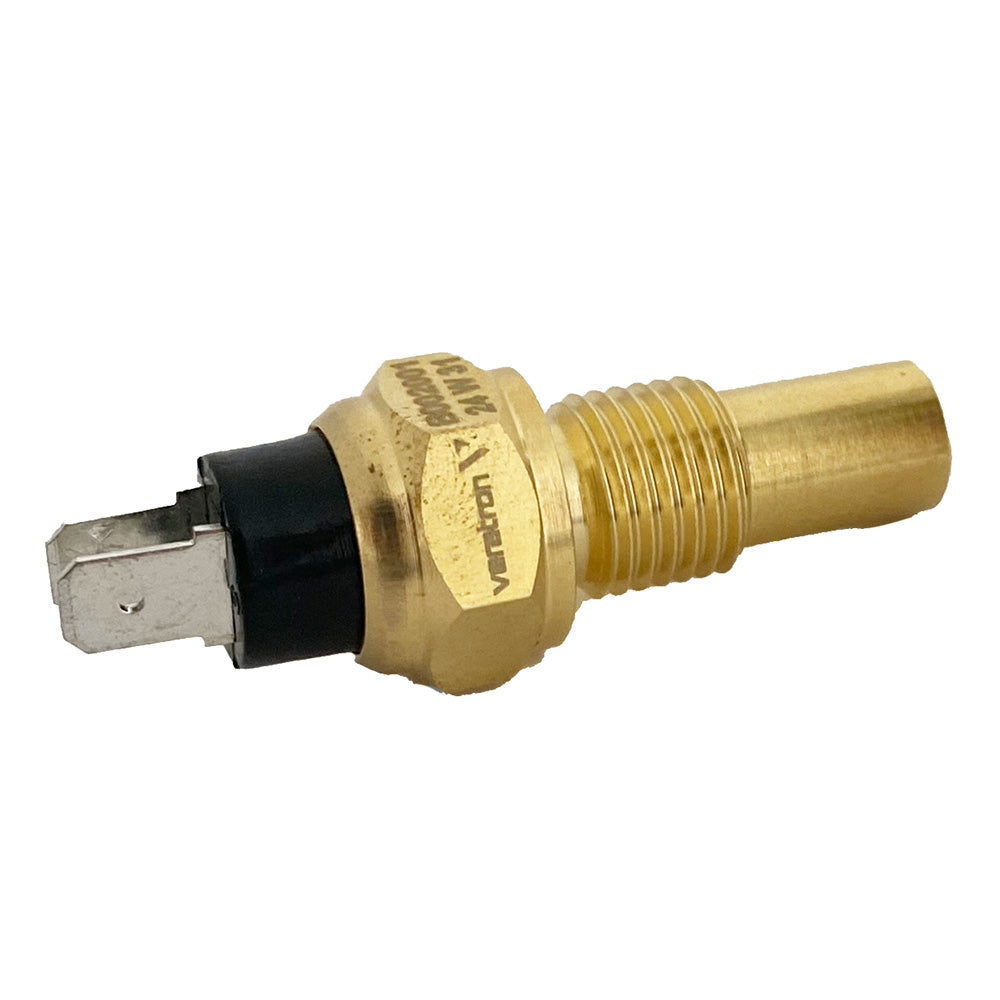

Veratron Water Temperature Sensor - M14x1.5 Thread - 120C Temp Range

Ensure optimal engine performance and reliability on your vessel with our premium Water Temperature Sensor. Specifically designed for marine and boating applications, this sensor provides accurate monitoring of oil and coolant temperatures, helping you maintain safe operating conditions even in the most demanding environments.

Features

• Function: Monitors oil temperature and coolant temperature
• Length: 28.5mm (1-1/8")
• Thread: M14x1.5 for secure and easy installation
• Calibration: Precisely calibrated up to 120°C
• Measurement Range: Capable of measuring temperatures up to 120°C
• Output Signals: Provides resistive output for reliable data transmission
• Protection Rating: IP67 rated for waterproof performance
• Additional Features: Includes an insulated ground pin for enhanced safety

Technical Specifications

Parameter	Specification
Temperature Range	Up to 120°C
Thread Size	M14x1.5
Sensor Length	28.5mm (1-1/8")
Housing Material	Durable Brass
Output Type	Resistive
Ingress Protection	IP67 Waterproof
Calibration Point	120°C
Ground Pin	Insulated for safety

Installation

Installing the Water Temperature Sensor is straightforward, thanks to its M14x1.5 threading and compact size. Ensure the sensor is securely fastened to provide accurate temperature readings and prevent leaks. The insulated ground pin enhances safety by minimizing the risk of electrical shorts.

Applications

Perfect for a wide range of marine applications, this temperature sensor is essential for monitoring engine oil and coolant temperatures. Whether you're outfitting a recreational boat or managing a commercial marine vessel, reliable temperature monitoring helps prevent engine overheating and prolongs engine life.

Download the Quick Guide (PDF)
