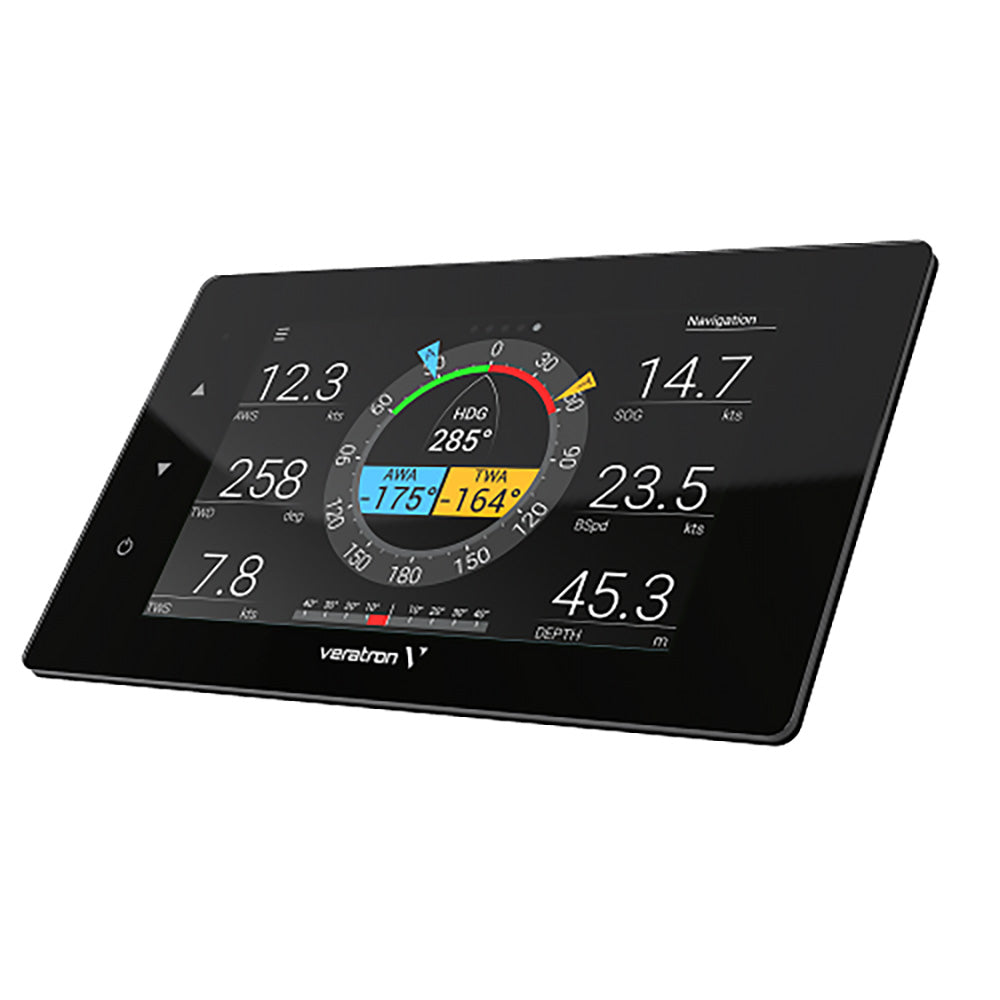

Veratron VMH 70 7" Sunlight Readable IPS TFT Touchscreen Display

The VMH 70 7" Sunlight Readable IPS TFT Touchscreen Display is the ultimate solution for marine enthusiasts seeking precise control and real-time monitoring of their vessel's vital systems. Engineered for reliability and ease of use, this advanced display ensures seamless management of multiple engines and onboard systems, enhancing your boating experience.

Unmatched Performance and Flexibility

The VMH 70 stands out with its ability to handle extensive and complex data seamlessly. Powered by a real-time operating system, it provides immediate access to essential engine information right after power-up. Whether you're managing up to four engines via NMEA2000 or two engines through J1939 or analog inputs, the VMH 70 offers unparalleled configurability to suit your specific needs.

Intuitive Display and User-Friendly Interface

Featuring a 7" sunlight-readable IPS TFT touchscreen, the VMH 70 ensures clear visibility in any lighting condition. The embedded light sensor automatically adjusts the screen brightness to reduce eye strain, providing optimal readability whether you're navigating in bright daylight or at night. The customizable GUI screens allow you to tailor the display to show grouped information such as engine performance, battery status, fuel levels, water and waste management, tank levels, rudder and trim controls, onboard systems, navigation, and weather data.

Enhanced Connectivity and Monitoring

Equipped with two camera inputs, the VMH 70 allows you to monitor the engine compartment and keep an eye on the main deck simultaneously, enhancing safety and operational control during navigation and maneuvering. The embedded NMEA 2000 gateway consolidates all sensor readings and alarms, transmitting them to your external multi-functional display and eliminating the need for additional converters.

Robust Build and Marine-Ready Design

The VMH 70 is built to withstand harsh marine environments with its aluminum housing and mineral glass front lens. It operates reliably in high-temperature conditions and boasts an IPX7 protection rating, making it suitable for exposed installations. The slim panel installation profile ensures a seamless fit into your boat's dashboard.

Key Features

• Veratron VMH premium instruments series
• 7" sun-readable IPS TFT touchscreen display
• Slim panel installation profile
• Mineral glass front lens for durability
• Reliable performance in high-temperature environments
• IPX7 protection rating for exposed installations
• NMEA 2000 certified for seamless integration
• Fully configurable analog inputs with NMEA 2000 gateway
• Customizable startup screen for personalized experience
• Dual SAE J1939 CAN ports for versatile connectivity
• Easily customizable GUI screens for tailored data display

Technical Specifications

Nominal Voltage	12/24V
Operating Voltage	9-32V
Housing	Aluminum case with mineral glass front lens
Mounting	Front panel mount via mounting kit
Connectors	2x Molex MX-150, 12 pins 1x DeviceNet M12, 5 pins (NMEA 2000) 2x TE SuperSeal 1.5, 3 pins (EasyLink) 1x M12, 4 pins (Video)
Compliance	CE, UKCA, Reach, RoHS

What's Included

• VMH 70 Display
• Sun Cover
• Panel Mounting Kit
• Engine 1 Power and Data Cable
• Engine 2 Data Cable
• EasyLink Extension Cable

Note: This product is sold individually. It may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Additional Specifications

Box Set	No
Gauge Size	7"
Gauge Type	Multifunction
Series	VMH
Voltage - Input Range (Volts)	12/24V
Box Dimensions	4"H x 8"W x 12"L
Weight	3 lbs
UPC	7640190290084

Owner's Manual (PDF)
Brochure (PDF)
