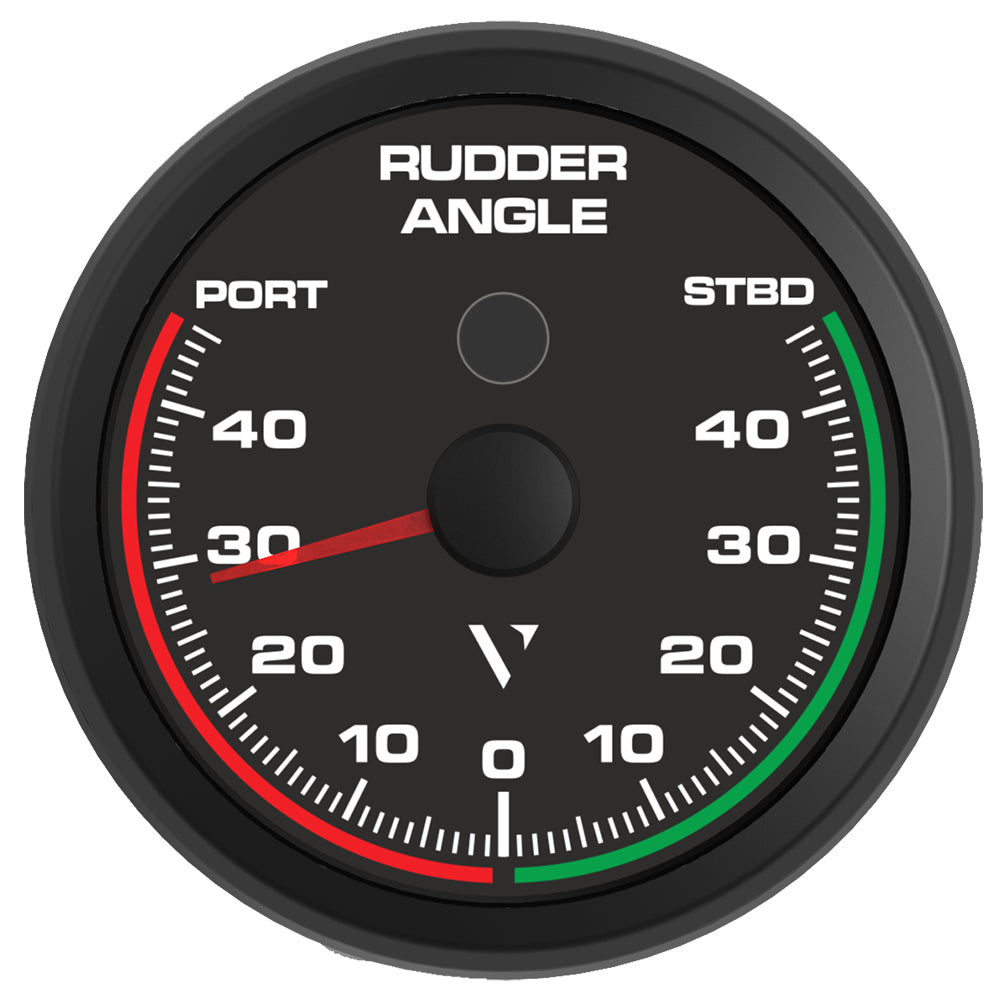

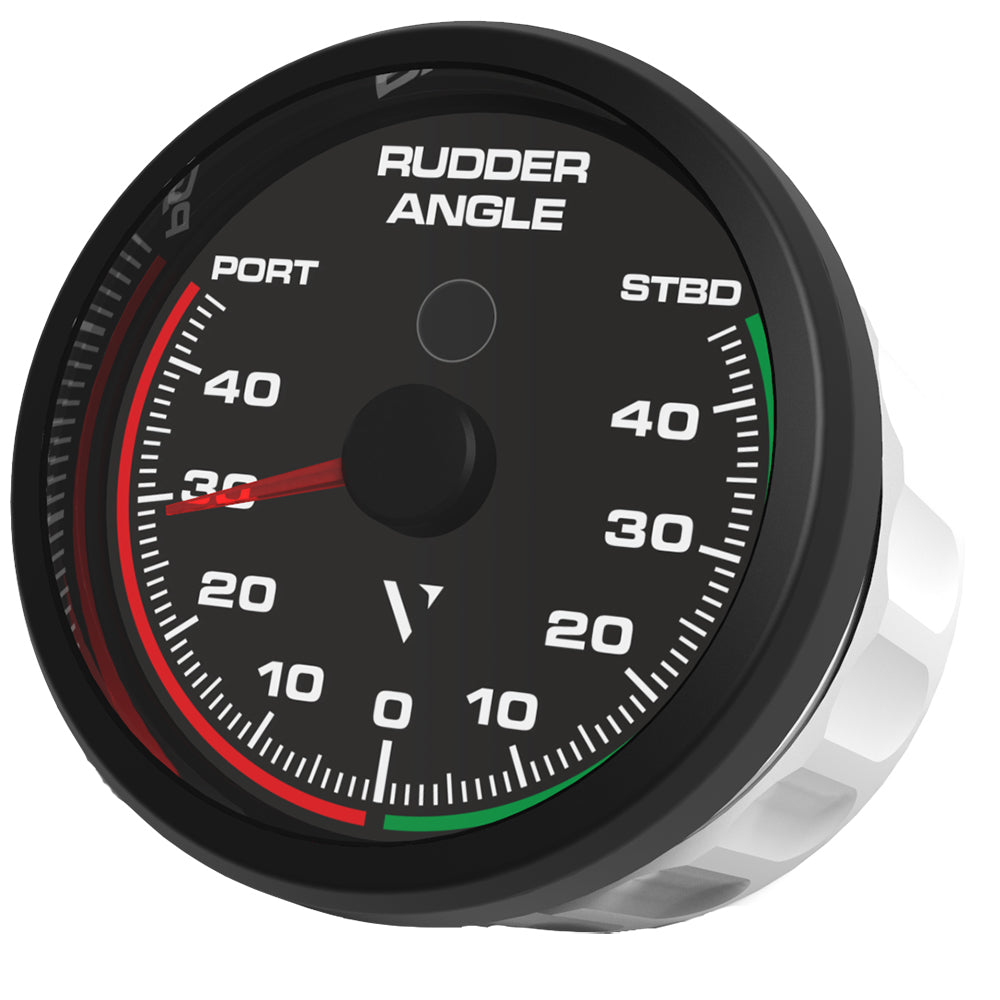

Veratron Professional 85MM (3-3/8") Rudder Angle Indicator f/NMEA 0183

The Professional 85MM (3-3/8") Rudder Angle Indicator for NMEA 0183 is a high-performance gauge designed specifically for marine applications. Engineered to seamlessly integrate into standard 85mm panel cuts, this indicator offers exceptional readability and reliability, making it an ideal choice for both commercial and recreational vessels.

Key Features

• NMEA 0183 Compatibility: Easily interfaces with most professional autopilots, ensuring smooth integration with your vessel's navigation systems.
• Large 270° Dial Scale: Provides clear and accurate rudder angle readings, enhancing situational awareness while at sea.
• Red LED Illumination: Ensures visibility in various lighting conditions, contributing to safer navigation during night or low-light scenarios.
• Dual Voltage Support: Operates efficiently on both 12V and 24V systems, offering flexibility for different marine electrical setups.
• Durable Construction: Built to withstand harsh marine environments with an extended operating temperature range from -30°C to +80°C and IPX7 protection class.
• Multiple Sensor Compatibility: Supports both 3-180 Ohm analog and 0-5V rudder sensors, allowing for versatile installation options.
• Data Repeating Capability: Can relay rudder angle data via NMEA 0183 to multiple gauges connected in series, facilitating comprehensive monitoring.
• User-Friendly Calibration: Equipped with an embedded infrared (IR) pushbutton for easy fine-tuning of predefined calibration settings.

Technical Specifications

What’s Included

• Rudder Angle Gauge
• Wire Harness
• Mounting Spinlock
• Safety Instructions

Note: Sold individually.
