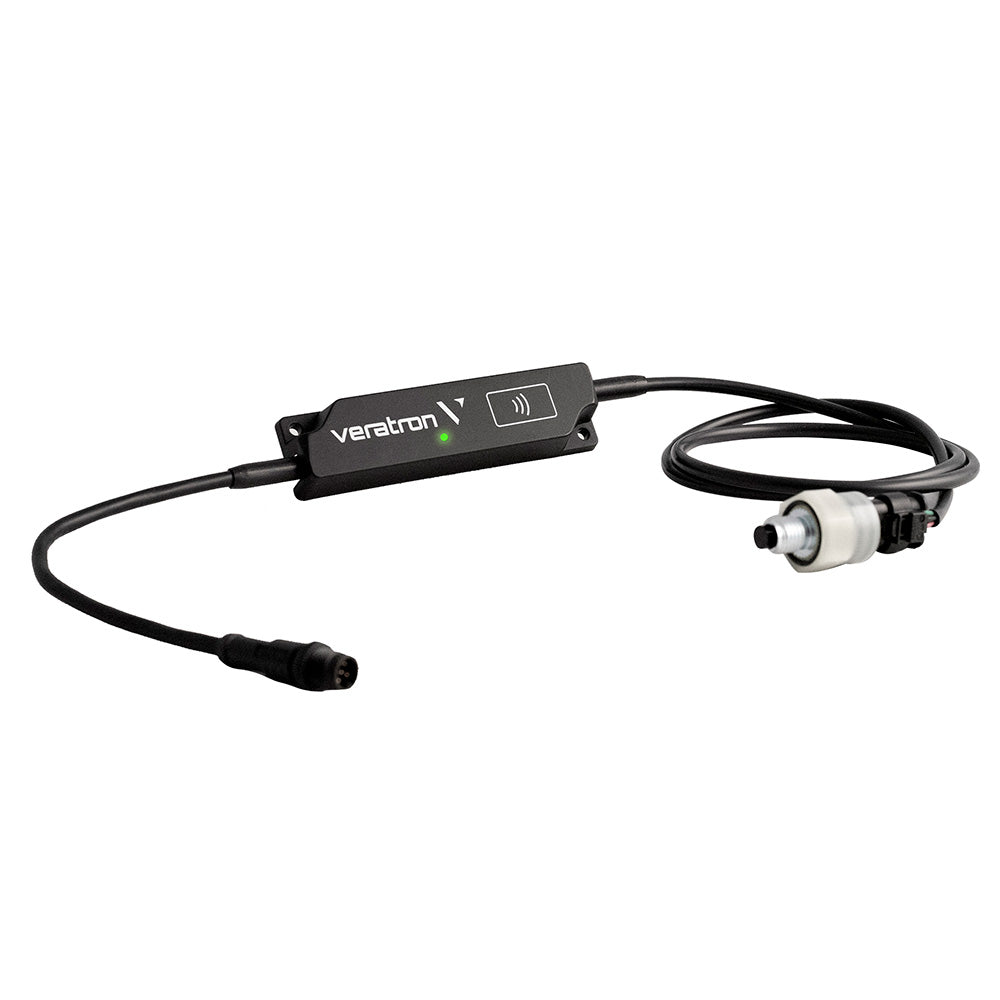

Veratron LinkUp Intelligent Temperature Pressure

The LinkUp Intelligent Temperature & Pressure Sensor is an essential component for marine engines, providing accurate real-time data on engine oil temperature and pressure. Designed specifically for the demanding marine environment, it ensures your vessel's engine operates smoothly and efficiently by seamlessly integrating with the LinkUp system using the NMEA 2000® standard.

Key Features

• Interface compatible with the latest electronic 2-in-1 sensor
• Monitors oil temperature and pressure within a single compact sensor
• Built with a rugged and reliable design inspired by the automotive industry, ideal for marine conditions
• ASIC-controlled for enhanced performance and reliability
• PWM (Pulse Width Modulated) output efficiently transmits both pressure and temperature data

Technical Specifications

Specification	Details
Mounting Thread	M12
Protection Class	IP 69/K
Power Supply	5V provided by the LinkUp
Temperature Accuracy	± 1°K in the 135°C – 160°C range
Pressure Accuracy	± 0.2 bar (range 0.5 – 3 bar), ± 0.1 bar below, ± 0.3 bar above
Temperature Range	-40°C to +160°C
Pressure Range	0.5 to 10.5 bar
Cable Length	1 Meter

Why Choose LinkUp Intelligent Sensor for Your Boat?

Maintaining optimal engine performance is crucial for any marine vessel. The LinkUp Intelligent Temperature & Pressure Sensor offers boat owners a reliable solution to monitor engine conditions in real-time. Its automotive-grade design ensures durability against harsh marine environments, providing peace of mind during long voyages and challenging conditions.

Support and Documentation

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

• Owner's Manual (PDF)
• Brochure (PDF)
