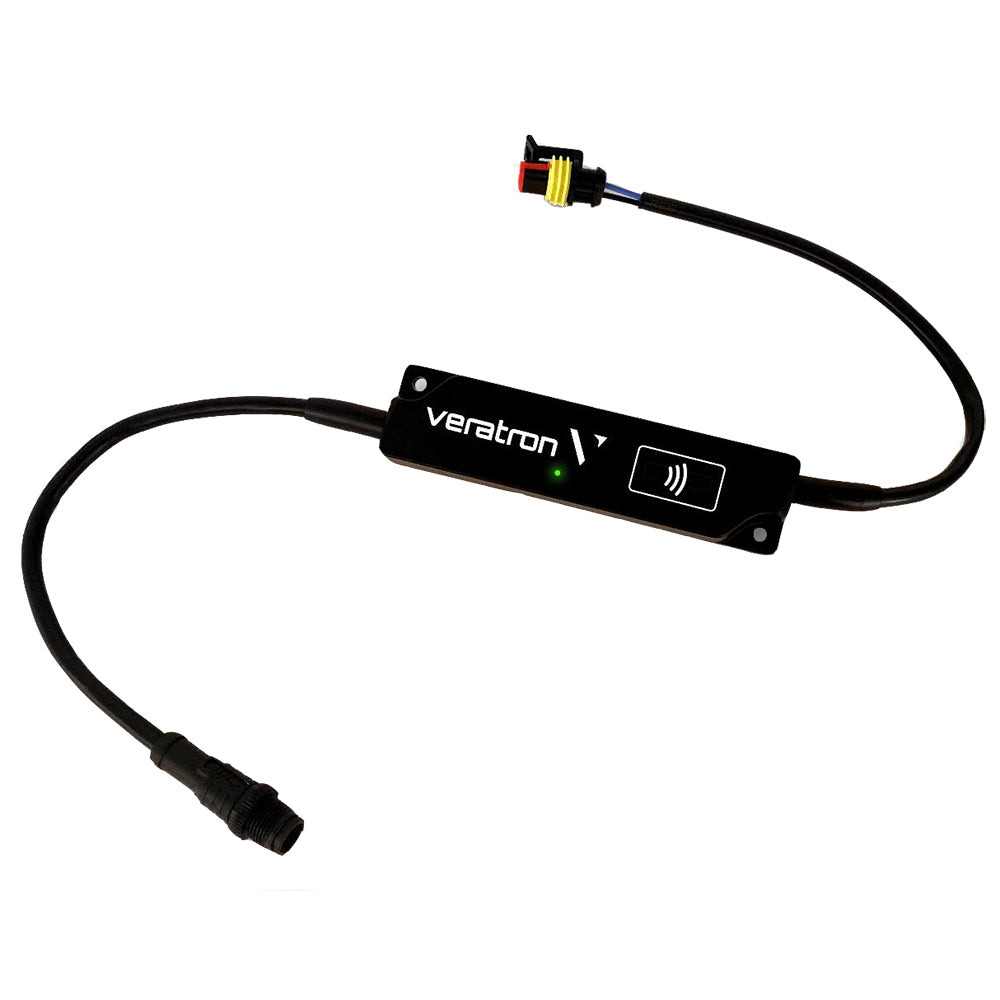

Veratron LinkUp Analog to NMEA 2000 Gateway

The LinkUp Analog to NMEA 2000 Gateway is an essential device for modern marine enthusiasts, seamlessly converting your vessel's engine and system data into the robust NMEA 2000 network used on boats today. Designed for easy installation and superior performance, this gateway ensures your boat's instrumentation communicates effectively, enhancing your on-water experience.

Product Overview

The resistive-type LinkUp gateway offers a straightforward solution to integrate your vessel and engine information with the NMEA 2000 network. By replacing the original wiring, the LinkUp Gateway not only simplifies installation but also supplies power to both the LinkUp device and connected sensors directly from the NMEA 2000 backbone, maintaining full compliance with NMEA 2000 certification standards.

Configuration is effortless with the LinkUp Configuration App available for both Android and iOS devices. Each gateway comes equipped with a built-in passive NFC antenna, allowing you to wirelessly set sensor parameters such as type, instance, and warning thresholds. Simply tap your mobile device against the LinkUp device to download data instantly.

Key Features

• User-Friendly Configuration: Manage settings through a wireless interface using the companion smartphone app.
• Compact Sensor Cabling: Sensor and NMEA 2000 cable lengths are both 25 cm, ensuring a tidy installation.
• Instant Parameter Download: Easily download sensor parameters by tapping your mobile device.
• Cross-Platform Mobile App: Available for both Android and iOS devices for versatile usage.
• Power-Efficient Programming: No additional power is required for programming the device.
• Certification Compliance: Fully compliant with NMEA 2000 certification, ensuring reliability and compatibility.
• Bi-Directional Communication: Supports programming interface and data recovery for enhanced functionality.

Supported Sensors

The LinkUp Gateway is compatible with a wide range of marine sensors, including:

• Fuel Level Sensors
• Oil and Boost Pressure Sensors
• Fresh and Waste Water Level Sensors
• Oil, Gear Oil, and Coolant Temperature Sensors
• Trim Tabs Sensors
• Rudder Angle Sensors

Technical Specifications

Specification	Details
Connectors	Standard M12 NMEA 2000 plug
Notification	LED Indicator
Operating Voltage	6 - 16.5V
Nominal Voltage	12 V (from NMEA 2000 network)
Ingress Protection	IPX7 Rated
Sensor Plug	Superseal Female 2 Pin
Counterpart Sensor Plug	Superseal Male 2 Pin

Note: This product is sold individually.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Resources

• Owner's Manual (PDF)
• Brochure (PDF)
