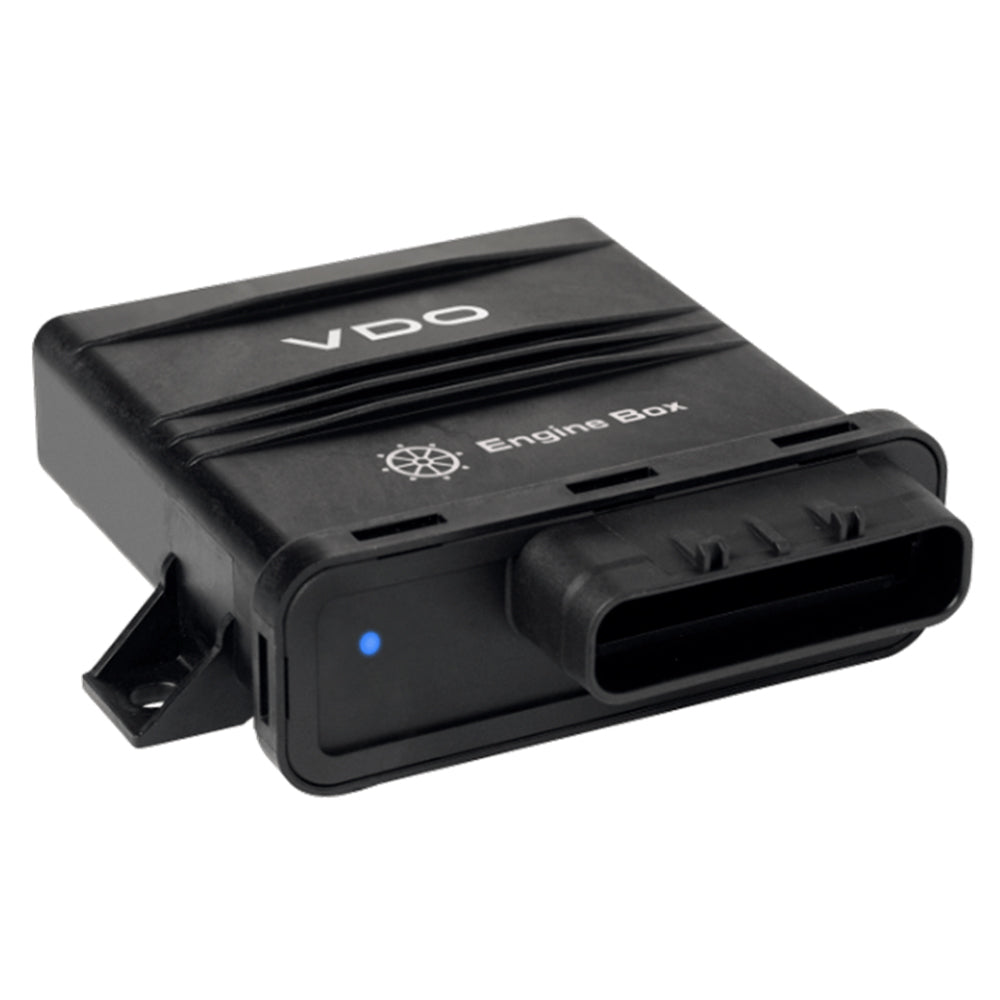

Veratron EngineBox - Double Engine

The EngineBox - Double Engine is a reliable marine engine monitoring system engineered to deliver precise data and enhance the management of dual-engine configurations on your vessel. Perfect for both modern and legacy marine engines, the EngineBox provides dependable performance and seamless integration with your boat's existing systems.

Product Overview

Expanding the functionality of the NavBox, the EngineBox supports multi-engine applications or operates as a standalone unit when navigation data isn't necessary. Featuring NMEA 2000® and J1939 CAN ports, the EngineBox ensures compatibility with a wide spectrum of marine engines, including those with fully analog operations. The device is equipped with analog input ports designed for RPM data, resistive sensors, and capacitive sensors, offering a comprehensive solution for marine engine monitoring.

Key Features

• Analog to NMEA 2000® Gateway: Effortlessly convert analog signals to NMEA 2000® for integrated data management.
• J1939 to NMEA 2000® Gateway: Enables communication between J1939 protocols and NMEA 2000® networks.
• Dual Configuration Models: Available in single engine and dual engine variants to suit your vessel's setup.
• Compact Design: Space-efficient enclosure ideal for the confined spaces of marine engine compartments.
• Status LED Indicators: Easily monitor the system's status at a glance.
• Wide Operating Temperature Range: Reliable performance from -40°C to +85°C, suitable for various marine environments.

Technical Specifications

Specification	Single Engine Model	Dual Engine Model
J1939 Ports	1x	2x
M12 5-pin NMEA 2000® Port	1x	1x
RPM Inputs (Frequency Range)	0–4 kHz	2x Inputs
Resistive Sensor Inputs	4x (0–400 Ohm)	8x (0–400 Ohm)
Current Inputs	2x (4–20 mA)	2x (4–20 mA)
Voltage Inputs	1x (0–5 V)	2x (0–5 V)
Voltage - Input Range	8-16 V
Gauge Type	Multifunction
Dimensions	4" H x 6" W x 6" L
Weight	1.45 lbs
UPC	7640178724433

Setup and Configuration

Configuring the EngineBox is easy with the included intuitive PC configuration tool, provided free of charge. This software simplifies the programming of inputs, allowing you to customize the EngineBox to meet your specific engine monitoring needs. Additionally, the EngineBox complies with ISO 8846:1990 standards, ensuring durability and reliability in the demanding environment of marine engine compartments.

Compatibility and Requirements

To effectively configure and operate the EngineBox, the following tools are required:

• Veratron Diagnostic Tool USB to NMEA 2000 (A2C3931270001): Essential for establishing a connection between your PC and the EngineBox.
• Veratron Configuration Software: Provides the interface for programming and customizing the EngineBox settings.

What’s Included

• Engine Cable
• Cable Harness
• Safety Instructions

Please Note: The EngineBox is sold individually and cannot be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.

Additional Specifications

Specification	Details
Gauge Size	N/A
Box Set	No
Voltage - Input Range (Volts)	8-16 V
Gauge Type	Multifunction
Box Dimensions	4" H x 6" W x 6" L
Weight	1.45 lbs
UPC	7640178724433

Download Resources

Download the Brochure (PDF)
