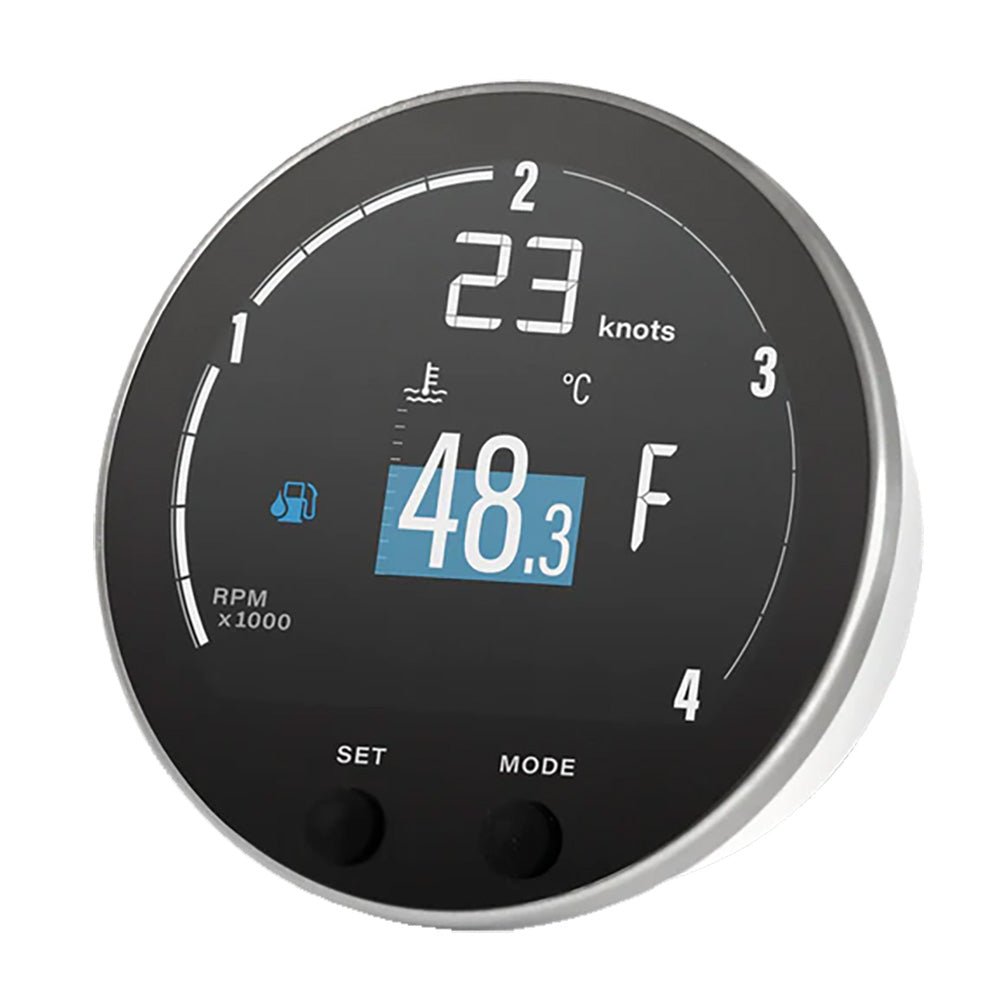

Veratron 85mm (3-3/8") VMH-35D Diesel Multifunction Gauge

Enhance your boat's monitoring capabilities with the VMH-35D Diesel Multifunction Gauge. Designed specifically for marine applications, this compact and versatile gauge provides comprehensive data on your diesel engine, battery, fuel tank, and GPS, ensuring you stay informed and in control on the water.

Key Features

• High-Performance Embedded GPS: Provides accurate speed, position, and heading data to keep you navigated and on track.
• Configurable Dial Scale: Choose between 3000 or 4000 RPM settings to match your engine's requirements.
• Wide Data Display: Monitor essential metrics from your engine, battery, fuel tank, and GPS all in one place.
• Advanced Alarm System: Receive alerts from the SAE J1939 bus or set custom alarms via the embedded menu to prevent engine issues.
• EasyLink Connectivity: Expand your dashboard with up to 16 VMH-14 satellite displays, keeping your sensitive data organized and accessible.
• Dual Voltage Support: Compatible with both 12V and 24V marine electrical systems for versatile installation options.
• Durable Construction: Features a mineral glass front optically bonded to a sun-readable hybrid display and a sleek brushed stainless steel bezel, blending seamlessly into both classic and modern marine décors.
• Embedded NMEA 2000 Gateway: Distributes sensor data such as fuel levels, trim settings, and tachometer readings to other marine devices like chartplotters without the need for additional converters.
• Energy Efficient: Powered by a state-of-the-art microprocessor, the VMH-35D operates swiftly while consuming only 170mA, making it much more efficient than comparable TFT screens.
• Waterproof Design: IPX7 rated, ensuring reliable performance even in harsh marine environments.

What's Included

• VMH-35D Gauge
• Mounting Spinlock
• Wire Harness
• Safety Instructions

Note: *Sold individually

Return Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Feature	Details
Box Set	No
Gauge Size	3-3/8" (85mm)
Gauge Type	Multifunction
Series	VMH-35
Voltage - Input Range	12-24V
Dimensions	4"H x 6"W x 6"L
Weight	0.75 lbs
UPC	7640190290466

Additional Resources

Owner's Manual (PDF)
