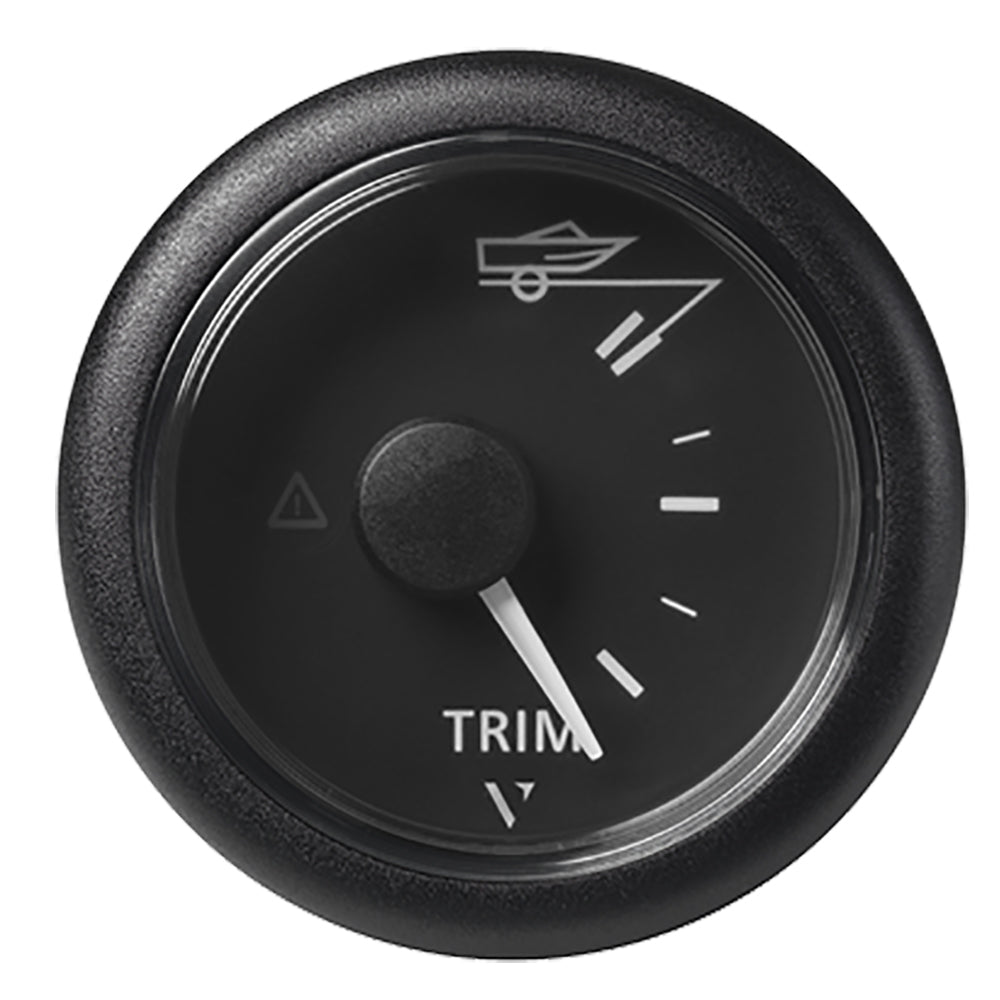

Veratron 52MM (2-1/16") ViewLine Trim Indicator Gauge Up/Down - Black Dial Round Bezel

The Veratron ViewLine 52MM Trim Indicator Gauge is the perfect addition to your boat's instrument panel, offering precise up/down trim monitoring with a sleek black dial and round bezel. Designed for marine environments, this gauge ensures high reliability and readability, making it an essential tool for maintaining optimal engine performance and safety on the water.

Product Features

• High-Quality Construction: The ViewLine series is known for its modular, modern design, allowing for flexible installation and superior manufacturing standards.
• Customizable Display: Available in both black and white dial versions, each gauge is completed with a matching round bezel. An interchangeable bezel option is also available for added versatility.
• Enhanced Visibility: Features anti-fog double lenses and a red LED warning light for maximum readability in all weather conditions.
• Reliable Performance: Operating voltage ranges from 8–32 V with reverse polarity protection to ensure durability and consistent performance.
• Easy Installation: Comes with an 8 pole Tyco/Hirschmann MQS plug and a standard Ω input signal, making installation straightforward.
• Additional Functionality: Optional make-point switch connectivity allows for expanded monitoring capabilities.
• Rugged Protection: Front side protection rating of IP67 safeguards the gauge against dust and water ingress.
• Compact Design: Fits a 52 mm installation diameter with a depth of 50 mm, suitable for most marine dashboards.

What's Included

• Gauge
• Connection Cable
• Bezel
• Rubber Seal
• Spinlock
• Installation Instructions
• Safety Instructions

Note: This product is sold individually.

Return Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Series	ViewLine
Gauge Type	Trim Gauge
Gauge Size	2-1/16"
Box Set	No
Voltage - Input Range	8–32 V
Installation Diameter	52 mm
Installation Depth	50 mm
Box Dimensions	3"H x 3"W x 4"L
Weight	0.35 lbs
UPC	7640178723085

Additional Resources

Owner's Manual (PDF)
