Veratron  |  SKU: LOS-82489  |  Barcode: 7640178723030

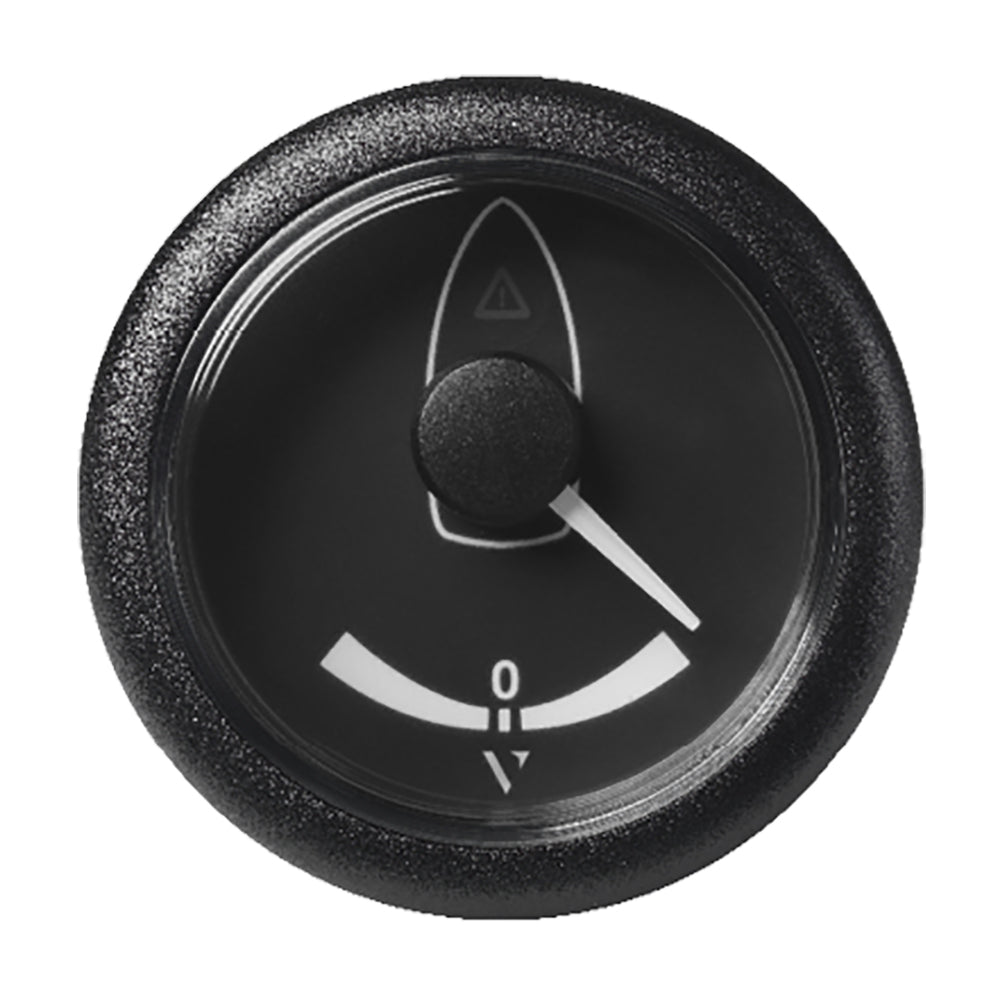

Veratron 52MM (2-1/16") ViewLine Rudder Angle Gauge 40 STB/Port - Black Dial Bezel

$51.84 USD $60.99

Product Description

The ViewLine 52MM Rudder Angle Gauge by Veratron is an essential instrument for precise rudder monitoring, designed specifically for marine and boating applications. With its robust build and sleek black dial, this gauge ensures reliability and readability even in challenging marine environments.

Product Overview

Veratron's ViewLine series offers a modular and modern approach to engine monitoring, providing boaters with a comprehensive set of instruments that prioritize high manufacturing standards and superior performance. The 52MM Rudder Angle Gauge is part of this innovative platform, also compatible with outboard engines, allowing for maximum customization of your boat's cockpit with an excellent price-to-performance ratio.

Key Features

  • Dial & Bezel: Available in black or white dial versions, each gauge comes with a matching round bezel. An interchangeable bezel option is also available to match your boat's aesthetic.
  • Connectivity: Equipped with an 8-pole Tyco/Hirschmann MQS plug for seamless integration with your vessel's systems.
  • Lighting: Features red LED Via Plus and Min Warning Lights to alert you of critical rudder angles.
  • Power Requirements: Operates on a voltage range of 8–32 V, making it versatile for various marine electrical systems.
  • Input Signal: Accepts standard Ω values for straightforward installation and compatibility.
  • Additional Options: Includes an optional make-point switch for enhanced functionality.
  • Protection: Offers reverse polarity protection and a front side protection rating of IP67, ensuring durability against water and harsh conditions.
  • Design: Anti-fog double lens ensures clear visibility, and the gauge has a 52 mm installation diameter with a 50 mm installation depth for easy mounting.

What’s in the Box

  • 52MM Rudder Angle Gauge
  • Connection Cable
  • Black Bezel
  • Rubber Seal
  • Spinlock
  • Installation Instructions
  • Safety Instructions

Note: This product is sold individually. It cannot be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.

Technical Specifications

Series ViewLine
Gauge Type Rudder Angle
Box Set No
Voltage - Input Range (Volts) 12/24 V
Gauge Size 2-1/16"
Box Dimensions 4"H x 6"W x 6"L
Weight 0.4 lbs
UPC 7640178723030

Additional Resources

Download the Owner's Manual (PDF)
