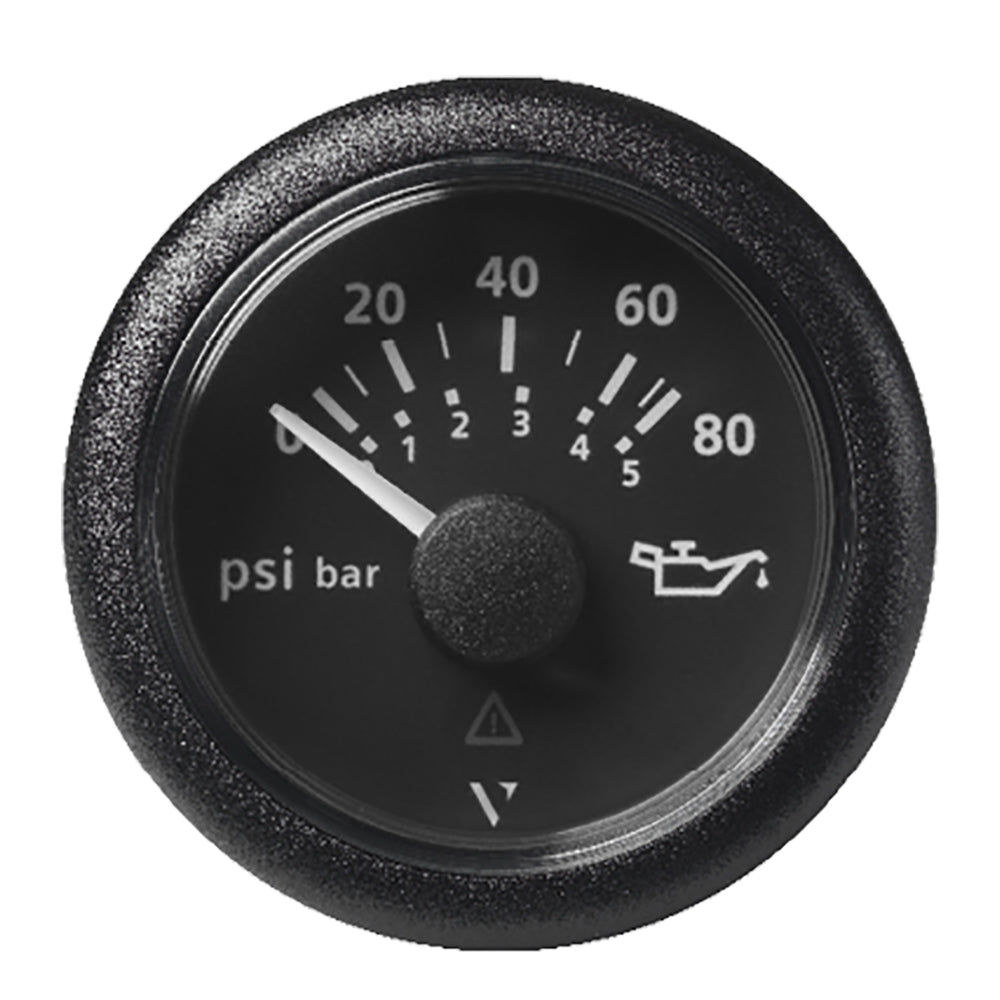

Veratron 52MM (2-1/16") ViewLine Oil Pressure Gauge 80 PSI/5 Bar - Black Dial Round Bezel

The ViewLine 52MM Oil Pressure Gauge is a premium instrument designed specifically for marine and boating applications. With its sleek black dial and round bezel, it not only delivers precise oil pressure readings up to 80 PSI/5 Bar but also enhances the aesthetic of your vessel's cockpit. Engineered for reliability and readability, this gauge is the perfect addition to any outboard engine setup, ensuring you stay informed and in control while navigating the waters.

Key Features

• High-Precision Measurement: Accurately monitors oil pressure up to 80 PSI/5 Bar, ensuring optimal engine performance.
• Durable Construction: Features an anti-fog double lens and front side protection rating of IP67 for reliable operation in harsh marine environments.
• Flexible Installation: Comes with a 52 mm installation diameter and a 50 mm installation depth, making it compatible with a wide range of marine dashboards.
• Customizable Design: Available in black or white dial versions, each complemented by a matching round bezel. An interchangeable bezel option allows for further personalization.
• Enhanced Connectivity: Equipped with an 8-pole Tyco/Hirschmann MQS plug and supports operating voltages from 8–32 V.
• Safety Features: Includes reverse polarity protection and a red LED Via Plus and Min warning light to alert you of any irregularities.
• Easy Integration: Supports standard Ω input signals and offers the option to connect a make-point switch for added functionality.

What’s in the Box

• ViewLine 52MM Oil Pressure Gauge
• Connection Cable
• Matching Round Bezel
• Rubber Seal
• Spinlock Mounting Hardware
• Installation Instructions
• Safety Instructions

Technical Specifications

Voltage - Input Range (Volts)	12/24 V
Series	ViewLine
Gauge Type	Oil Pressure
Gauge Size	2-1/16" (52MM)
Operating Voltage	8–32 V
Input Signal	Standard Ω values
Installation Depth	50 mm
Installation Diameter	52 mm
Front Protection Rating	IP67
Weight	0.4 lbs
UPC	7640178722989
Box Dimensions	4"H x 5"W x 5"L

Installation & Compatibility

The ViewLine 52MM Oil Pressure Gauge is designed for easy installation on a variety of marine dashboards. Its versatile operating voltage range (8–32 V) and standard Ω input signals ensure compatibility with most outboard engines. The optional make-point switch allows for customization based on your specific marine setup, providing you with maximum flexibility and control over your engine monitoring system.

Customer Support & Warranty

Note: This product is sold individually and may not be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly to ensure prompt and effective assistance.

Additional Resources

Owner's Manual (PDF)
