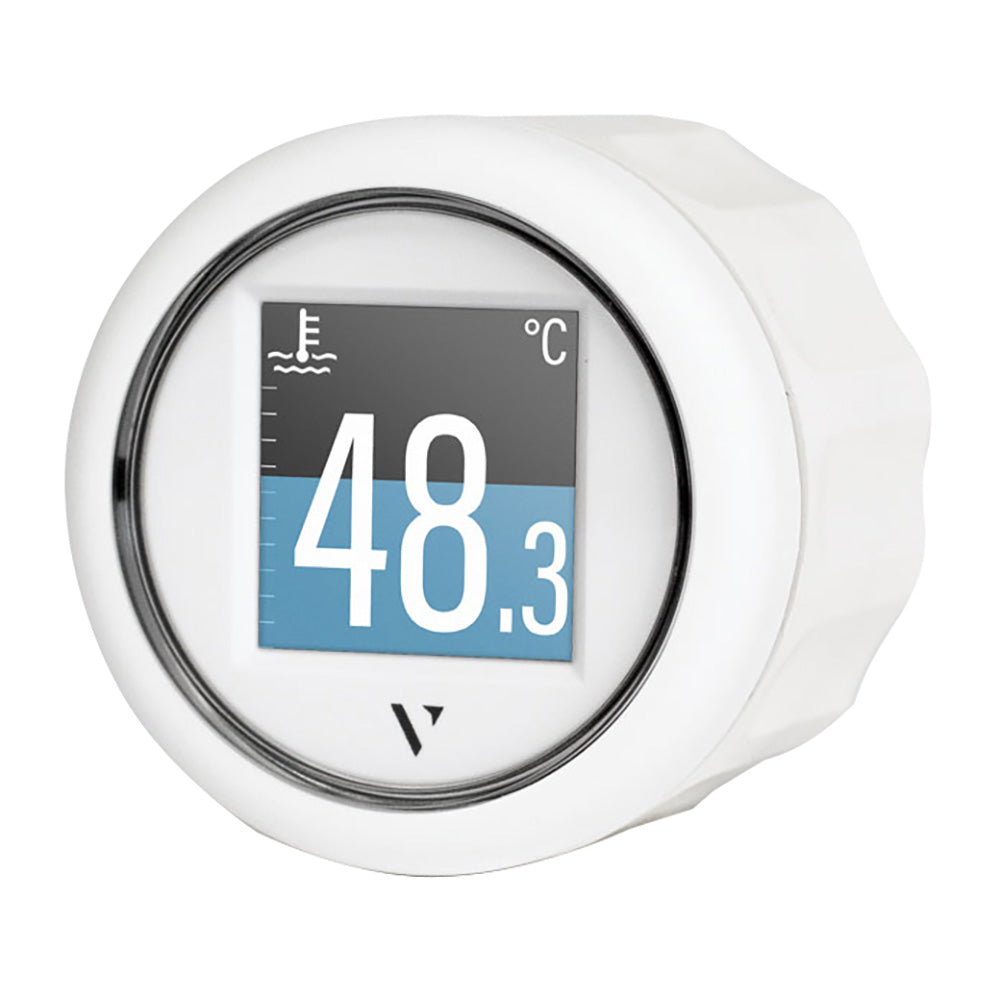

Veratron 52mm (2-1/16") ViewLine Flex Gauge - White

The 52mm (2-1/16") ViewLine Flex Gauge in sleek white seamlessly integrates into your marine dashboard, delivering precise and customizable monitoring of your vessel's vital systems. Designed for boaters who demand clarity and reliability, this multifunction gauge ensures you stay informed with ease, whether you're cruising on calm waters or navigating through challenging conditions.

Advanced Display and Interface

Equipped with a sun-readable 1.44” TFT display, the VL Flex Gauge offers exceptional visibility even in bright daylight. Its compact 52 mm satellite instrument form factor allows easy installation without compromising your dashboard space. The gauge supports both analog and digital inputs, enabling direct readings from engine sensors and expanding connectivity through the CAN interface for comprehensive data monitoring from your vessel's digital network.

Intuitive Design and Customization

The VL Flex Gauge features a user-friendly graphic interface that can be configured in single or dual layouts, presenting your data in a clear and intuitive manner. The vibrant colored bar graphs and integrated alarm displays provide immediate visual cues, helping you quickly assess your boat’s performance and react to any critical changes.

Seamless Configuration with VL Flex App

Setting up your VL Flex Gauge is effortless with the VL Flex Configurator App, available for both Android and iOS devices. This contactless configuration process allows you to tailor your gauge settings with a simple tap. The embedded passive antenna ensures a power-free setup—just launch the app, customize your settings through the intuitive interface, and hold your mobile device near the gauge to transfer the configuration seamlessly.

Note: The VL Flex Configurator App is free to download.

Supported Configurations

Category	Parameters
Performance	Engine Speed, Boat Speed, Speed Over Ground, Boost Pressure
Electrical	Ammeter, Voltmeter, Battery SOC, Battery SOH
Engine	Battery Temperature, Engine Hours, Coolant Temperature, Oil Pressure, Oil Temperature, Gear Oil Pressure, Gear Oil Temperature
Navigation	Rudder Angle, Depth, Trim Position, Speed Over Ground
Fuel & Water	Fuel Level, Fresh Water Level, Waste Water Level
Time	Clock

Key Features

• High-Resolution Display: 1.44” TFT screen ensures clear visibility in all lighting conditions.
• Comprehensive Connectivity: NMEA2000 interface for seamless integration with your vessel’s digital network.
• Integrated Alarms: Built-in warning alarms alert you to critical changes in your vessel’s systems.
• Easy Installation: Standard 52 mm diameter fits effortlessly into your existing marine dashboard setup.

What’s Included

• VL Flex 52 Gauge
• Wire Harness
• Mounting Spinlock for secure installation
• Comprehensive Safety Instructions

Note: This product is sold individually.

Return Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product Specifications

Box Set:	No
Gauge Size:	2-1/16"
Gauge Type:	Multifunction
Series:	ViewLine
Voltage - Input Range (Volts):	12/24v
Box Dimensions:	3"H x 5"W x 5"L
Weight:	0.4 lbs
UPC:	7640190290015

Additional Resources

Owner's Manual (PDF)

Brochure (PDF)
