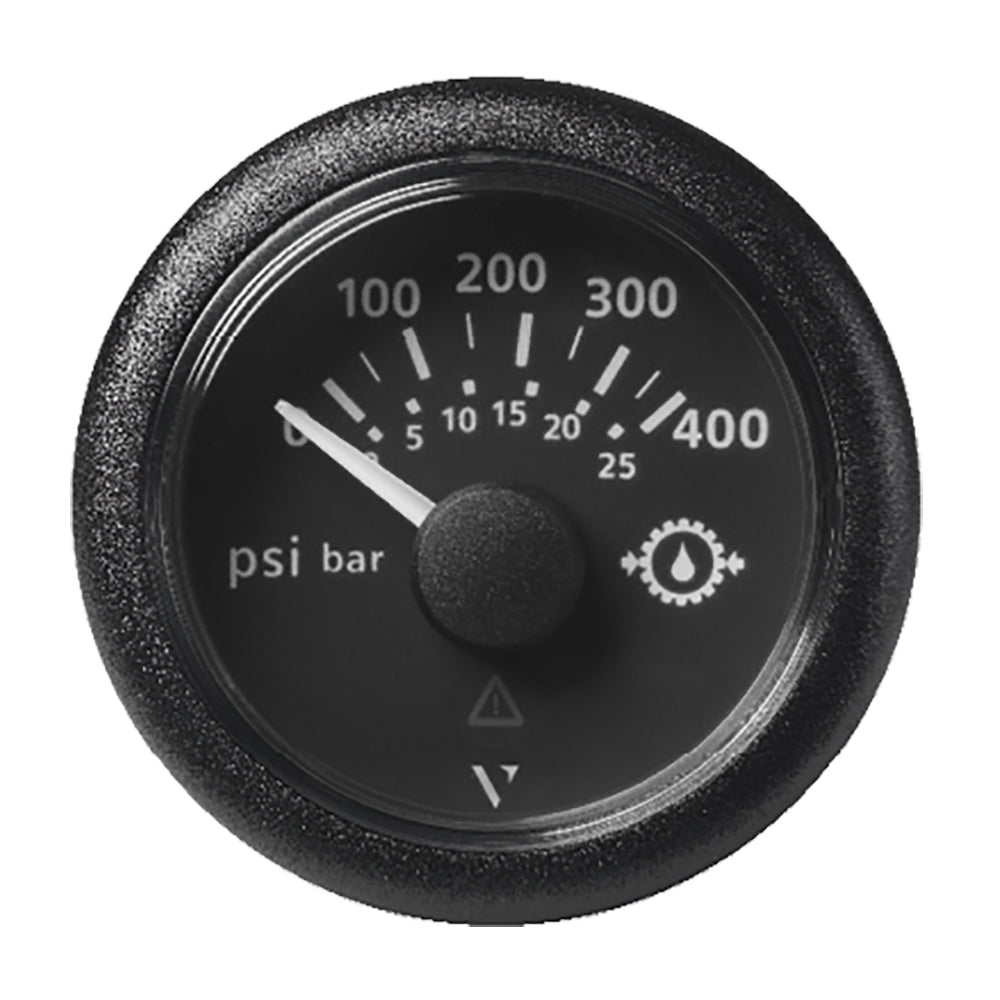

Veratron 2-1/16" (52mm) ViewLine Transmission Oil Pressure 400 PSI/25 Bar - Black Dial Round Bezel

The Veratron ViewLine 2-1/16" (52mm) Oil Pressure Gauge is engineered for precise engine monitoring in marine and boating applications. With its sleek black dial and durable round bezel, this gauge ensures both functionality and aesthetic appeal in your vessel's cockpit.

Key Features

• High Precision: Measures oil pressure up to 400 PSI (25 Bar) with accuracy.
• Durable Construction: Features an anti-fog double lens and front side protection rated IP67 for reliable performance in harsh marine environments.
• Flexible Installation: 52 mm installation diameter and 50 mm installation depth accommodate a variety of setups.
• Customizable Options: Available with black or white dial versions and interchangeable bezel options to match your cockpit design.
• Advanced Connectivity: Equipped with an 8 pole Tyco/Hirschmann MQS plug and supports reverse polarity protection for safe and easy installation.
• Enhanced Visibility: Red LED Via Plus and Min Warning Lights provide clear alerts for critical oil pressure levels.
• Operating Voltage: Compatible with 8–32 V systems, suitable for a wide range of marine engines.
• Input Signal: Compatible with standard Ω values for seamless integration with existing engine monitoring systems.
• Optional Make-Point Switch: Can be connected for additional functionality.

What's Included

• Oil Pressure Gauge
• Connection Cable
• Bezel
• Rubber Seal
• Spinlock
• Installation Instructions
• Safety Instructions

*Sold individually

Specifications

Attribute	Details
Voltage - Input Range	12/24 V
Series	ViewLine
Gauge Type	Oil Pressure
Gauge Size	2-1/16"
Box Set	No
Box Dimensions	4"H x 5"W x 5"L
Weight	0.35 lbs
UPC	7640178723016

Additional Resources

Owner's Manual (PDF)
