Veratron 0-5 Volt LinkUp Converter

The 0-5 Volt LinkUp Converter is your ultimate solution for streamlined power delivery and sensor integration on your vessel. Designed specifically for marine applications, this converter simplifies installation, reduces wiring complexity, and ensures reliable performance in demanding marine environments.

Product Overview

The LinkUp gateway modules effortlessly replace traditional wiring systems, providing power to both LinkUp devices and sensors directly from the NMEA 2000 backbone. This ensures full compliance with NMEA 2000 certification while enhancing the efficiency of your boat’s electrical system.

Installation is a breeze thanks to the passive wireless receiver, allowing configuration via the LinkUp Configurator app available on Android and iOS devices. Easily set sensor parameters such as type, instance, and warning thresholds on your smartphone, then simply tap your device against the LinkUp unit for instant data synchronization.

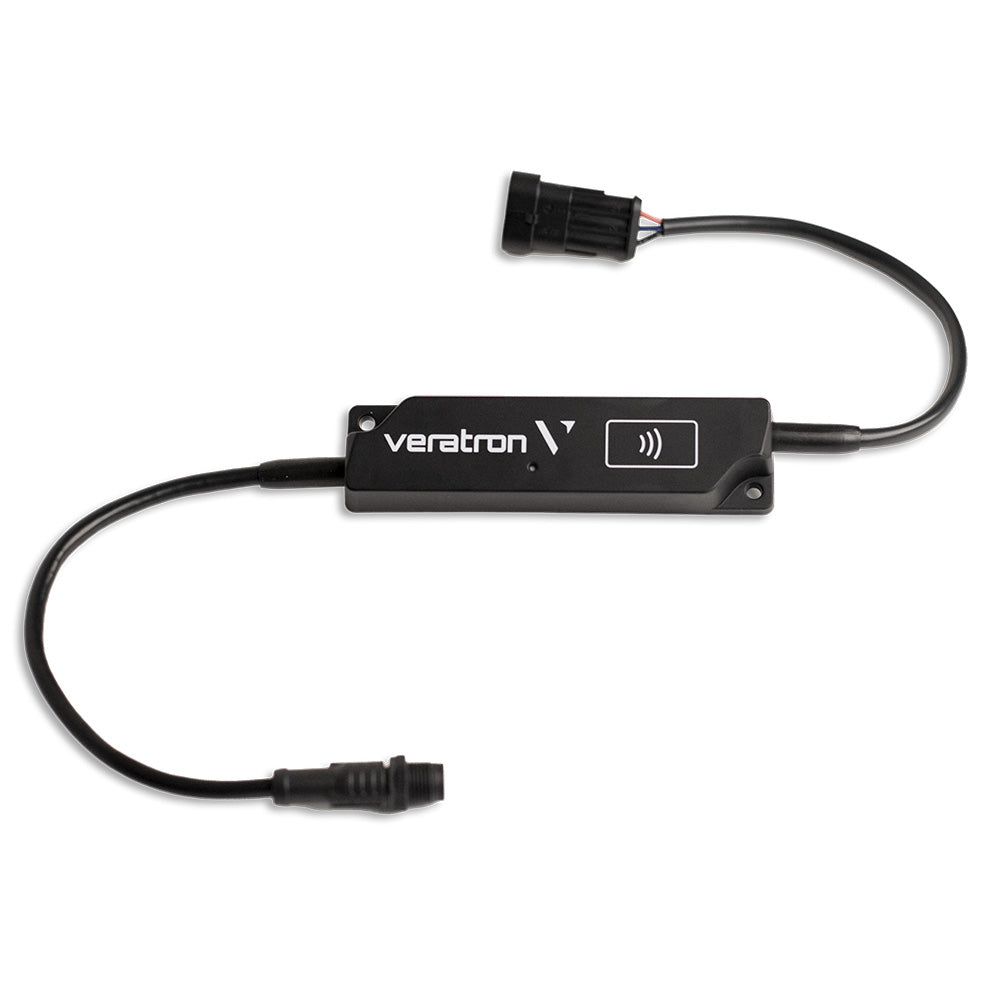

Unlike bulky NMEA 2000 converters, the LinkUp Converter is a cost-effective alternative that minimizes wiring. The complete setup includes:

• A 30 cm wire pigtail with a standard M12 5-pin connector
• The LinkUp device featuring device electronics, a notification LED, wireless programming interface, and NMEA 2000 side wiring
• A sensor-side cable approximately 50 cm long when unrolled

Additional benefits include contactless smartphone configuration, elimination of expensive hardware, and power sourced directly from the NMEA backbone. The robust, air-sealed housing meets ISO 8846:1990 standards, ensuring safe installation in engine compartments by protecting against ignition of surrounding flammable gases. All LinkUp products are CE, Reach, and RoHS compliant, offering a reliable and safe solution for your marine needs.

Features

• Wireless configuration via smartphone app
• Customizable sensor curves for precise monitoring
• Engine compartment approved according to ISO 8846:1990
• Provides a 5V power source for passive sensors
• Alarm setup and transmission over NMEA 2000®
• Plug-and-play installation for hassle-free setup
• NMEA 2000® certified for seamless integration

Technical Specifications

Specification	Details
Operating Voltage	12V (from NMEA 2000®)
Input Signal Range	0-5V
Protection Class	IP X9/K
Power Consumption	≤ 100mA
Output Current on 5V Source	15mA
Output Signal	NMEA 2000®
Dimensions	125 mm x 32 mm (+cables)
Operating Temperature	-30°C to +80°C
Flammability	UL94
Housing Material	PC-FR
Compliance	CE, UKCA, Reach, RoHS, ISO8846:1990

What’s in the Box

• LinkUp Gateway – 0-5V
• Veratron Card
• Safety Manual

Important: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Owner's Manual (PDF)
Brochure (PDF)
