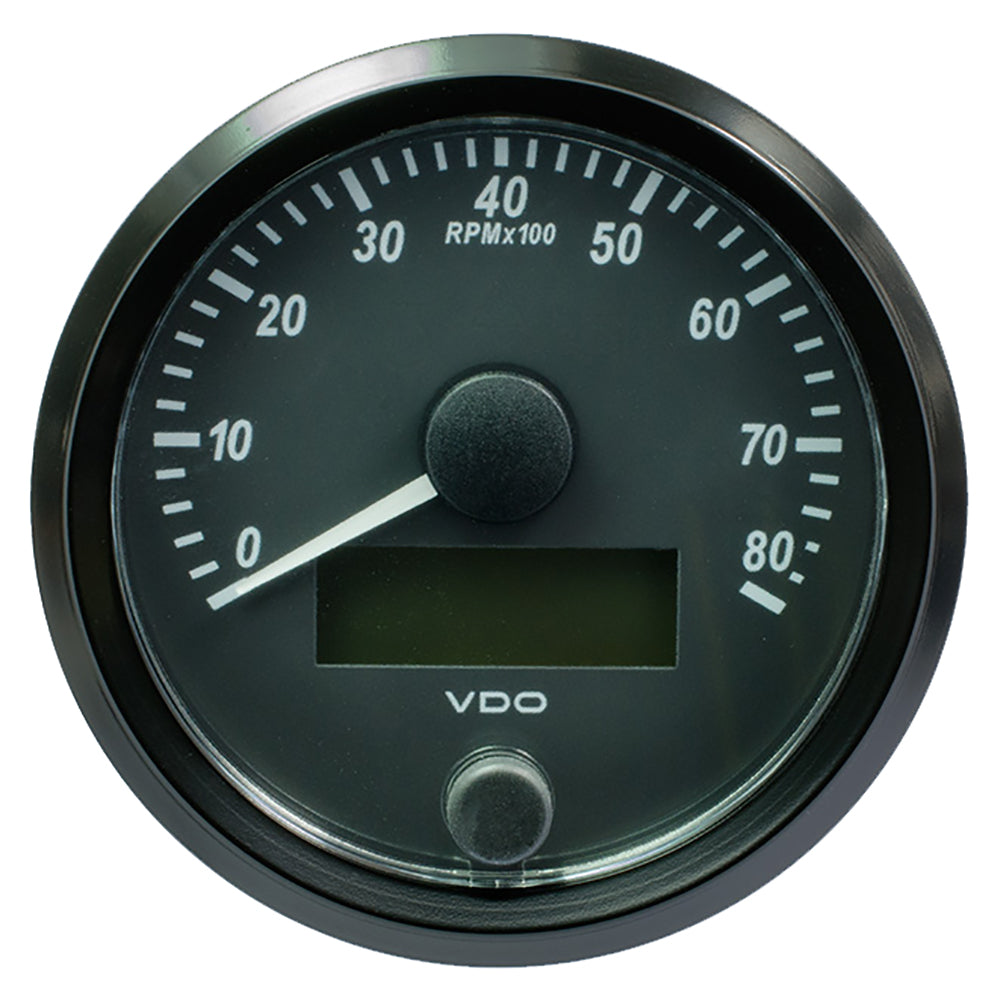

VDO SingleViu 80mm (3-1/8") Tachometer - 8000 RPM

The SingleViu 80mm (3-1/8") Tachometer is a premium-grade gauge engineered for marine and boating applications. Capable of measuring up to 8000 RPM, this tachometer offers seamless integration with both traditional analog senders and modern J1939 CAN networks, providing precise engine monitoring essential for safe and efficient vessel operation.

Advanced Technology for Marine Performance

SingleViu instruments utilize state-of-the-art technology to deliver reliable performance in the demanding marine environment. Each gauge features its own microprocessor, enabling dual-input capabilities that allow easy switching between analog signals and J1939 CAN connections via the SingleViu Configuration software. Additionally, the tachometer can display J1939 system fault codes, offering comprehensive diagnostics to ensure your boat's engine operates smoothly and efficiently.

Key Features

• Dual-Input Capability: Effortlessly switch between analog input and J1939 CAN network to suit your vessel's instrumentation setup.
• High Frequency Input: Supports 0-400kHz default input for precise and responsive RPM measurements.
• Customizable RGB LED Illumination: Enhance visibility with RGB LEDs, defaulting to white, to suit various lighting conditions on your boat.
• Marine-Grade Durability: Waterproof and fog-proof front and rear ensure reliable operation in harsh maritime environments.
• Advanced Stepper Motors: Provide smooth and accurate needle movement for real-time engine monitoring.
• Complete Installation Kit: Includes a wire harness for straightforward installation, reducing setup time.
• Wide Voltage Compatibility: Operates efficiently on 12-24V systems, accommodating a range of marine electrical setups.
• Molex MX 150 Connectors: Equipped with 8 and 12-pin connectors for secure and reliable electrical connections.
• Spin-Lok™ Mounting Hardware: Ensures stable and secure installation on your vessel's dashboard or control panel.

Technical Specifications

Series	SingleViu
Gauge Type	Tachometer
Gauge Size	80mm (3-1/8")
Operating Voltage	12-24V
Input Range	0-400kHz
Dimensions	5" H x 7" W x 8" L
Weight	0.95 lbs
UPC	4103590683472
Box Set	No

∗Sold individually

Resources

Download the Brochure (PDF)
