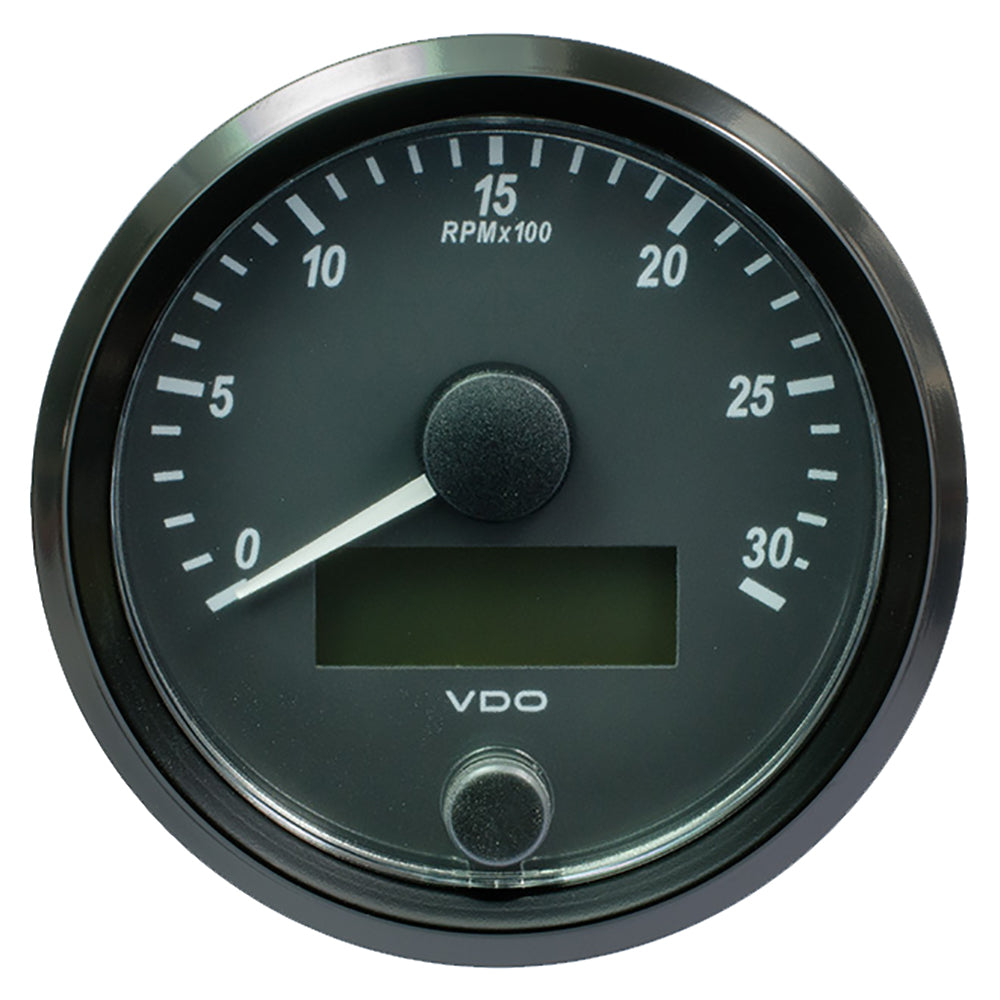

VDO SingleViu 80mm (3-1/8") Tachometer - 3000 RPM

The SingleViu 180mm (3-1/8") Tachometer is a high-performance instrument designed specifically for marine and boating applications, offering precise RPM monitoring up to 3000 RPM.

Advanced Technology for Reliable Performance

SingleViu instruments incorporate the latest technology, providing seamless integration with both traditional analog senders and modern J1939 CAN networks. Each gauge is equipped with its own microprocessor, enabling dual-input capability that can be easily switched from analog to J1939 CAN using the SingleViu Configuration software. In addition to displaying real-time RPM data, the tachometer can also show J1939 system fault codes, ensuring that you’re always informed about your vessel's performance and potential issues.

Key Features

• 0-400kHz Default Input
• RGB LED Illumination with customizable colors (default set to White)
• Waterproof and fog-proof construction for marine environments
• Includes wire harness for easy installation
• Operating Voltage: 12-24V
• Molex MX 150 8 and 12 Pin Connector for versatile connectivity
• Spin-Lok™ Mounting Hardware for secure and stable installation
• Compatible with analog input systems

Technical Specifications

Box Set	No
Voltage - Input Range (Volts)	12-24V
Series	SingleViu
Gauge Type	Tachometer
Gauge Size	80mm
Box Dimensions	5"H x 8"W x 8"L WT: 0.95 lbs
UPC	4103590683434

Note: This tachometer is sold individually.
