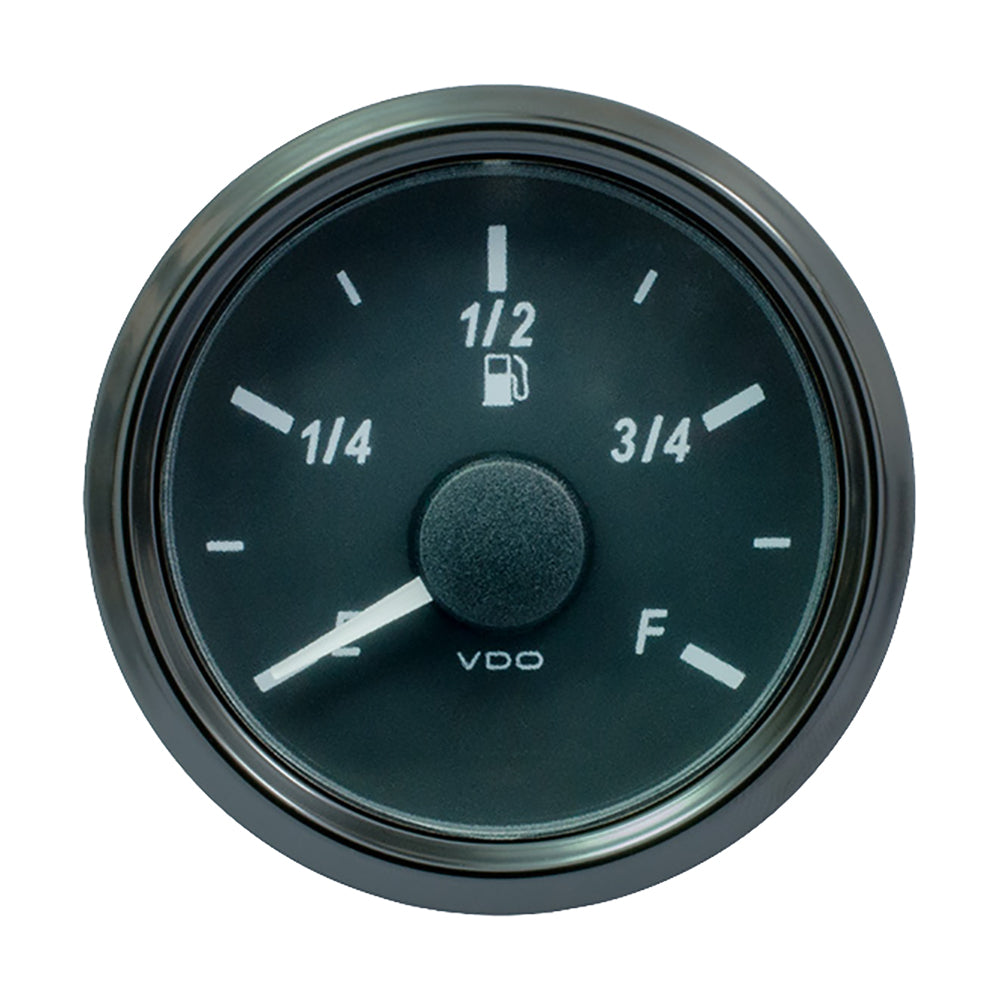

VDO SingleViu 52mm (2-1/16") Fuel Level Gauge - E/F Scale 240-33 Ohm

The SingleViu 52mm Fuel Level Gauge is engineered to deliver precise and dependable fuel level monitoring for your marine vessel. Combining cutting-edge technology with robust construction, this gauge seamlessly integrates with both traditional analog senders and modern J1939 CAN networks, ensuring optimal performance in demanding marine environments.

Advanced Dual-Input Capability

Equipped with its own microprocessor, each SingleViu gauge offers dual-input functionality. Easily switch between the default 240-33 Ohm analog input and the J1939 CAN interface using the intuitive SingleViu Configuration software. This flexibility allows for seamless integration into a variety of marine systems, accommodating both legacy and contemporary setups.

Intelligent Diagnostics

Enhance your vessel's reliability with comprehensive system diagnostics. The SingleViu gauge can display J1939 system fault codes, enabling quick identification and troubleshooting of issues. This feature ensures that you maintain optimal fuel monitoring and can address potential problems before they escalate.

Durable Marine Construction

Designed specifically for the harsh conditions of marine environments, the SingleViu gauge boasts waterproof and fog-proof construction. This durability ensures consistent performance and longevity, even in the most challenging weather conditions and saline atmospheres.

Customizable RGB LED Illumination

Improve visibility and aesthetics with RGB LED illumination, defaulting to white. The customizable lighting not only enhances readability in low-light conditions but also allows you to match the gauge's appearance to your vessel's interior design, providing both functionality and style.

Precision Stepper Motors

The SingleViu gauge features advanced stepper motors that deliver smooth and accurate needle movements. This precision ensures that fuel level readings are reliable and easy to interpret, allowing for accurate monitoring of your vessel's fuel status.

Included Components

• 240-33Ω Default Input
• RGB LED Illumination (default set to White)
• Water Resistant Front & Rear
• Includes Wire Harness
• Molex MX 150 8 Pin Connector
• Operating Voltage: 12-24V
• Spin-Lok™ Mounting Hardware
• Analog Input Compatibility

Note: Sold individually.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Technical Specifications

Gauge Type	Fuel Level
Gauge Size	52mm (2-1/16")
Input Range (Ohms)	240-33 Ohm
Voltage	12-24V
Series	SingleViu
Box Dimensions	4"H x 4"W x 6"L
Weight	0.45 lbs
UPC	4103590682994
Box Set	No

Easy Installation and Configuration

Installing the SingleViu Fuel Level Gauge is straightforward with the included wire harness and Spin-Lok™ mounting hardware. Utilize the Molex MX 150 8 Pin Connector for secure and reliable connections. Once installed, use the SingleViu Configuration software to switch inputs between analog and J1939 CAN as needed, ensuring a seamless setup tailored to your marine system.

Watch the SingleViu Fuel Level Gauge in Action
