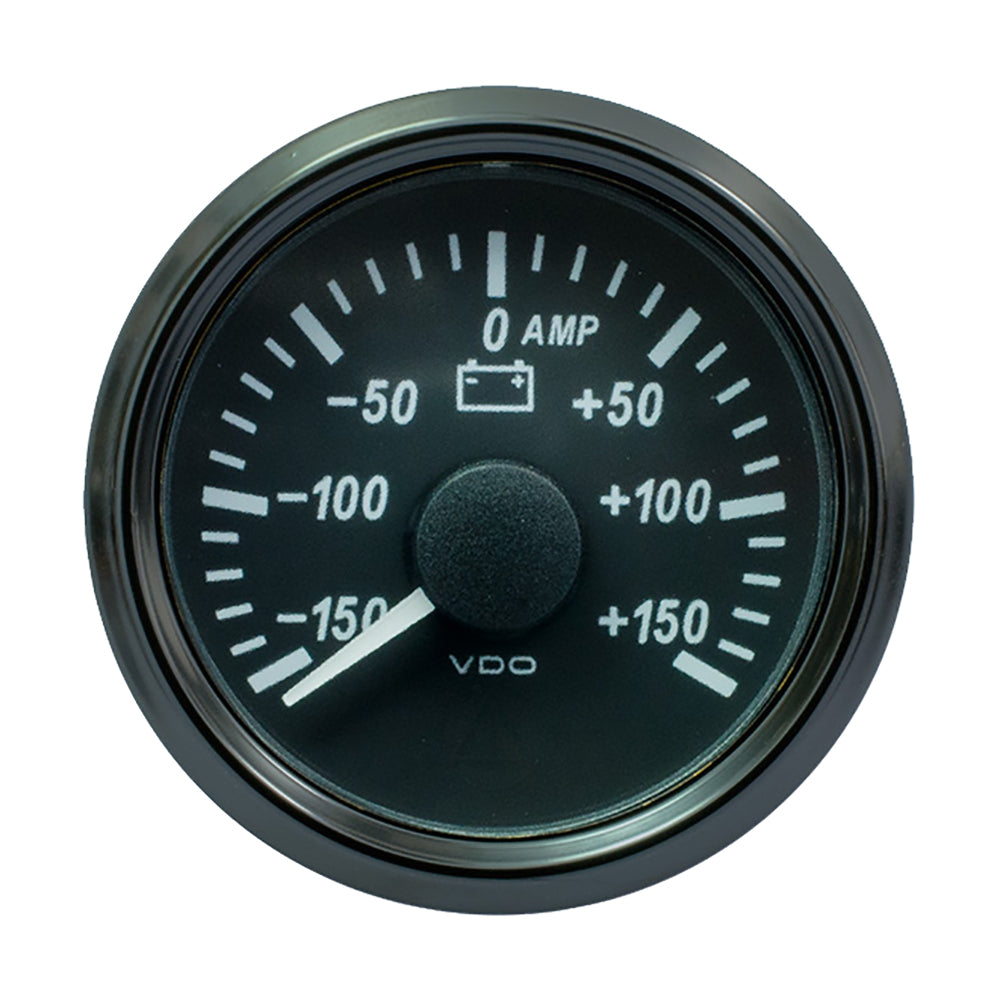

VDO SingleViu 52mm (2-1/16") Ammeter - 150 AMP

The VDO SingleViu 52mm (2-1/16") Ammeter is a cutting-edge solution designed specifically for marine and boating applications. Engineered to deliver precise current monitoring, this ammeter seamlessly integrates with both traditional analog systems and modern J1939 CAN networks, ensuring reliable performance on the water.

Product Overview

The SingleViu series by VDO represents the latest advancement in marine instrumentation. Each SingleViu ammeter is equipped with its own microprocessor, enabling dual-input functionality that allows users to switch effortlessly between analog input and J1939 CAN connectivity using the SingleViu Configuration software. This versatility ensures that whether you’re using legacy systems or modern networks, the SingleViu ammeter delivers accurate and reliable data.

Key Features

• 60mV Default Input: Ensures compatibility with standard marine electrical systems.
• RGB LED Illumination: Default set to white, providing clear visibility in all lighting conditions.
• Water Resistant Construction: Both front and rear panels are designed to withstand harsh marine environments.
• Included Wire Harness: Simplifies installation with all necessary wiring included.
• Voltage Compatibility: Operates efficiently on 12-24V systems, suitable for a wide range of marine vessels.
• Molex MX 150 8 Pin Connector: Ensures secure and reliable electrical connections.
• Spin-Lok™ Mounting Hardware: Provides easy and secure installation on your dashboard or control panel.
• Dual Input Capability: Switch between analog and J1939 CAN inputs seamlessly.
• Fault Code Display: Identifies and displays system fault codes for easy troubleshooting.

Specifications

Attribute	Details
Voltage - Input Range	12-24V
Series	SingleViu
Gauge Type	Voltmeter/Ammeter
Gauge Size	52mm (2-1/16")
Box Set	No
Box Dimensions	4"H x 4"W x 6"L
Weight	0.45 lbs
UPC	4103590682918

Installation

Installing the VDO SingleViu Ammeter is straightforward with the included Spin-Lok™ mounting hardware and wire harness. Whether you’re retrofitting an older vessel or integrating into a new build, the dual-input capability allows for flexible installation options. Refer to the Owner's Manual (PDF) for detailed installation instructions.

Durability and Performance

Designed for the demanding marine environment, the SingleViu ammeter features waterproof and fog proof construction to ensure longevity and consistent performance. The advanced stepper motors provide smooth and accurate readings, while the RGB LED illumination enhances visibility, making it easy to monitor your vessel’s electrical status day or night.

Safety Information

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Watch our detailed installation and overview video below to get the most out of your VDO SingleViu 52mm Ammeter:

Note: This ammeter is sold individually. Ensure you have a 60mV shunt installed to achieve accurate current readings.
