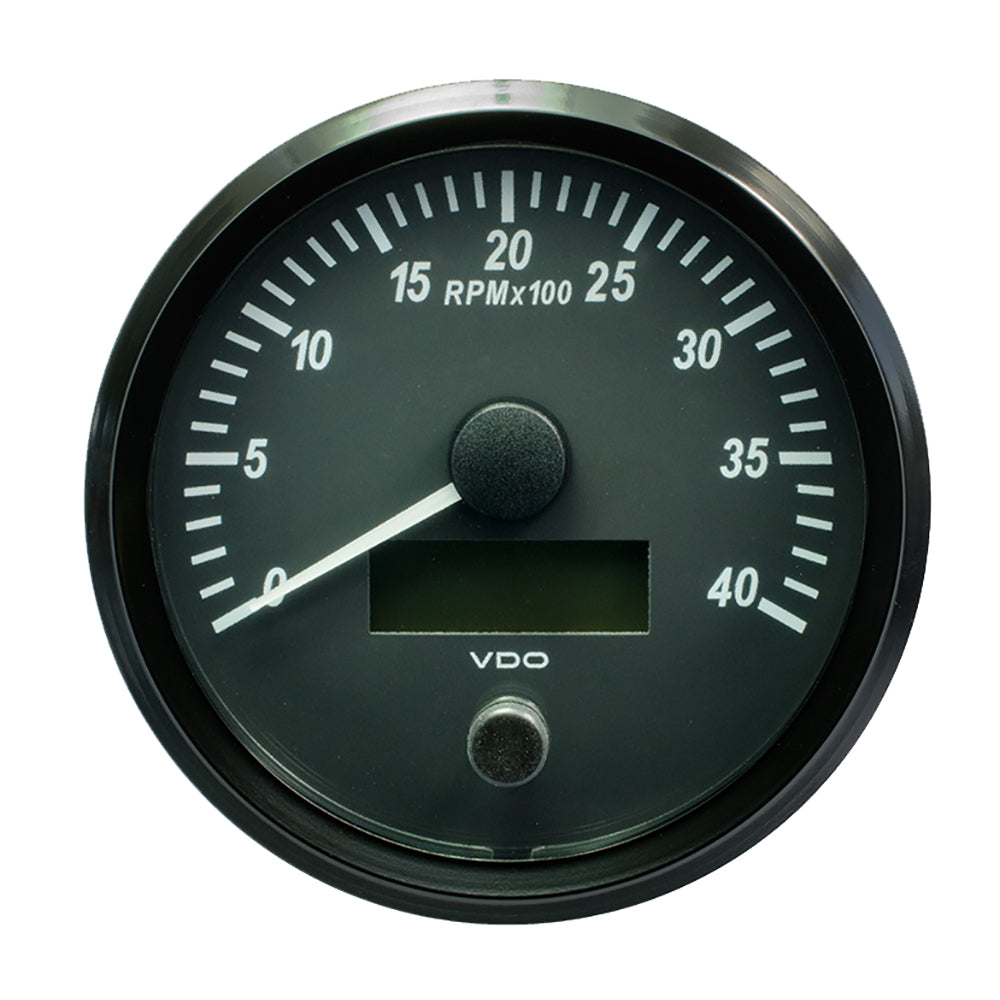

VDO SingleViu 100mm (4") Tachometer - 4000 RPM

Enhance your boat’s instrumentation with the SingleViu 100mm (4") Tachometer, tailored for marine environments. This high-precision gauge offers versatile connectivity options, allowing seamless integration with traditional analog senders or modern J1939 CAN networks, ensuring accurate RPM monitoring for your vessel’s engine.

Advanced Features for Optimal Performance

SingleViu tachometers are equipped with cutting-edge technology to deliver reliable and customizable performance on the water. Key features include:

• Dual-Input Capability: Switch effortlessly between analog inputs and J1939 CAN networks using the SingleViu Configuration software.
• Individual Microprocessors: Each gauge operates independently, allowing for precise monitoring and fault code display from the J1939 system.
• Waterproof and Fog Proof Construction: Built to withstand harsh marine environments, ensuring longevity and durability.
• RGB LED Illumination: Customize your gauge’s lighting with RGB LEDs, defaulting to white for clear visibility during night operations.
• Advanced Stepper Motors: Ensure smooth and accurate needle movements for reliable readings.
• Spin-Lok™ Mounting Hardware: Provides a secure and easy installation process on your boat’s dashboard.

Technical Specifications

Specification	Details
Gauge Type	Tachometer
Gauge Size	100mm (4")
Input Range	0-400kHz
Voltage	12-24V
Connector	Molex MX 150 8 and 12 Pin
Dimensions	5"H x 8"W x 8"L
Weight	0.95 lbs
UPC	4103590683397
Series	SingleViu

Included Components

• SingleViu 100mm Tachometer
• Wire Harness
• Spin-Lok™ Mounting Hardware

Note: Sold as an individual unit.

Installation and Setup

The SingleViu tachometer is designed for easy installation on marine dashboards. Utilize the Spin-Lok™ mounting hardware for a secure fit. Connect the tachometer to your engine's analog senders or J1939 CAN network using the included Molex MX 150 connectors. For detailed setup instructions, refer to the Owner's Manual (PDF).

Safety Information

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
