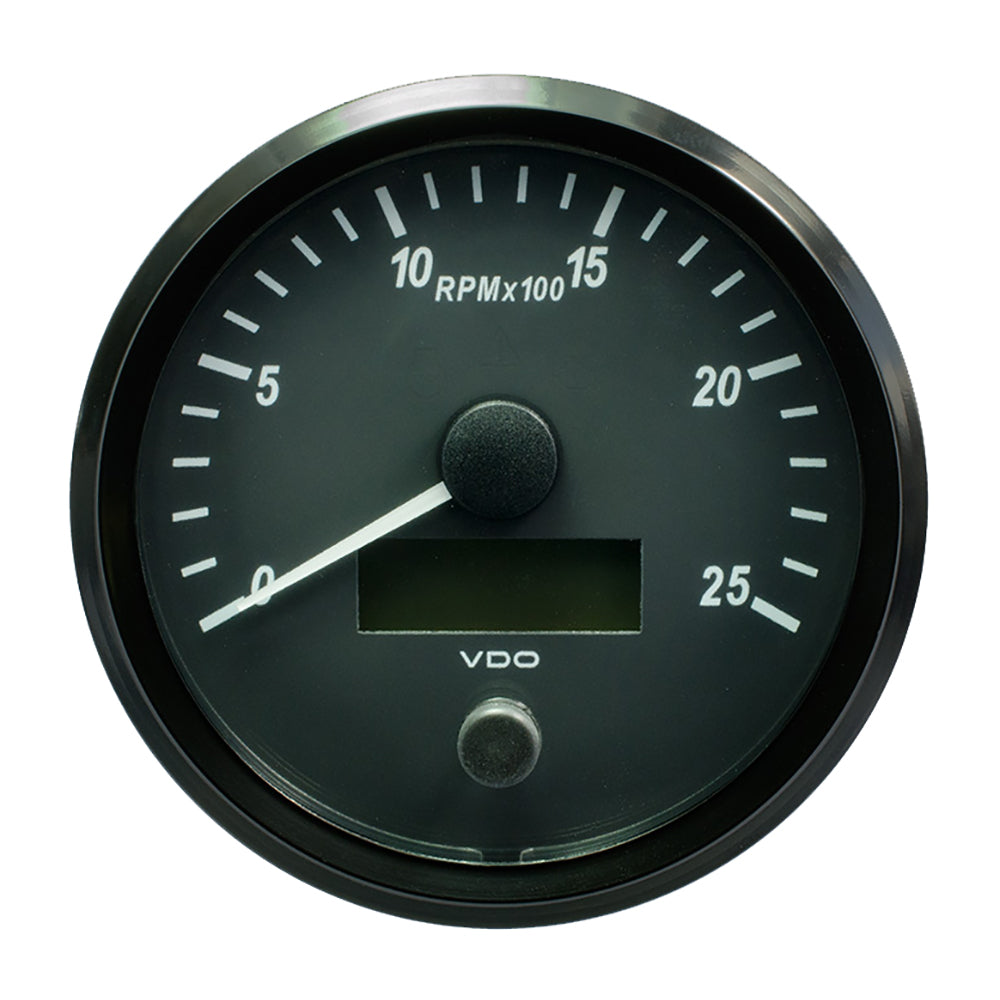

VDO SingleViu 100mm (4") Tachometer - 2500 RPM

The SingleViu 100mm (4") Tachometer is the ultimate solution for marine enthusiasts seeking precision and reliability in their boat's instrumentation. Engineered to seamlessly integrate with both traditional analog senders and modern J1939 CAN networks, this tachometer ensures accurate engine performance monitoring under all conditions.

Advanced Dual-Input Technology

Equipped with its own microprocessor, each SingleViu tachometer offers dual-input capabilities. Easily switch between the default analog input and the J1939 CAN network using the intuitive SingleViu Configuration software. This flexibility allows for seamless integration with various marine systems, providing versatility and enhanced functionality.

Display and Diagnostics

Monitor your engine's RPM with precision up to 2500 RPM. Additionally, the tachometer can display J1939 system fault codes, enabling quick diagnostics and troubleshooting directly from your dashboard. Stay informed about your engine's health with ease.

Durable and Weather-Resistant Construction

Designed for the harsh marine environment, the SingleViu tachometer features waterproof and fog-proof construction. Whether you're navigating through misty conditions or exposed to splashes, this gauge maintains its functionality and clarity.

Stylish and Functional Lighting

Enhance the aesthetics of your boat's dashboard with RGB LED illumination. The default white lighting provides clear visibility, while customizable options allow you to match your vessel's interior lighting scheme.

Precision Engineering

Powered by advanced stepper motors, the SingleViu tachometer delivers smooth and accurate needle movements. Experience reliable performance and consistent readings, essential for optimal engine management.

Included Components

• Wire Harness Included
• Molex MX 150 8 and 12 Pin Connectors
• Spin-Lok™ Mounting Hardware for secure installation

Technical Specifications

Feature	Details
Voltage - Input Range	12-24V
Series	SingleViu
Gauge Type	Tachometer
Gauge Size	100mm (4")
Box Set	No
Box Dimensions	4"H x 8"W x 8"L
Weight	1.1 lbs
UPC	4103590683373

Features:

• 0-400kHz Default Input
• RGB LED Illumination (default set to White)
• Water Resistant Front & Rear
• Includes Wire Harness
• Voltage: 12-24V
• Molex MX 150 8 and 12 Pin Connector
• Spin-Lok™ Mounting Hardware
• Analog Input Capability

Sold as an individual unit.

Installation and Setup

Mounting the SingleViu tachometer is straightforward with the included Spin-Lok™ hardware. Connect the tachometer using the provided Molex MX 150 connectors, and utilize the SingleViu Configuration software to switch between analog and J1939 CAN inputs as needed. Comprehensive installation guidelines are available in the owner’s manual.

Additional Resources

Download the Owner's Manual (PDF)

Safety Information

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
