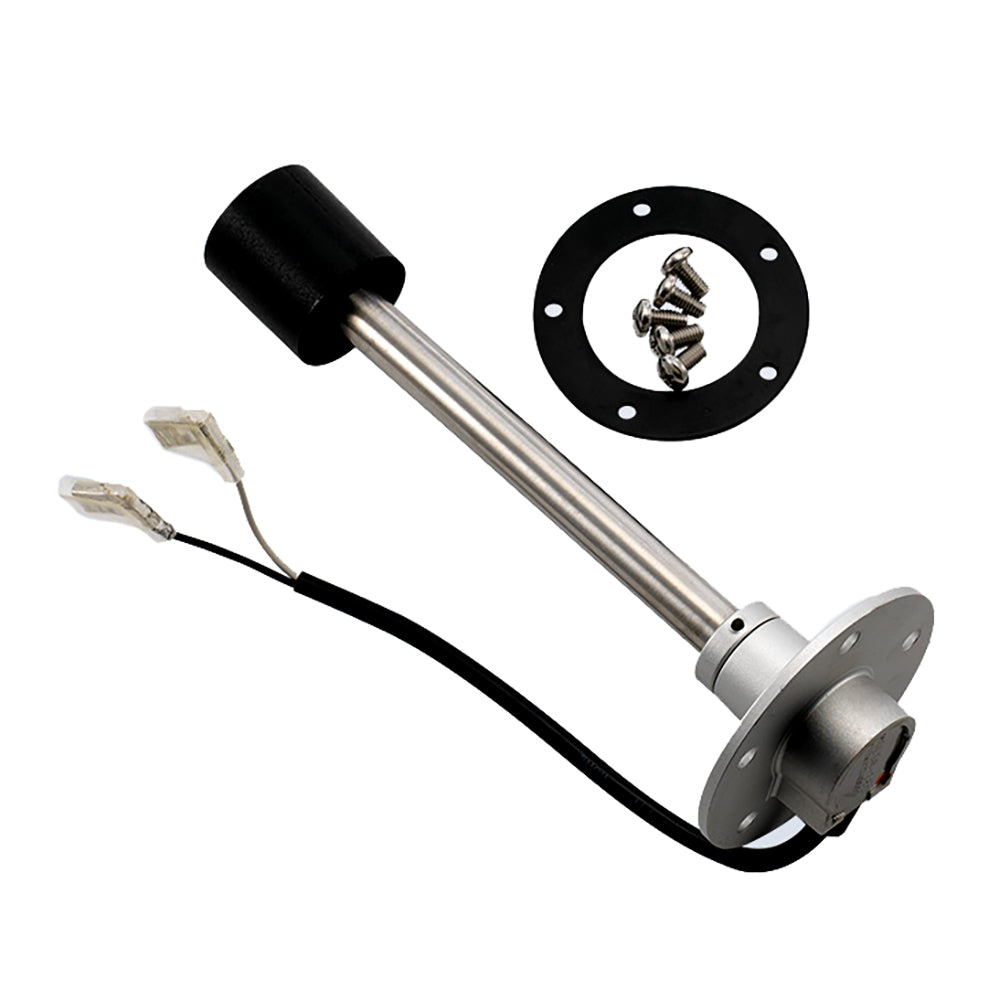

VDO Reed Switch Fuel Sender - 600 MM

The Reed Switch Fuel Sender - 600 MM is a state-of-the-art solution for marine fuel management, delivering precise fuel level readings without the inconsistencies associated with traditional float arm systems. Its innovative tubular design ensures smooth gauge operation, even in challenging marine environments where space is limited.

Why Choose the Reed Switch Fuel Sender - 600 MM?

Traditional fuel senders often experience erratic gauge movements due to rotating float arms and resistance cards. Our Reed Switch Fuel Sender revolutionizes fuel measurement with a floatless design, offering enhanced reliability and durability for your marine vessel.

Key Benefits

• Enhanced Accuracy: The tubular design acts as a dampener, minimizing gauge pointer fluctuations caused by fuel movement.
• Durable Construction: Crafted from high-quality stainless steel, ensuring resistance to corrosion in marine environments.
• Low Maintenance: With no moving parts, this fuel sender eliminates wear and tear, providing a longer operational lifespan.
• Easy Installation: Top-mounted with an aftermarket standard SAE 5-hole mounting flange, complete with neoprene gasket and mounting hardware.
• Wide Compatibility: Compatible with most standard marine fuel gauges, ensuring seamless integration with your existing setup.

Features

Feature	Description
Material	Stainless steel construction
Gasket	Ethanol-resistant Viton gasket
Resistance Range	240-33 Ohm
Tank Depth Compatibility	Fits tanks with a depth of 23.6" (600mm)
Connectors	Insulated 1/4" spade connectors
Mounting	Standard 5-hole mounting flange
Grounding	Ground - Floating
Connection	Insulated .25" Spade

Specifications

• Color: Silver
• Box Dimensions: 3"H x 3"W x 27"L
• Weight: 1 lbs
• UPC: 754059064468

Note: *Sold as an individual unit.

Safety Information

WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
