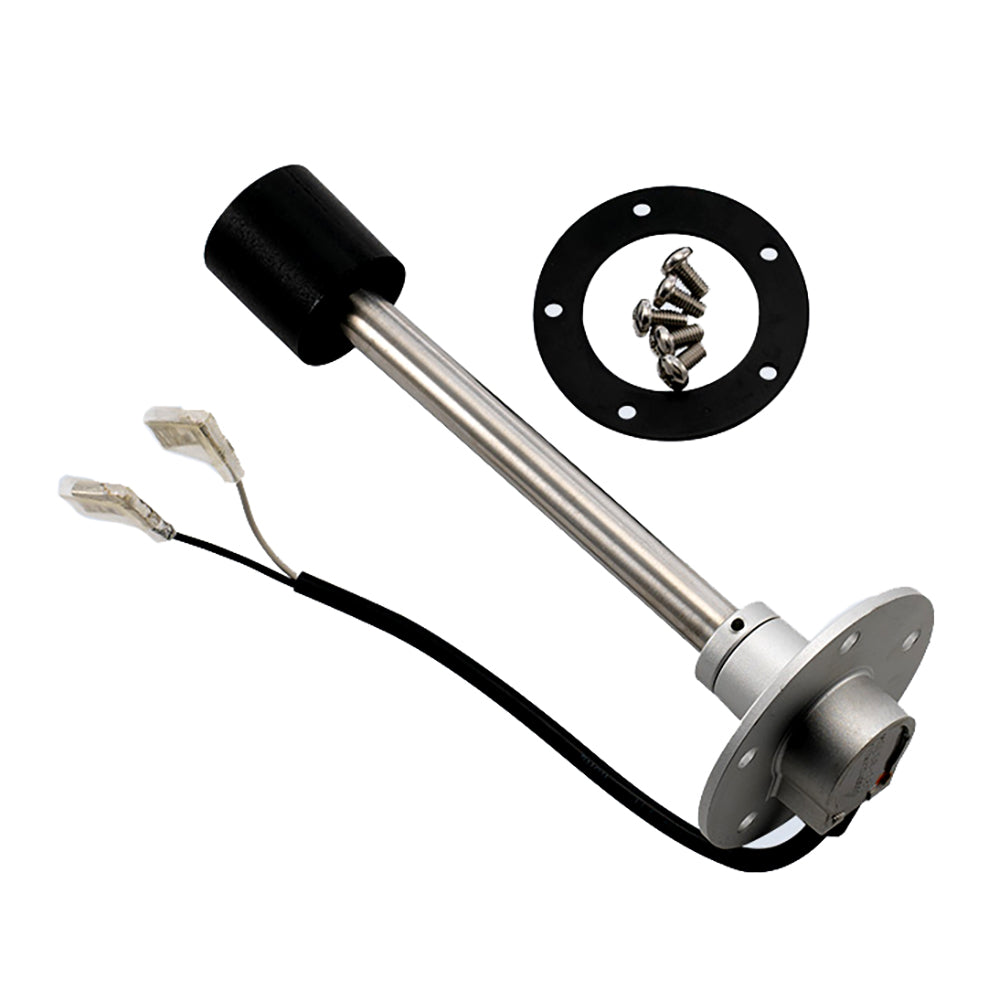

VDO Reed Switch Fuel Sender - 450 MM

Upgrade your marine vessel's fuel monitoring system with our Reed Switch Fuel Sender - 450 MM, specifically engineered for reliable and accurate fuel level measurement. Designed to eliminate the common issues associated with traditional fuel senders, this advanced sender ensures smooth and consistent gauge readings, even in rough sea conditions.

Why Choose the Reed Switch Fuel Sender?

Traditional aftermarket fuel senders often rely on rotating float arms and resistance cards, which can cause erratic gauge pointer movements due to fuel slosh and mechanical wear. Our Reed Switch Fuel Sender offers a superior solution with its innovative floatless design, providing enhanced stability and longevity.

Benefits of the Reed Switch Design

• Stable Readings: The tubular design acts as a dampener, minimizing gauge pointer fluctuations caused by fuel movement.
• Durable Construction: Made from stainless steel, the sender resists corrosion and wear, ensuring long-term performance.
• Low Maintenance: With no moving parts that experience side-to-side motion, the sender reduces the risk of mechanical failure.
• Easy Installation: Top-mounted design fits seamlessly with the standard SAE 5-hole mounting flange, simplifying the installation process.

Key Features

Feature	Description
Construction	Stainless steel for enhanced durability and corrosion resistance.
Gasket	Ethanol-resistant Viton gasket ensures a secure and leak-proof seal.
Resistance Range	240-33 Ohm range compatible with most marine fuel gauges.
Tank Compatibility	Fits fuel tanks with a depth of up to 17.7" (450mm).
Connectors	Insulated 1/4" spade connectors for reliable electrical connections.
Mounting	Standard 5-hole SAE mounting flange for easy installation.
Grounding	Ground - Floating configuration ensures stable signal transmission.

Technical Specifications

• Color: Silver
• Box Dimensions: 3" H x 3" W x 19" L
• Weight: 0.8 lbs
• UPC: 754059064451

Easy Installation and Compatibility

The Reed Switch Fuel Sender is designed for hassle-free installation on most marine vessels. It utilizes the standard SAE 5-hole mounting flange, making it compatible with a wide range of fuel tanks and gauges commonly used in the marine industry. The insulated spade connectors ensure a secure and efficient electrical connection, while the top-mounted design provides optimal placement without clearance issues.

Safety Information

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Sold As

Sold as an Individual
