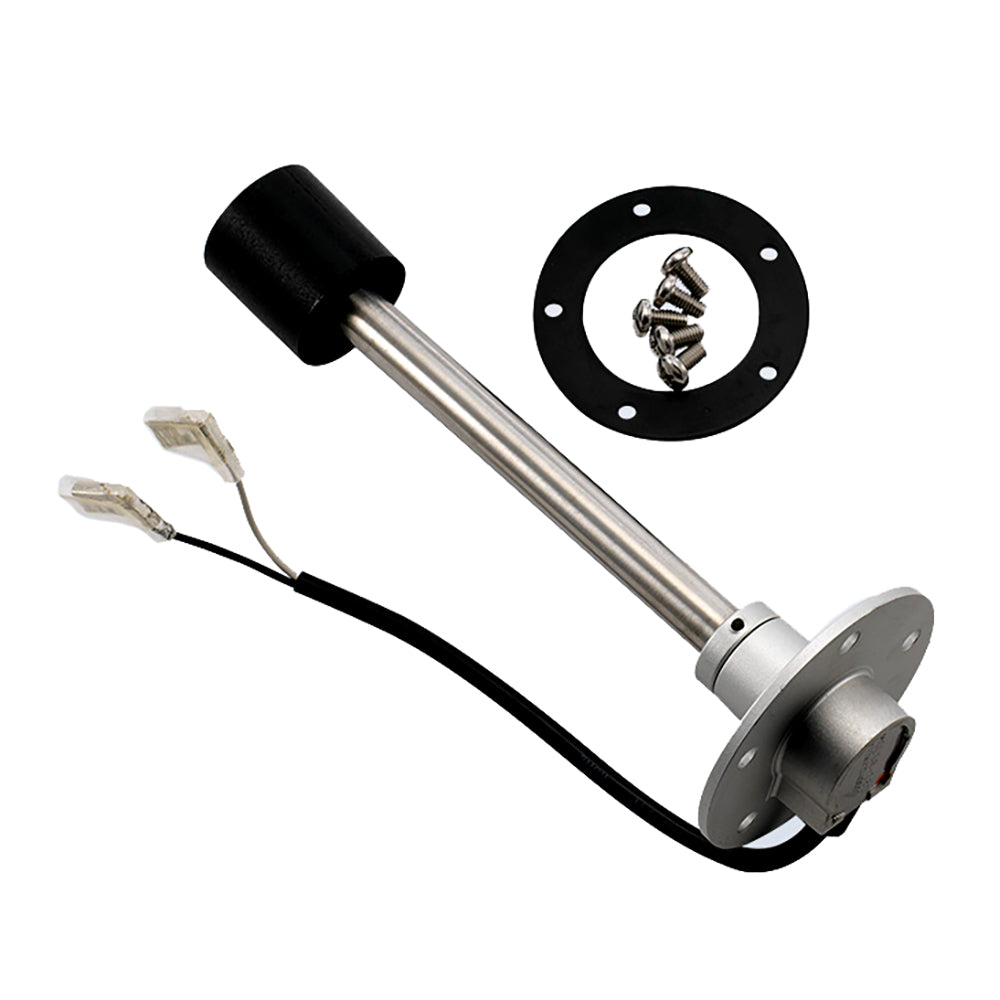

VDO Reed Switch Fuel Sender - 330 MM

The Reed Switch Fuel Sender - 330 MM is a cutting-edge solution designed specifically for marine and boating applications. Unlike traditional fuel senders that rely on moving parts, this floatless design ensures accurate and stable fuel level readings, even in rough waters.

Superior Design for Marine Use

Traditional aftermarket fuel senders often suffer from erratic pointer movements due to the rotating float arm and resistance cards they use. The Reed Switch Fuel Sender revolutionizes fuel measurement with its innovative floatless design, offering numerous advantages for boat owners:

• Tubular Design: Acts as a dampener to minimize gauge pointer fluctuations caused by fuel slosh.
• Compact Installation: Ideal for tanks with limited clearance, fitting seamlessly where conventional swing arms cannot.
• Durable Construction: Made from stainless steel to withstand the harsh marine environment.

Key Features

Feature	Description
Construction	Stainless steel for enhanced durability
Gasket	Ethanol-resistant Viton gasket ensures a reliable seal
Resistance Range	240-33 Ohm
Tank Compatibility	Fits tanks with a depth of 12.9" (330mm)
Connectors	Insulated 1/4" spade connectors for secure electrical connections
Mounting	Standard SAE 5-hole mounting flange included
Compatibility	Works with most standard marine fuel gauges
Grounding	Ground - Floating
Connection Type	Insulated .25" Spade

Easy Installation

The Reed Switch Fuel Sender is top-mounted and comes complete with a neoprene gasket and all necessary mounting hardware. Its standard SAE 5-hole flange ensures a hassle-free installation process, making it a perfect upgrade for your boat's fuel system.

Why Choose Reed Switch Fuel Sender?

By eliminating moving parts, the Reed Switch Fuel Sender offers a more reliable and maintenance-free solution compared to traditional fuel senders. Its robust construction and ethanol-resistant components make it ideal for the demanding conditions of marine environments.

Specifications

• Color: Silver
• Box Dimensions: 3"H x 3"W x 14"L
• Weight: 0.6 lbs
• UPC: 754059064420

Note: *Sold as an individual unit.
