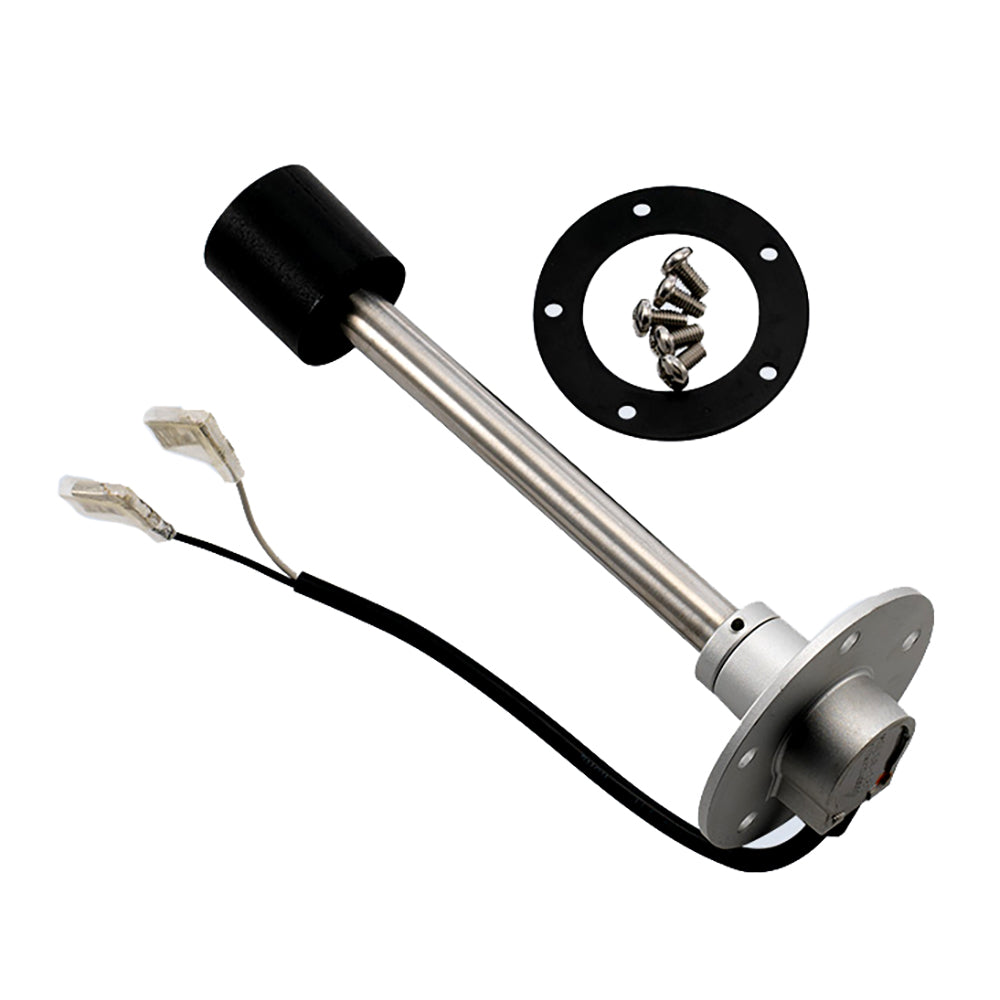

VDO Reed Switch Fuel Sender - 300 MM

Upgrade your marine vessel’s fuel monitoring system with the Reed Switch Fuel Sender - 300 MM, designed for precision and reliability in demanding marine environments. Its innovative floatless design ensures smooth and stable readings, eliminating the erratic movements commonly experienced with traditional fuel senders.

Innovative Floatless Design

Traditional fuel senders utilize a rotating float arm and resistance cards, which can result in erratic pointer movements due to fuel slosh and mechanical wear. The Reed Switch Fuel Sender revolutionizes this approach with a tubular structure that acts as a dampener, providing consistent and accurate fuel level readings even in rough waters. This design is perfect for tanks where conventional swing arms cannot fit due to clearance or space constraints.

Durable Construction for Marine Use

• Stainless Steel Construction: Ensures long-lasting performance and resistance to corrosion in marine environments.
• Ethanol Resistant Viton Gasket: Provides a secure seal, preventing fuel leaks and accommodating ethanol-blended fuels.
• Insulated 1/4" Spade Connectors: Guarantees safe and reliable electrical connections, minimizing the risk of short circuits.

Easy Installation

The Reed Switch Fuel Sender is designed for straightforward installation on most marine fuel tanks:

• Standard SAE 5-Hole Mounting Flange: Ensures compatibility with a wide range of marine fuel gauges and simplifies the installation process.
• Top Mounted: Ideal for tanks where side access is limited, providing a secure and stable mounting position.
• Complete Hardware Kit: Includes a neoprene gasket and all necessary mounting hardware, making setup quick and hassle-free.

Reliable Performance

Engineered to work seamlessly with most standard marine fuel gauges, the sender offers a resistance range of 240-33 Ohms, ensuring accurate fuel level readings. Its ground-floating configuration enhances electrical reliability, reducing the chances of inaccurate readings caused by electrical interference.

Key Features

• Stainless steel construction for enhanced durability
• Ethanol resistant Viton gasket for secure sealing
• Resistance range of 240-33 Ohms for precise measurements
• Fits tanks with a depth of 11.8" (300mm)
• Insulated 1/4" spade connectors for safe electrical connections
• Standard 5-hole mounting flange for easy installation
• Compatible with most standard marine fuel gauges
• Ground - Floating configuration for improved electrical reliability
• Connection via insulated .25" spade

Specifications

Feature	Details
Color	Silver
Tank Depth Compatibility	11.8 inches (300mm)
Resistance Range	240-33 Ohms
Connectors	Insulated 1/4" Spade
Mounting	Standard SAE 5-Hole Mounting Flange
Box Dimensions	3"H x 3"W x 14"L
Weight	0.7 lbs
UPC	754059064413

Note: *Sold as an Individual
