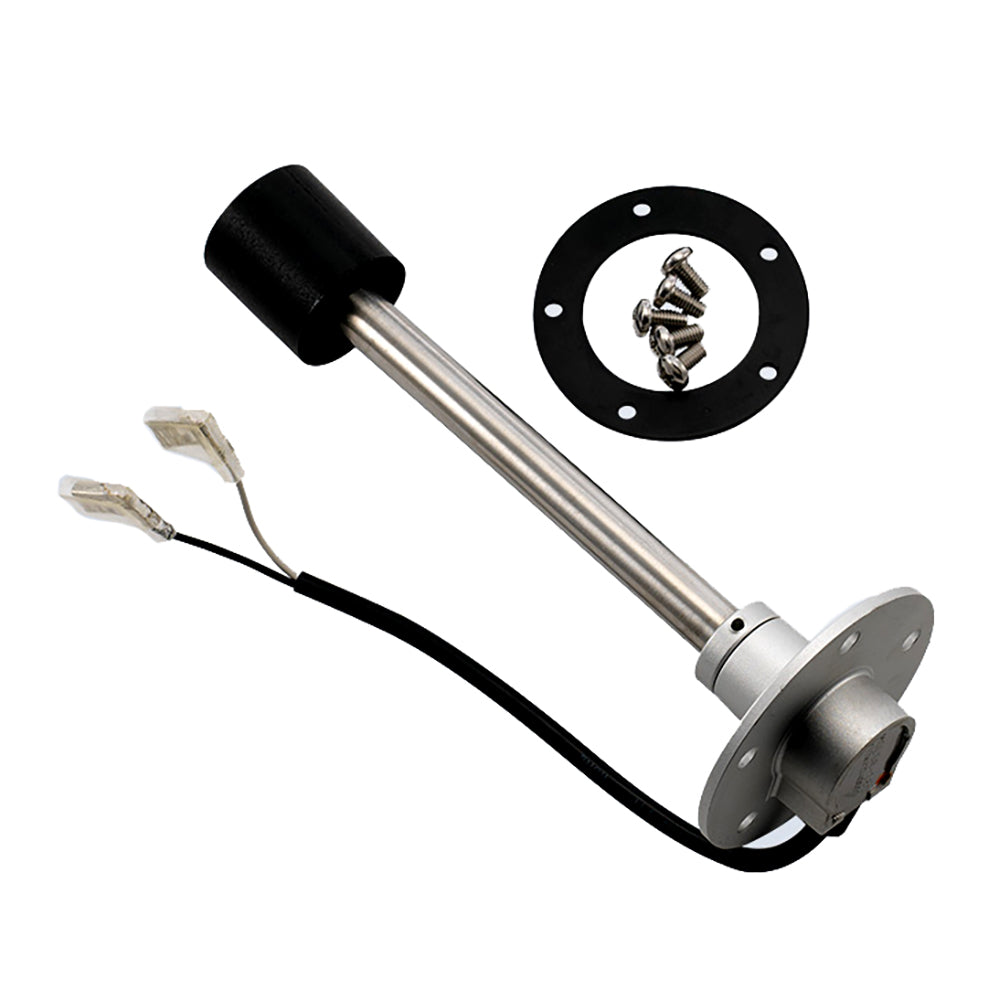

VDO Reed Switch Fuel Sender - 250mm

The Reed Switch Fuel Sender - 250mm is an advanced solution tailored for marine fuel monitoring, offering superior accuracy and reliability compared to traditional float-based senders. Its innovative floatless, tubular design minimizes pointer fluctuations caused by fuel sloshing, ensuring consistent fuel level readings even in rough waters.

Superior Design for Marine Applications

Traditional aftermarket fuel senders often rely on a rotating float arm and resistance cards, which can result in erratic gauge movements. The Reed Switch Fuel Sender eliminates these issues with its unique floatless mechanism, providing a stable and precise measurement system. This design is ideal for boats with limited tank clearance, where conventional swing arms may not fit.

Durable Construction and Easy Installation

Built from high-quality stainless steel, this fuel sender is designed to withstand harsh marine environments. The ethanol-resistant Viton gasket ensures a secure seal, even when using ethanol-blended fuels. Installation is straightforward with the standard SAE 5-hole mounting flange, neoprene gasket, and all necessary hardware included.

Key Features

• Stainless Steel Construction: Ensures durability and resistance to corrosion in marine settings.
• Ethanol Resistant Viton Gasket: Provides a reliable seal for long-lasting performance.
• 240-33 Ohm Range: Delivers accurate resistance measurements for precise fuel level readings.
• Fits 10" (250mm) Tank Depth: Compatible with standard marine fuel tanks.
• Insulated 1/4" Spade Connectors: Protects against moisture and ensures secure electrical connections.
• Standard 5-Hole Mounting Flange: Facilitates easy installation on most marine fuel tanks.
• Compatible with Most Marine Fuel Gauges: Offers versatile compatibility for various gauge systems.
• Ground - Floating: Enhances electrical reliability in marine environments.
• Connection - Insulated .25" Spade: Ensures safe and stable electrical connections.

Specifications

Color	Silver
Box Dimensions	3"H x 3"W x 14"L
Weight	0.7 lbs
UPC	754059064529

Note: *Sold as an Individual
