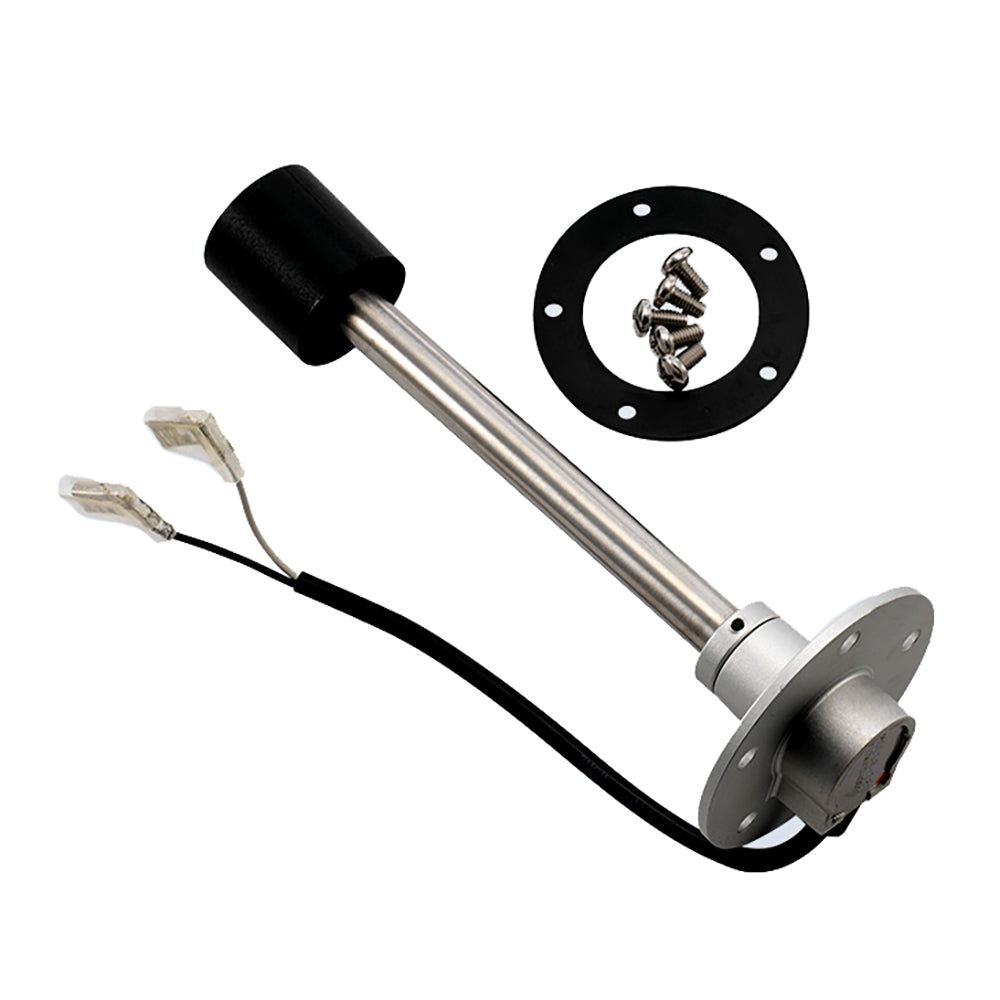

VDO Reed Switch Fuel Sender - 150 MM

Upgrade your marine fuel monitoring system with our Reed Switch Fuel Sender - 150 MM, specifically designed for reliable and accurate fuel level measurements in boating applications. Its innovative floatless design ensures smooth and stable gauge readings, even in rough waters, making it an essential component for any serious boater.

Product Overview

Traditional fuel senders with rotating float arms and resistance cards can cause erratic gauge movements due to fuel slosh and mechanical wear. Our Reed Switch Fuel Sender eliminates these issues with a cutting-edge tubular design that acts as a dampener, ensuring consistent and precise fuel level readings. This makes it perfect for installations where space is limited and conventional swing arms are impractical.

Key Features

• Stainless Steel Construction: Durable and corrosion-resistant, perfect for marine environments.
• Ethanol Resistant Viton Gasket: Ensures a secure and leak-proof seal, compatible with various fuel types.
• Wide Resistance Range: 240-33 Ohm range for accurate fuel level detection.
• Optimal Tank Compatibility: Fits tanks with a depth of 6" (150mm), ideal for most marine fuel tanks.
• Secure Connections: Insulated 1/4"" spade connectors prevent electrical issues.
• Standard Mounting: Features a 5-hole SAE mounting flange for easy installation.
• Universal Compatibility: Works seamlessly with most standard marine fuel gauges.
• Reliable Grounding: Ground - Floating ensures stable electrical performance.

Why Choose Our Reed Switch Fuel Sender?

Designed specifically for marine and boating applications, our fuel sender offers unmatched reliability and ease of installation. The floatless design not only reduces mechanical wear but also enhances the longevity of your fuel monitoring system. Additionally, the insulated connectors and stainless steel construction provide superior resistance to the harsh marine environment, ensuring your fuel readings remain accurate and consistent over time.

Specifications

Feature	Details
Color	Silver
Tank Depth Compatibility	6" (150mm)
Resistance Range	240-33 Ohm
Connectors	Insulated .25" Spade
Mounting	Standard 5-hole SAE Flange
Box Dimensions	3"H x 3"W x 10"L
Weight	0.6 lbs
UPC	754059064352

Installation Included

Each Reed Switch Fuel Sender comes complete with a neoprene gasket and all necessary mounting hardware, ensuring a hassle-free installation process. The standard SAE 5-hole mounting flange allows for quick and secure attachment to your fuel tank, providing a stable setup that minimizes vibrations and movement.

Safety Information

WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

*Sold Individually
