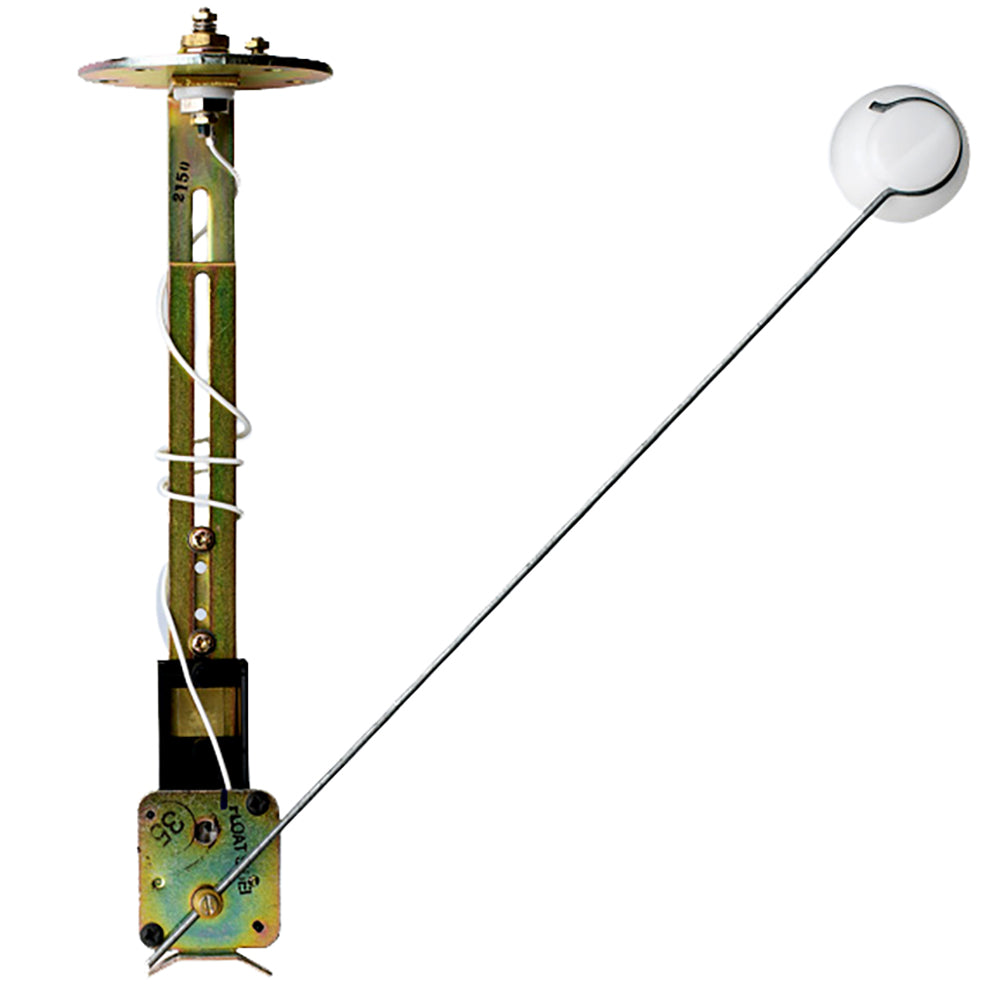

VDO ALAS Adjustable Fuel Sender - 6-3/4 to 23" - 240-33 Ohm

The ALAS Adjustable Fuel Sender is a robust and reliable solution designed specifically for marine applications. Engineered to withstand the demanding conditions of marine environments, this fuel sender ensures accurate fuel level readings and long-lasting performance for your boat.

Durable Construction for Marine Use

The VDO ALAS 12/24 V adjustable swingarm senders are built for severe-duty use on the water. The sender's main body is constructed from plated steel, providing enhanced protection against damage caused by fuel slosh and the harsh marine environment.

Adjustable and Versatile Design

These fuel senders feature an SAE standard 5-hole metal mounting flange and robust body components. They offer adjustable tank depth from 6 inches to 23 inches, making them adaptable to a wide range of tank sizes and configurations commonly found in boats. Additionally, the design accommodates both right and left-hand swingarms, providing flexibility during installation.

Enhanced Durability Features

To ensure longevity and consistent performance, the ALAS Adjustable Fuel Sender includes several protective features:

• Shielded Wiper and Resistor: Protects critical components from fuel slosh.
• Float Arm Stops: Maintain constant contact between the wiper and resistor board, ensuring accurate readings whether the tank is full or low.

Technical Specifications

Feature	Details
Adjustment Range	6-3/4 to 23 inches tank depth
Resistance	240-33 Ohm
Voltage	6-24V
Connection	M4 Stud
Color	Gold
Box Dimensions	4"H x 4"W x 19"L
Weight	1.2 lbs
UPC	754059001043

Product Details

• Connection Type: M4 Stud
• Operating Voltage: 6-24V
• Sold As: Individual unit
