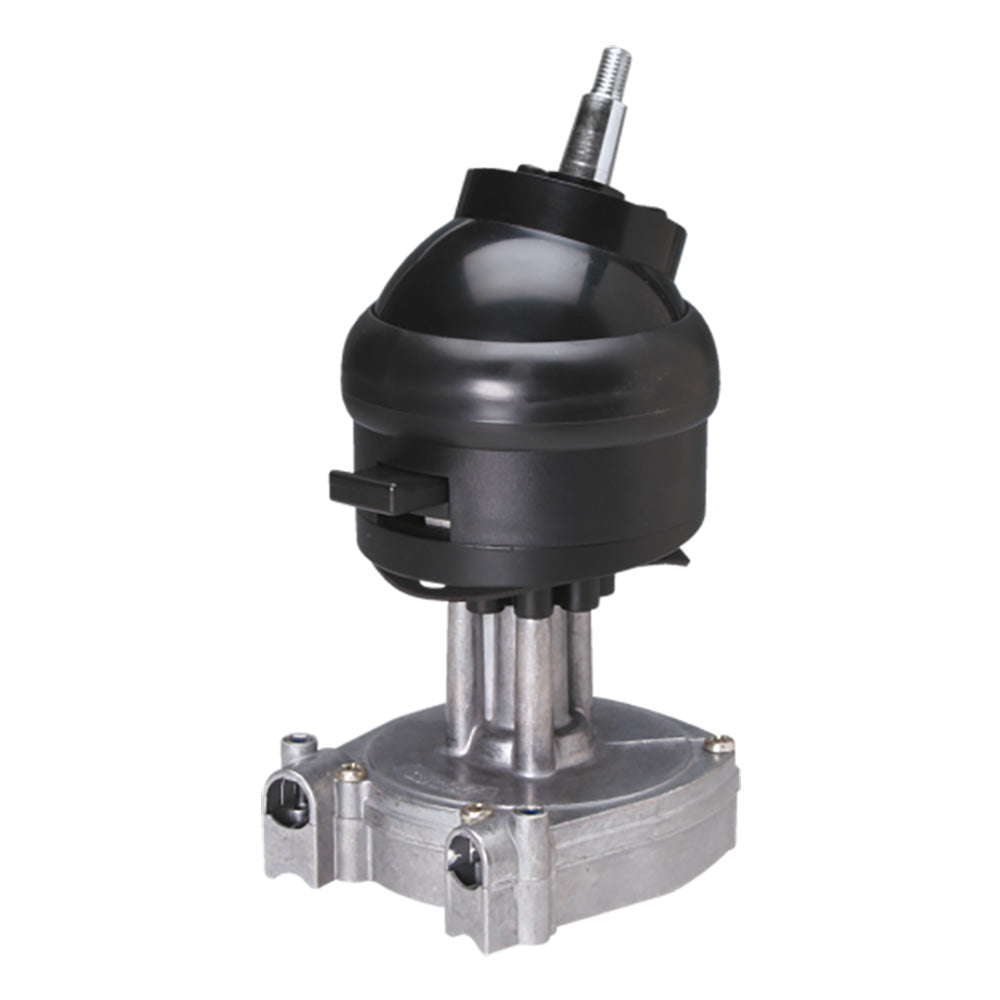

Uflex T83FC Zero Torq Rotary Helm Single Cable Steering *Tilt Mechanism Sold Separately

The T83FC Zero Torque Rotary Helm Single Cable Steering system delivers exceptional performance and reliability for your marine vessel. Designed with a planetary gear mechanism, it offers a 48° tilt range and five secure locking positions, ensuring precise control and stability on the water.

Key Features

• Compatible with X52 Tilt Mechanism (sold separately)
• Adjustable tilt range of 48° with five locking positions
• Quick-connect design for fast and straightforward installation
• Planetary gear system minimizes under-dash movement for enhanced stability
• Standard 3/4” stainless steel tapered shaft for durability
• All stainless steel cable output ends ensure corrosion resistance
• Constructed with corrosion-resistant materials for longevity in marine environments
• Compatible with Ultraflex tilt mount rotary and rack and pinion steering helms, as well as Ultraflex tilt mount hydraulic pumps (excluding SilverSteer™ and MasterDrive™ systems)
• Recommended for boats exceeding 50 mph to use hydraulic steering systems
• Optional steering wheel available for enhanced control
• Includes engine connection kits for versatile installation
• Exceeds EN 28848 and ABYC P17 safety standards for superior safety and performance

Specifications

Specification	Details
Steering Cable Stroke	228 mm (9")
Lock-to-Lock Steering Wheel Turns	Approx. 3.8
Maximum Dash Depth	25.4 mm (1")
Maximum Steering Wheel Diameter	406 mm (16")
Minimum Steering Cable Bend Radius	200 mm (7.9")

Compatibility

The T83FC steering system is compatible with Ultraflex tilt mount rotary and rack and pinion steering helms, as well as Ultraflex tilt mount hydraulic pumps, excluding SilverSteer™ and MasterDrive™ steering systems. Please ensure your boat's engine does not exceed the maximum horsepower rating specified for the T83NRFC steering system.

Installation

Installation of the T83FC steering system is quick and straightforward thanks to its fast-connect design. The planetary gear mechanism allows for easy setup, while the standard 3/4” tapered shaft and stainless steel components ensure a secure and durable fit. For optimal performance, pair with the X52 Tilt Mechanism (sold separately).

Safety Standards

Our T83FC steering system not only provides exceptional functionality but also meets and exceeds EN 28848 and ABYC P17 safety standards, ensuring reliable and safe operation for your marine adventures.

Note: The tilt mechanism is sold separately.
